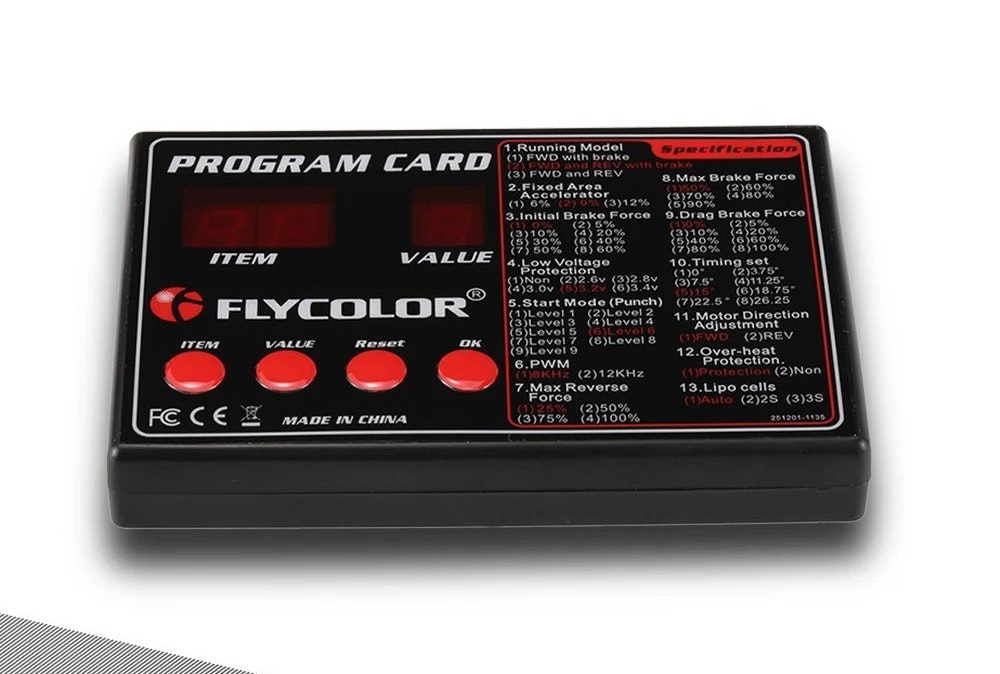

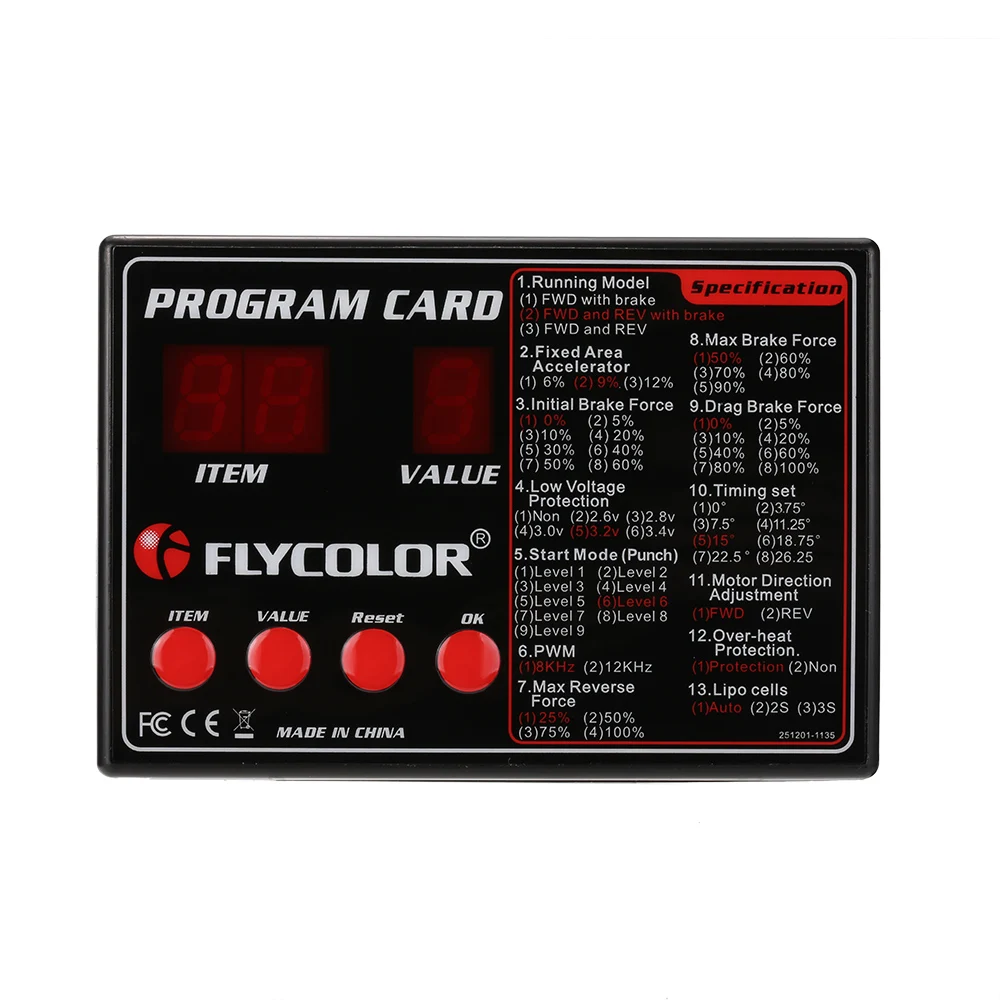

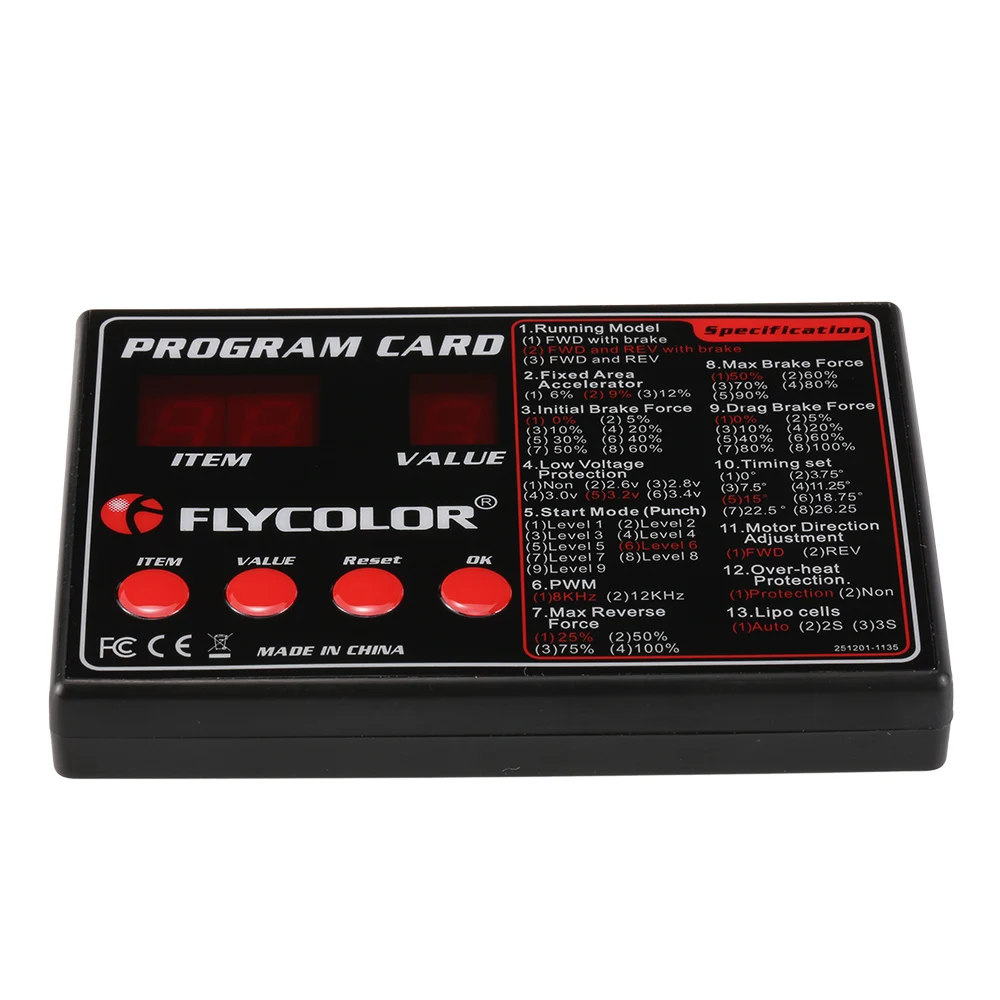

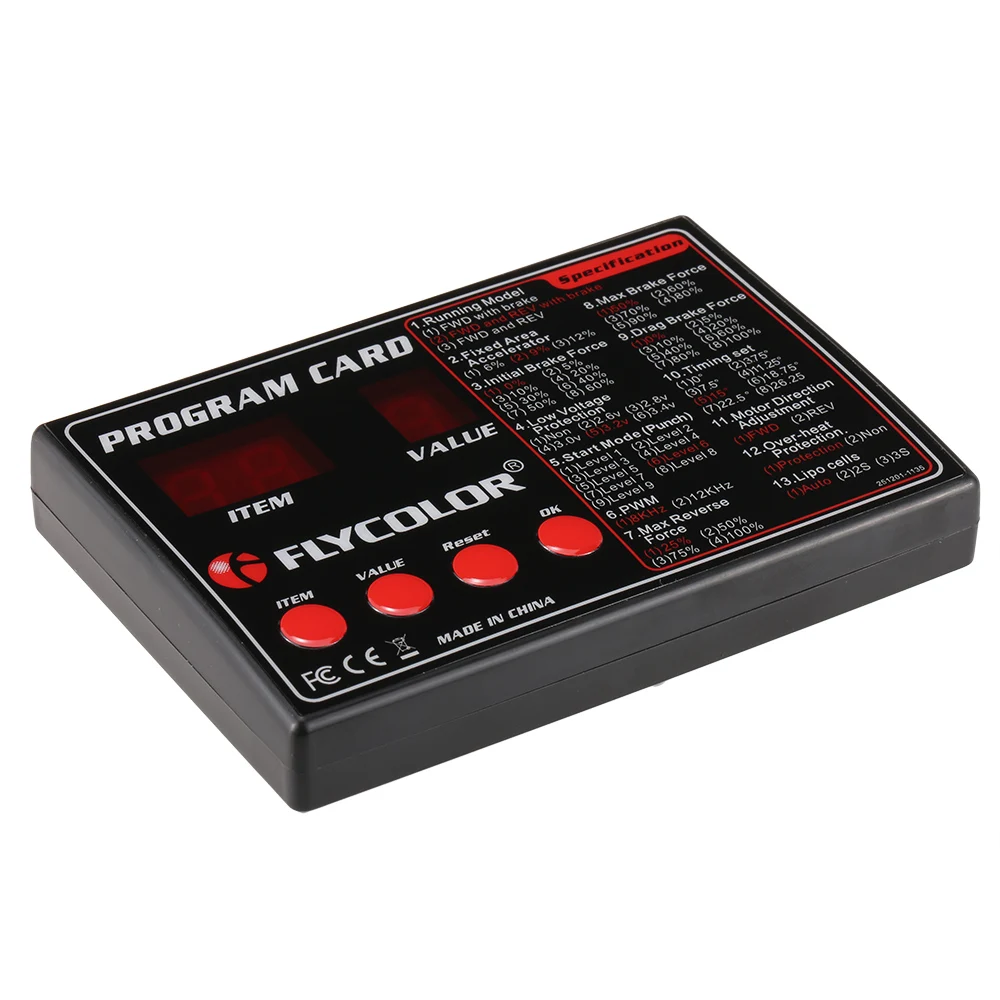

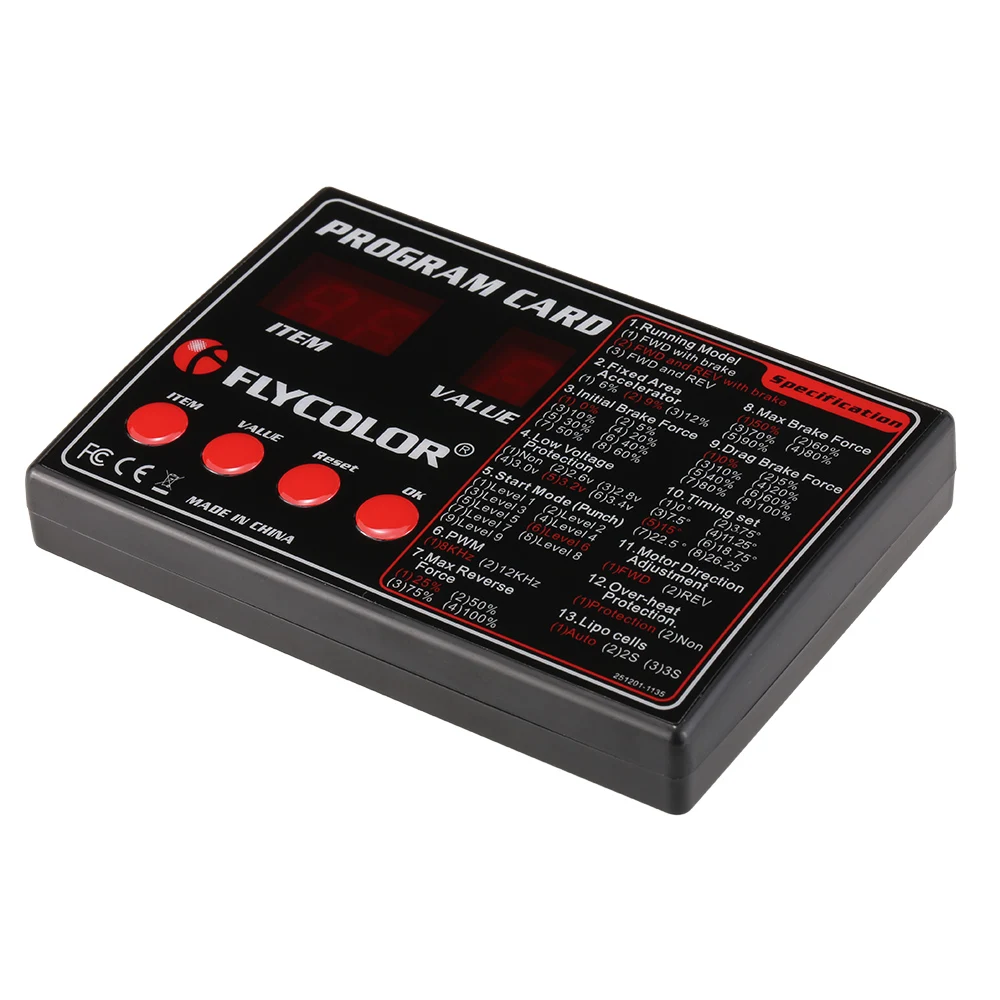

Flycolor ESC programmeringskort

Running mode: FWD with brake / FWD and REV with brake / FWD and REV
Fixed area accelerator: 6% / 9% / 12%
Initial brake force: 0% / 5% / 10% / 20% / 30% / 40% / 50% / 60%
Low voltage protection: Non / 2.6V / 2.8V / 3.0V / 3.2V / 3.4V
Start mode (punch): Level 1 / Level 2 / Level 3 / Level 4 / Level 5 / Level 6 / Level 7 / Level 8 / Level 9
PWM: 8KHz / 12KHz
Max reverse force: 25% / 50% / 75% / 100%
Max brake force: 50% / 60% / 70% / 80% / 90%
Drag brake force: 0% / 5% / 10% / 20% / 40% / 60% / 80% / 100%
Timing set: 0° / 3.75° / 7.5° / 11.25° / 15° / 18.75° / 22.5° / 26.25°
Motor direction adj.: FWD / REV
Over-heart protection: Protection / Non
Lipo cells: Auto / 2S / 3S
Item dimensions: 9

 Programmeringskort for alle Flycolor ESC fartsregulatorer.
