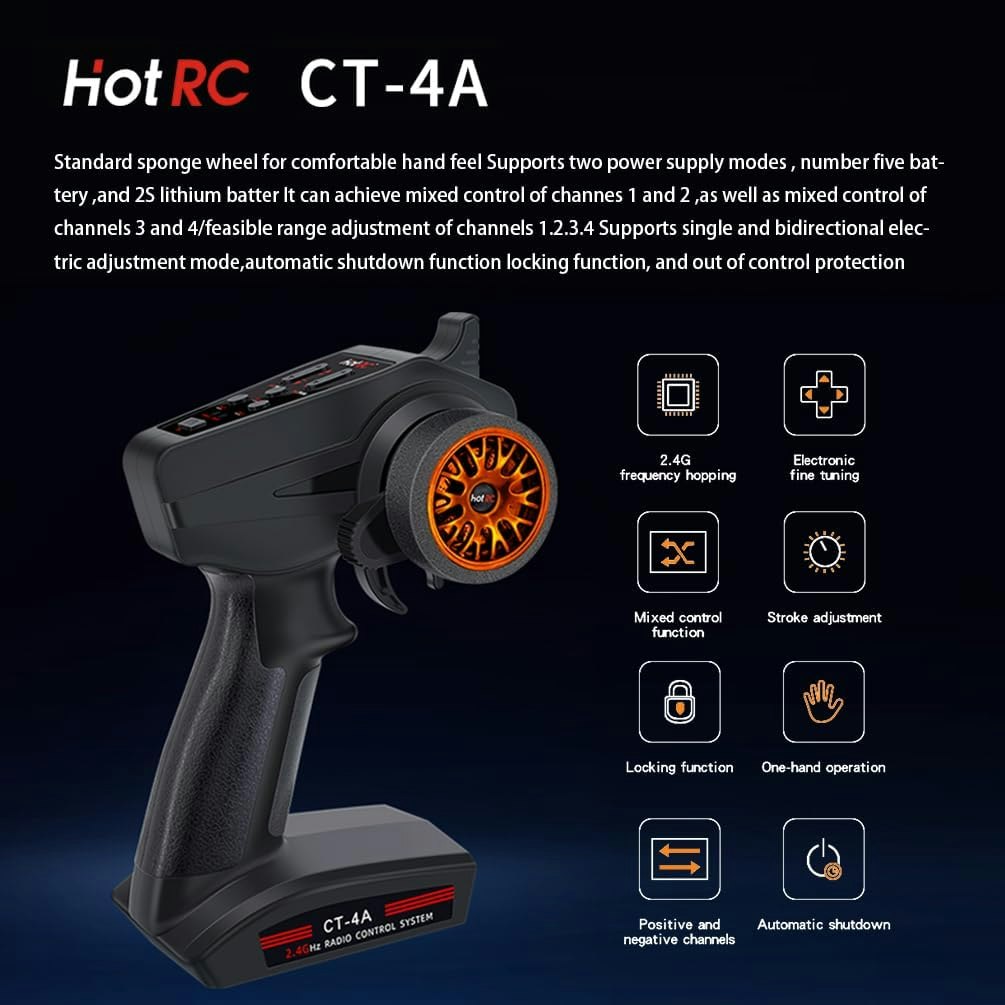

CT-4A 2.4G 4CH FHSS pistolstyring for bil, båt,tank

Model type :             CT-4A rattradio
Weight:                     195 gram
Model Type:              Car/Boat/Tank
Channels:                  4 Channel
Gyro:                          Yes
RF Range:                  2.4Ghz ISM
RF power:                  <100mW
Modulation:              GFSK
Spread spectrum:    FHSS
Reaction speed:       PWM:≤20ms
Control distance:    400-500 meter
Receive sensitivity: <-97dbm
TX voltage:               DC 4 - 9 volt
RX voltage:               DC 4 - 9 volt
Certificate :              CE0678 FCCID


Meget bra, rimelig og flott anatomisk utformet radio. Ligger ekstremt godt i hånden og er enkel å betjene. Stabiliseringsgyroen kan slåes av eller på. Den er også utstyrt med fire servoreverseringsbrytere i fronten. Radioen er dermed meget enkel å bruke og krever ingen programmering. Alt man normalt trenger, både på små og store modeller, er oversiktlig plassert i fronten.

Features:

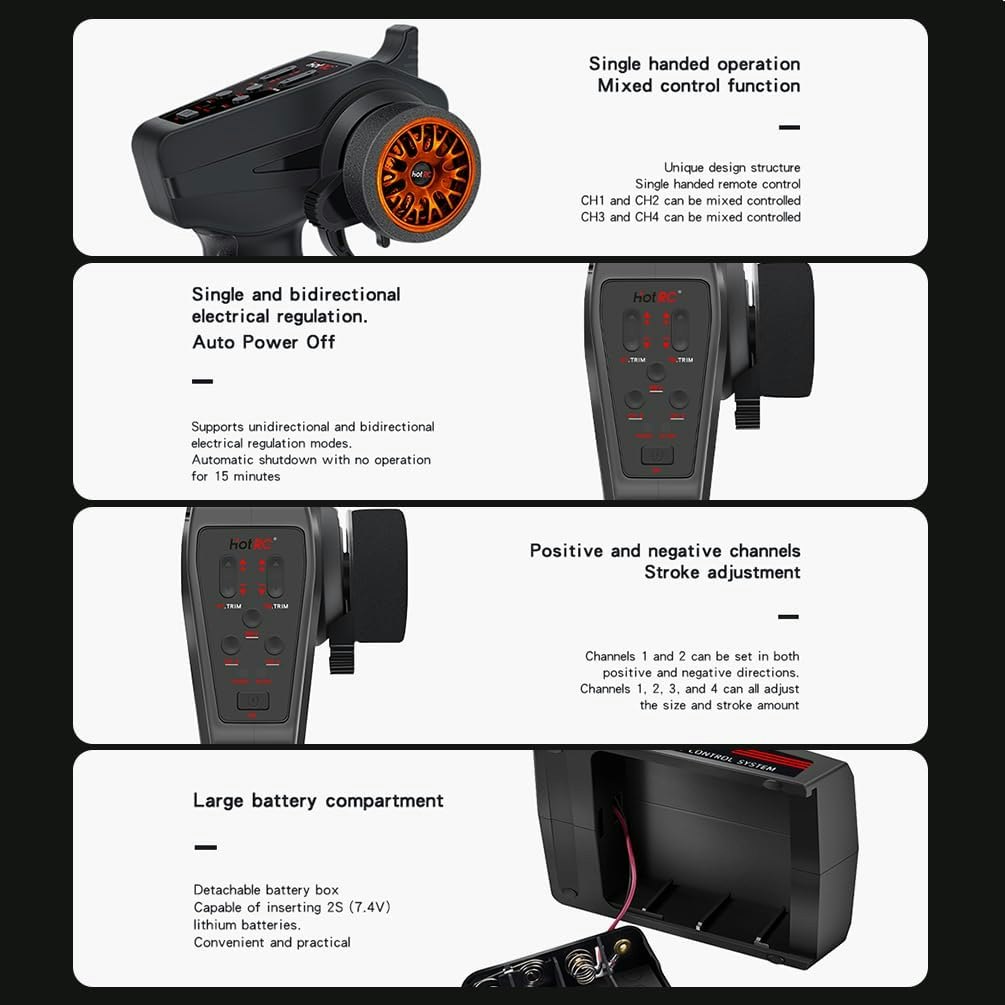

Integrated design One-handed Control

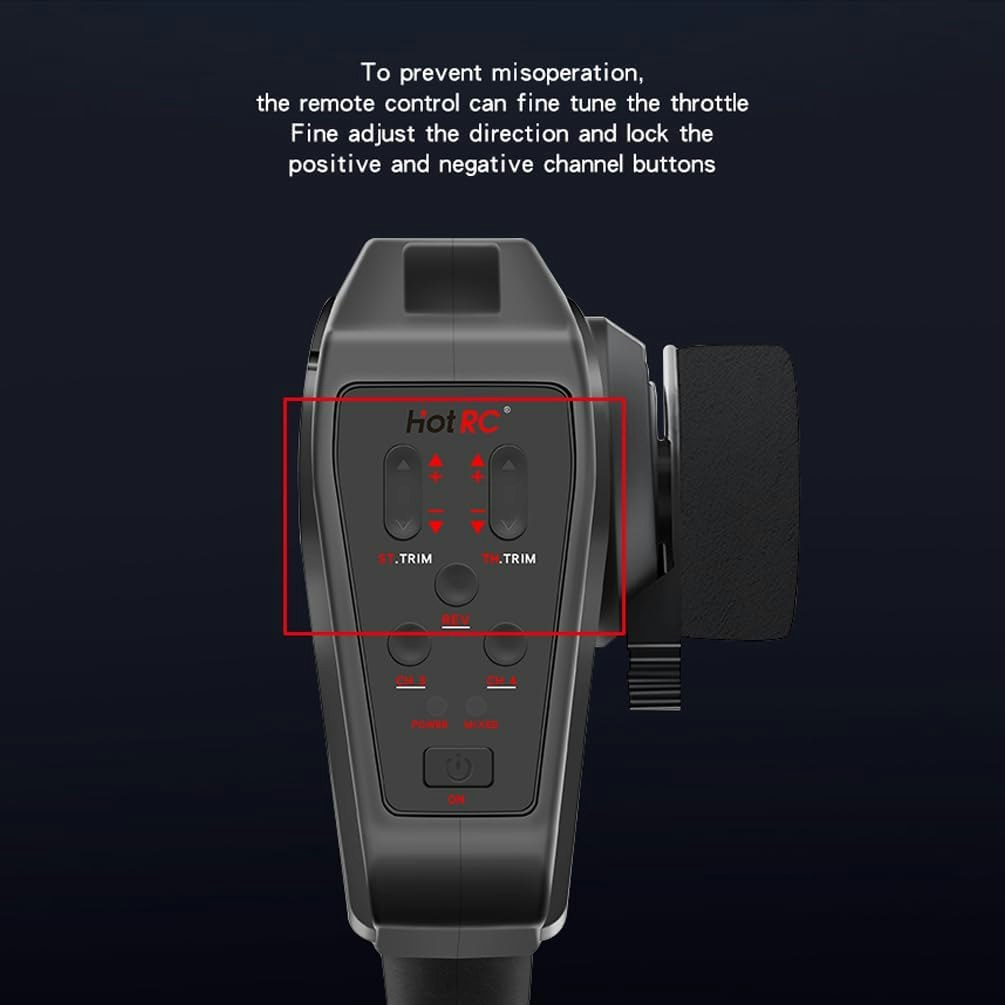

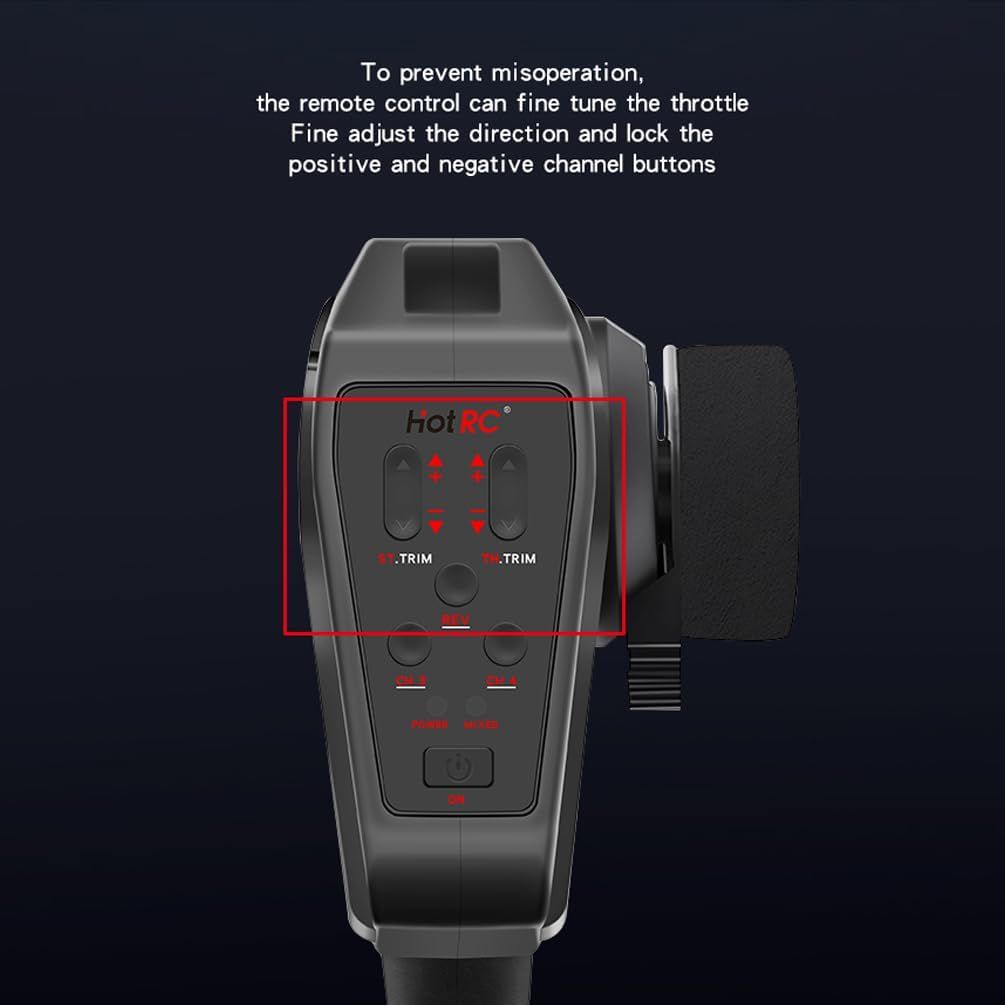

Can be set to runaway protection, 1-2CH can be set to mix control mode, fine-tuning button can be set to lock
2.4G spread frequency, stable signal
Only use FHSS frequency hopping algorithm, multiple people can operate in the same place at the same time without interference, and the ground remote control distance is stable 400 meters
Fine craftsmanship
Standard sponge wheel, exquisite electroplating of the hand wheel, high-grade PVC panel, every detail is finely processed
Ergonomics
Comfortable silicone strips on both sides, exquisite leather pattern design, comfortable hand feel, not easy to sweat
Large battery compartment
Innovative detachable battery box, can be directly inserted into the 2S lithium battery balance port, convenient and practical

Binding og bruk: Brukerveiledning

After the calibration is completed, the flight control status indicator (FC) is on, and the calibration is completed.
④: Use process: In the later use process, no operation is required to replace the battery and reuse it;
When changing the position of the receiver, you need to follow the calibration procedure again and recalibrate.
⑤: 5 channels (SWA) hit the top: flight control-manual mode.
5 channels (SWA) hit the bottom: flight control-self-stabilization mode
⑥: ° Flight control receiver with mixed control mode, you need to turn the mixed control switch to the middle position.
RF: remote control status indicator
The light will appear in three states, always on: the signal is good:
Regular flashing: indicates no signal;
Irregular flashing: the signal is weak.
FC: Flight control status indicator
The lamp will appear in two states: steady light: calibration completed;
Blinking: calibrating.

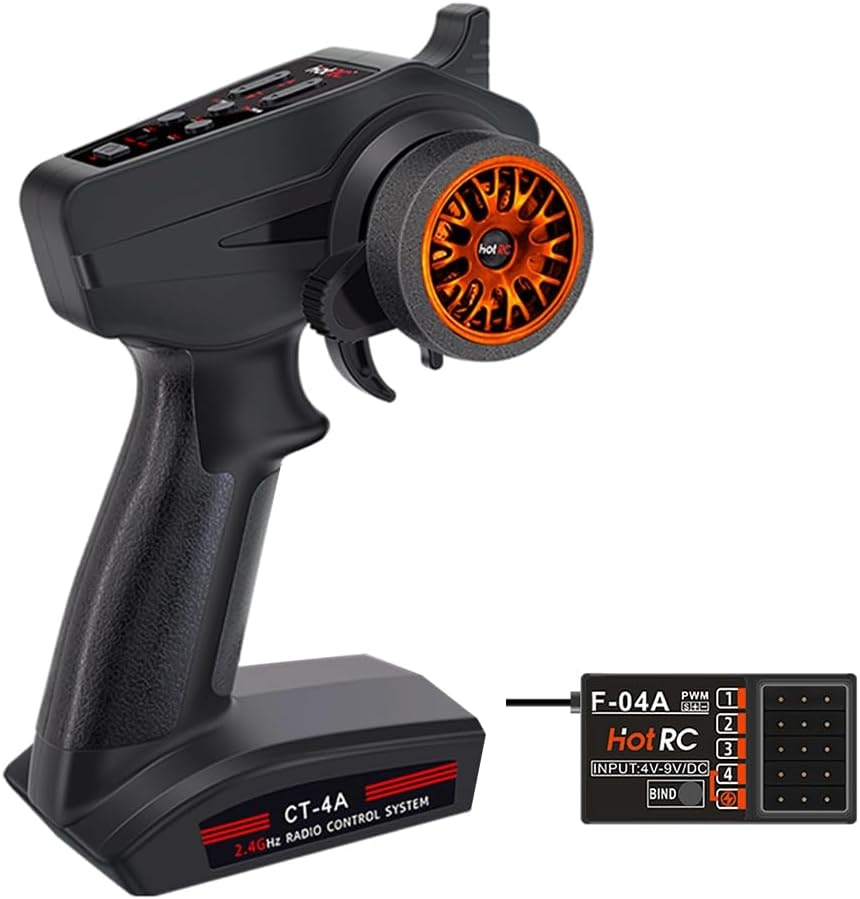

Pakcage Included:
1x Controller
1x Receiver
1x Bind plug
1x Quick start guide
