IMAX B6AC + 80 watt AC/DC Charger 1-6 Cells LiPo, LiIon, LiFe, NiMh, NiCad, Pb

Specifications:

AC input:                   240 volt AC.
DC input:                  11-18 volt DC
Charge power:        80 watt
Discharge power:   5 watt
Charge current:       0.1-6.0 ampere.
Discharge current:  0.1-2.0 ampere
Current balancing : 300 mA/cell.
Balance tolerance:  +/- 0,01 volt
NiCd/NiMH:                1-15cells.
Li-ion/Polymer:        1-6cells.
Pb battery voltage:  2-24 volt.
Net weight:                  246 gram
Dimension:                  135x144x36mm

Original ny utgave IMAX B6 V2 6A 60W Balance Charger Discharger for NiMH NiCD LiHV NiCd PB, også for DJI Mavic/Inspire Batterier.
Komplett med tilkobling for både 220 volt AC og 12 - 18 volt DC.

Vær obs på at tilsvarende lader tilbyes på div utenlandske nettsteder med falske bilder. Bildene viser denne laderen med 220 volt AC og 12-15 volt DC tilkobling. Men leser man annonseteksten nøye så oppdager man at laderen som selges ikke har tilkobling for 220 volt DC. Dvs ikke nettkobling. Kun tilkobling for 12-18 volts adapter som må kjøpes i tillegg. De som har 220 volt tilkobling er ofte utstyrt med kun 50 watt strømadapter, noe som gjør at de lettere ryker, og kan heller ikke lade mer enn 5 ampere.

Description

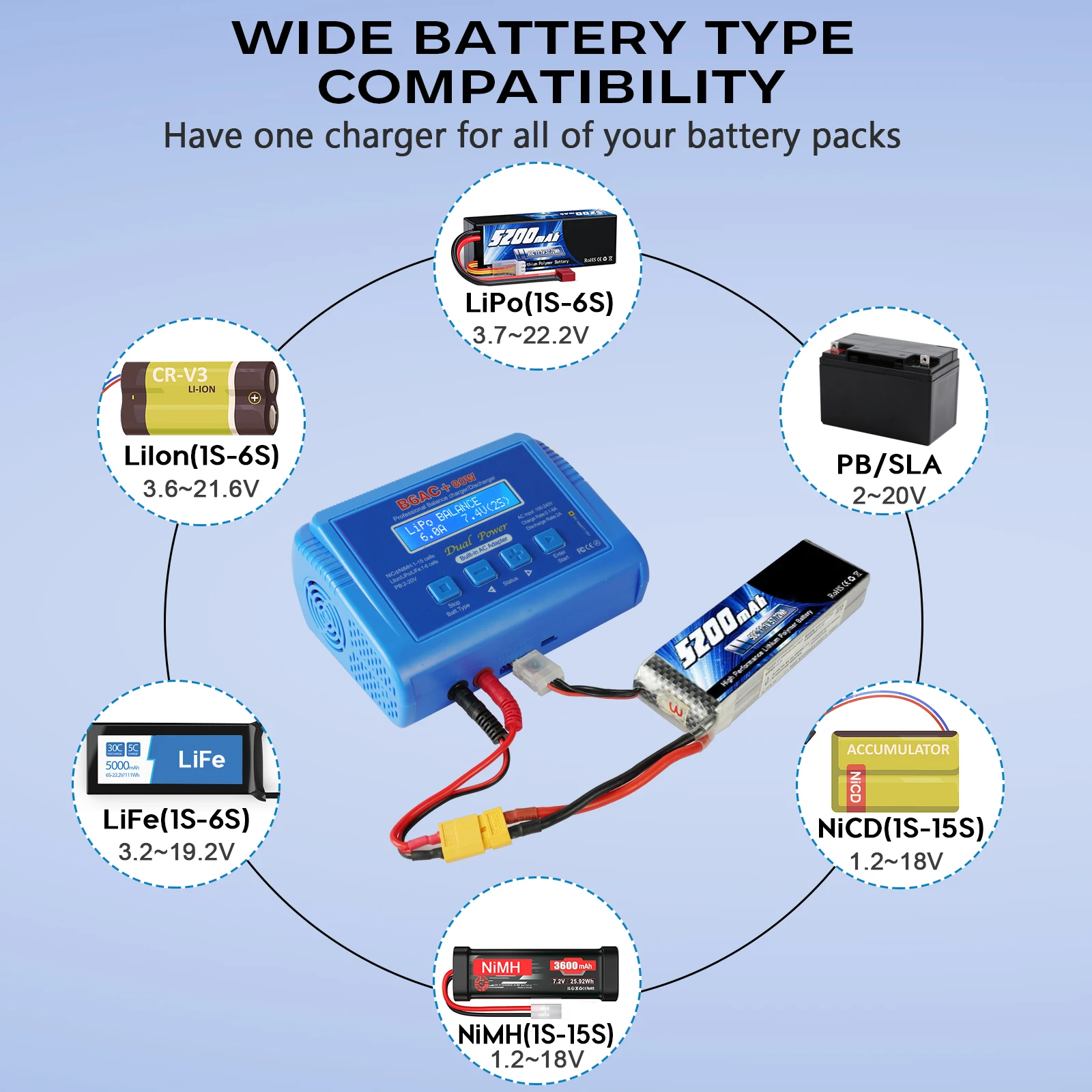

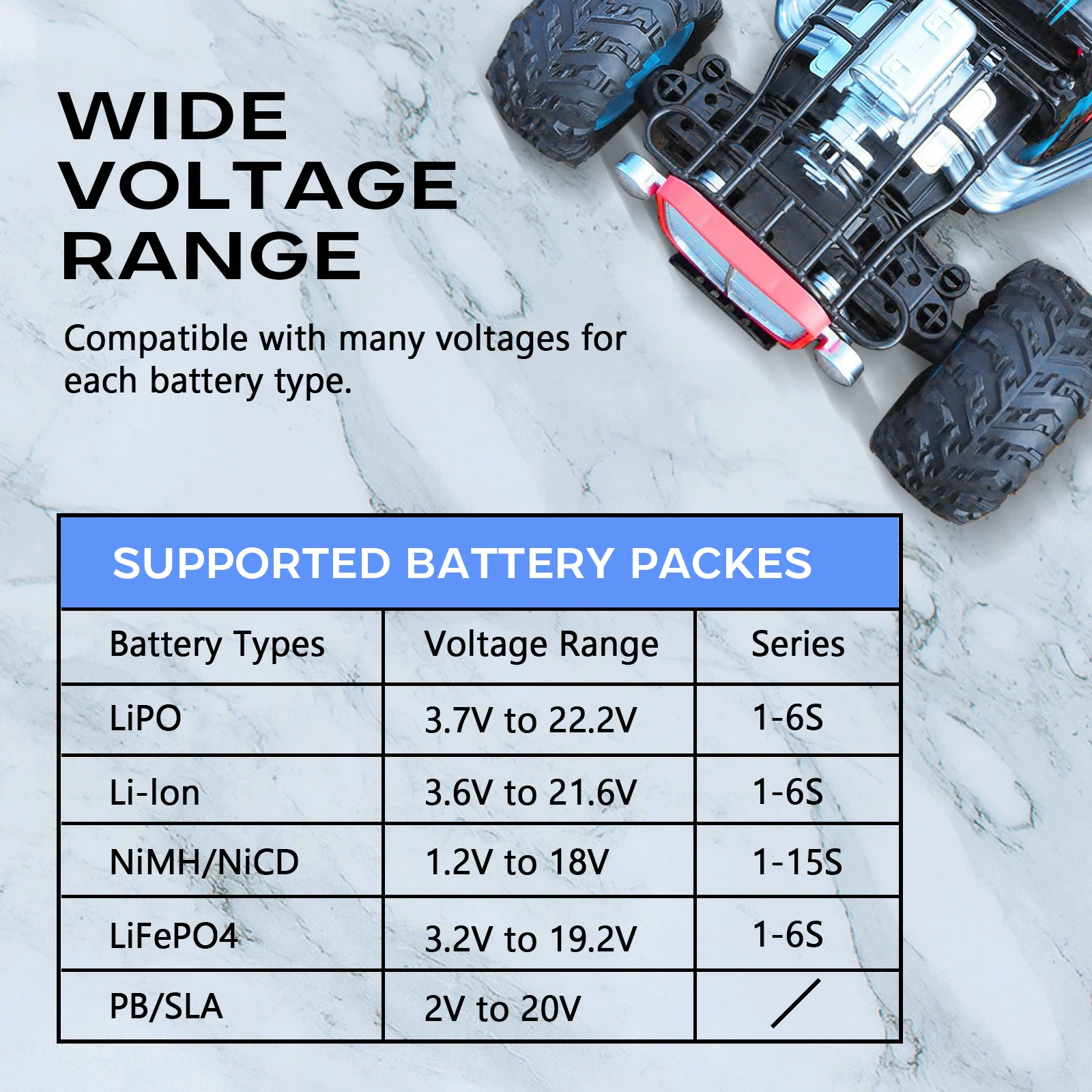

【 Wide Battery Type Comparability】80W 6A balance Li-Po charger can charge and discharge a variety of batteries such as 1.2V-18V NiMH/NiCD batteries (1-15 Cells), 3.7V-22.2V LiPo/Li-ion batteries (1-6 Cells), 3.2V-19.2V LiFePO4 batteries (1-6 Cells), and 2V-20V SLA batteries.

【Multiple Functions】Lipo Battery charger is built in an independent Lithium Battery Balancer to monitor and balance each battery cell, and it has Fast & Storage Charging function, Data Storage & Load function, Cyclic Charging & Discharging function.

【High Quality & Safe】Using superior chip and materials to deliver quality performance, and the charger is designed with Reverse Polarity Protection, Short Circuit Protection, Over-Charge Protection, Over-Current Protection and Over-Temperature Protection for safety.

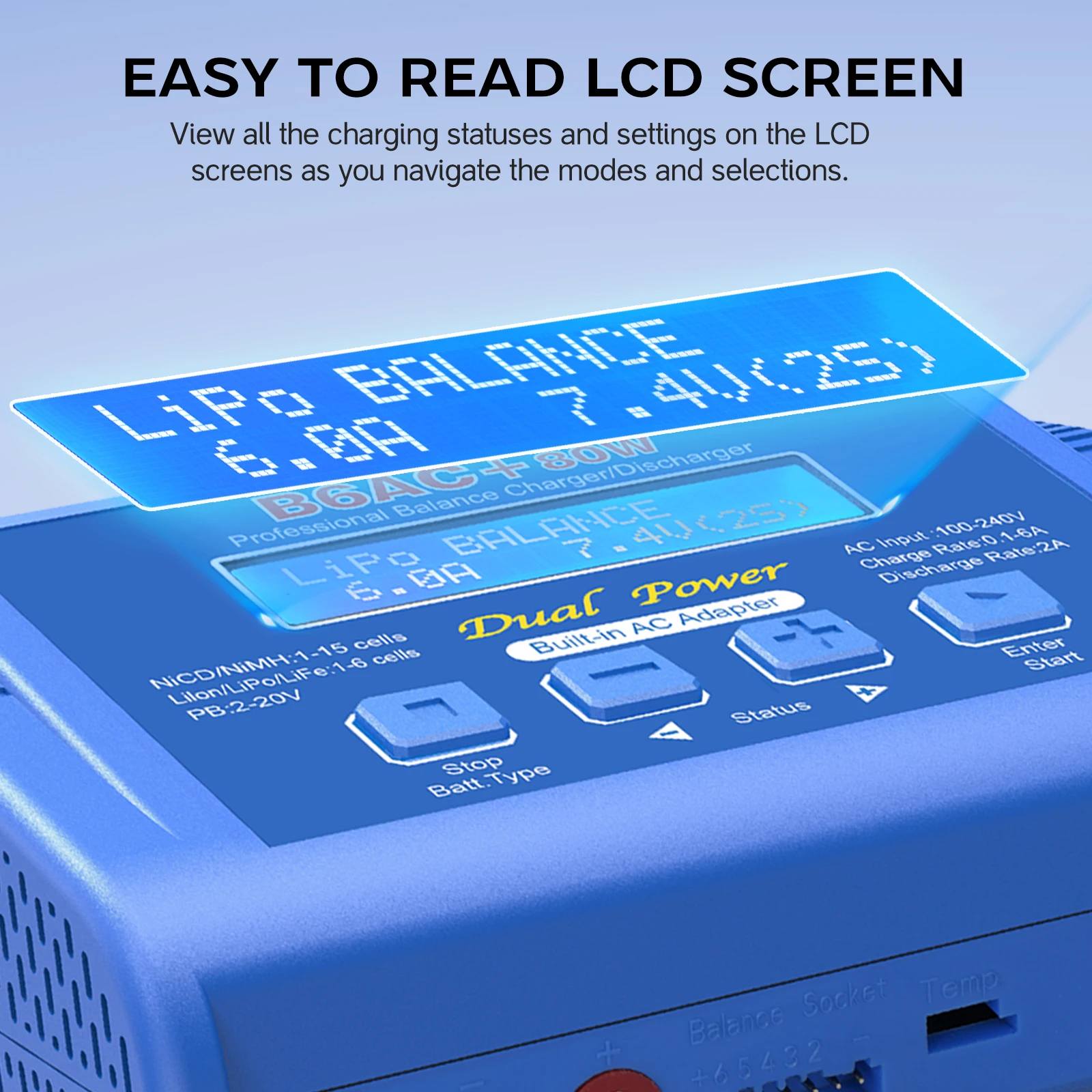

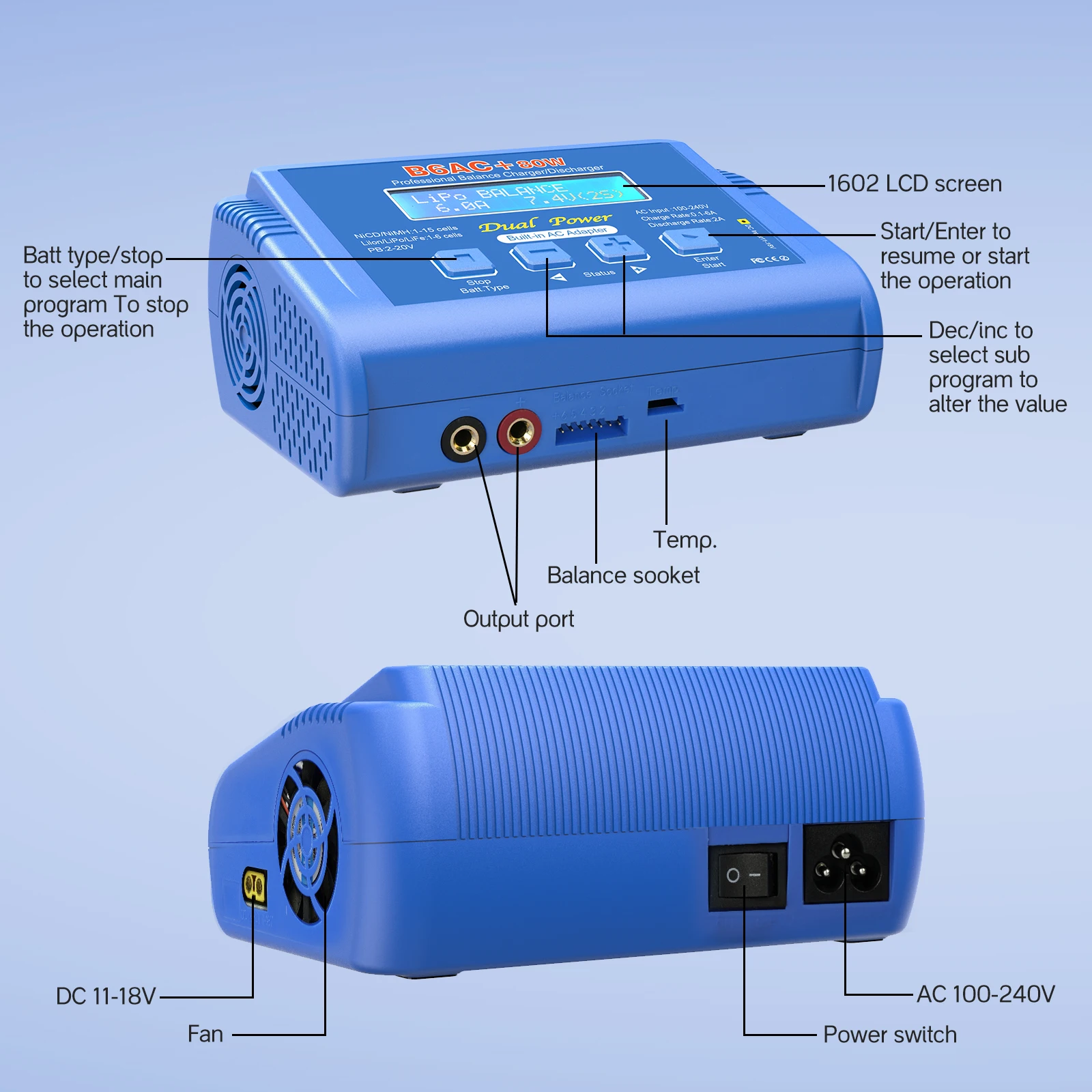

【Easy to Operate】View all charging statuses and settings on the Electronic Balance Charger LCD screen as you navigate the modes and selections. Press the "Batt.Type" button to the user settings or select battery type or exit the program, press the "Start" button twice to the parameters setting, press the "Dec." or "Inc." button to switch-over, press and hold the "Start" button to charge battery.

Safety for charger
1, Automatic limitation of charging current, It would be stoping charging when it is up to max current
2, Limitation charging time, It could be prevented battery damage when battery is charging over time
3, Input current control, It could monitor and protect battery.
4, Limitation temperature, It could stoping working according setting max temperature
5, Charging datat saving. It could be saving 5 different battery charging data

Specifications
Input voltage range:
DC: 11~18 V
AC: 100~240 V
Charge current range: 0.1~6.0A
Discharge current range: 0.1~2.0A
Charge power limited: max.80W
Disharge power limited: max.10W
Balance current: max.300mA
Balance tolerance:±0.01V
Nicd/NiMH battery cell count:1~18cells
Lithium battery types:Lipo,Li-ion,Li-Fe
Lithium battery cell count:1~6 series
Pb battery voltage:2-24V
No. of cycles: 1 to 5 times
Battery data memory: up to 5 data
Weight: 246g
Dimensions: 130 x 85 x 33 mm

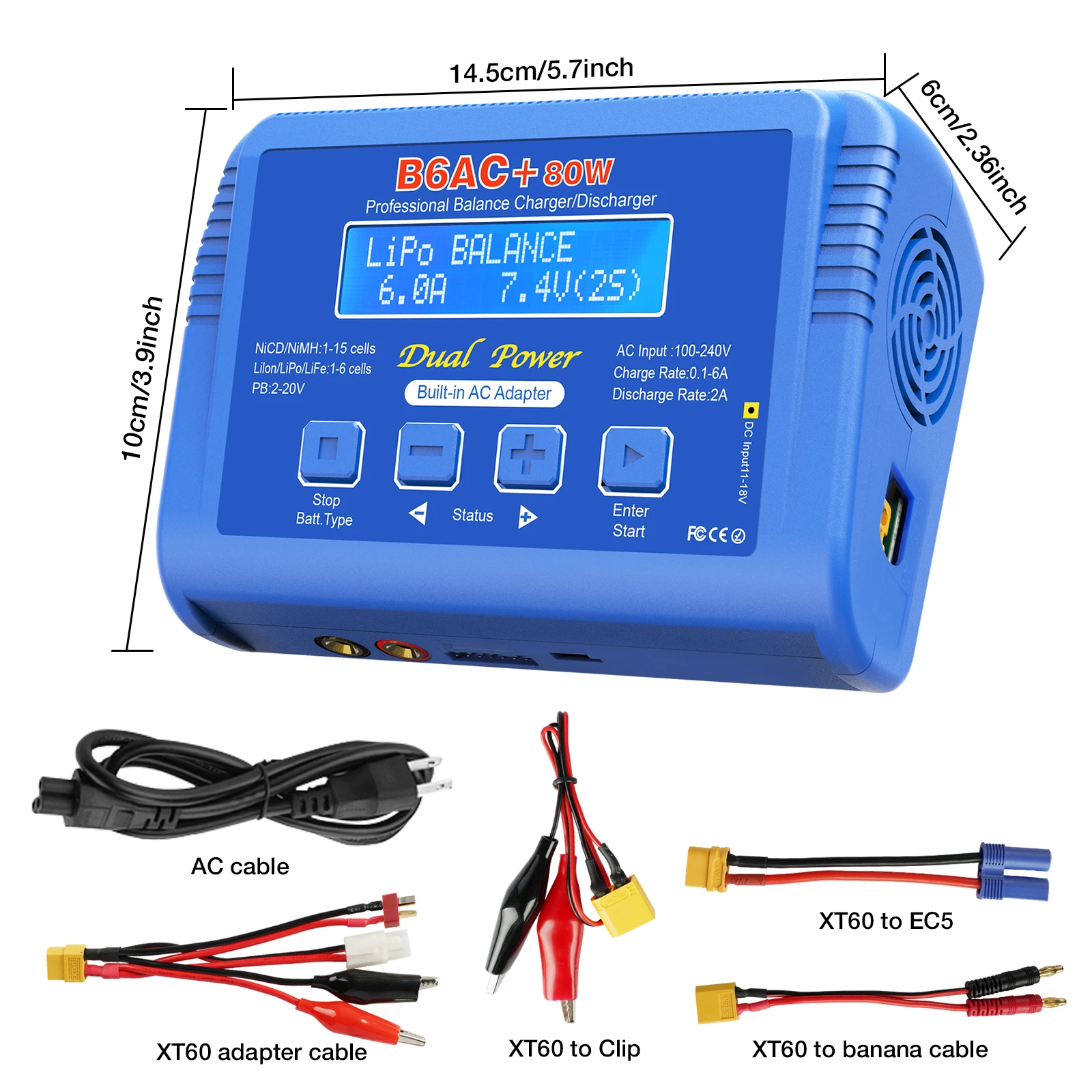

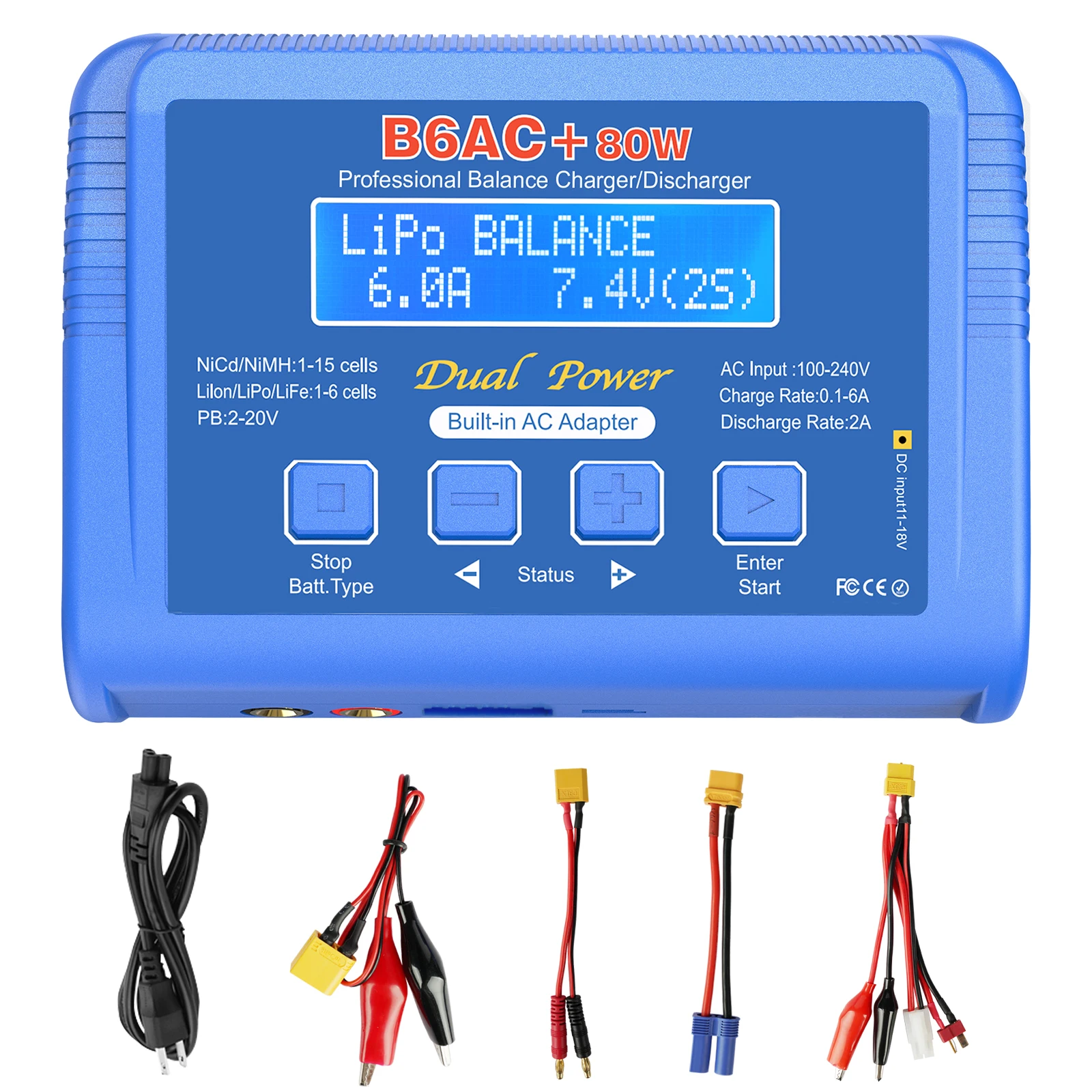

Package Contains:
1 x B6AC LiPo Battery Balance Charger
1 x T Plug Discharge Cable
1 x Alligator Clip Power Cable
4 x Charge Converter Cable
1 x English User Manual
1 x AC power supply

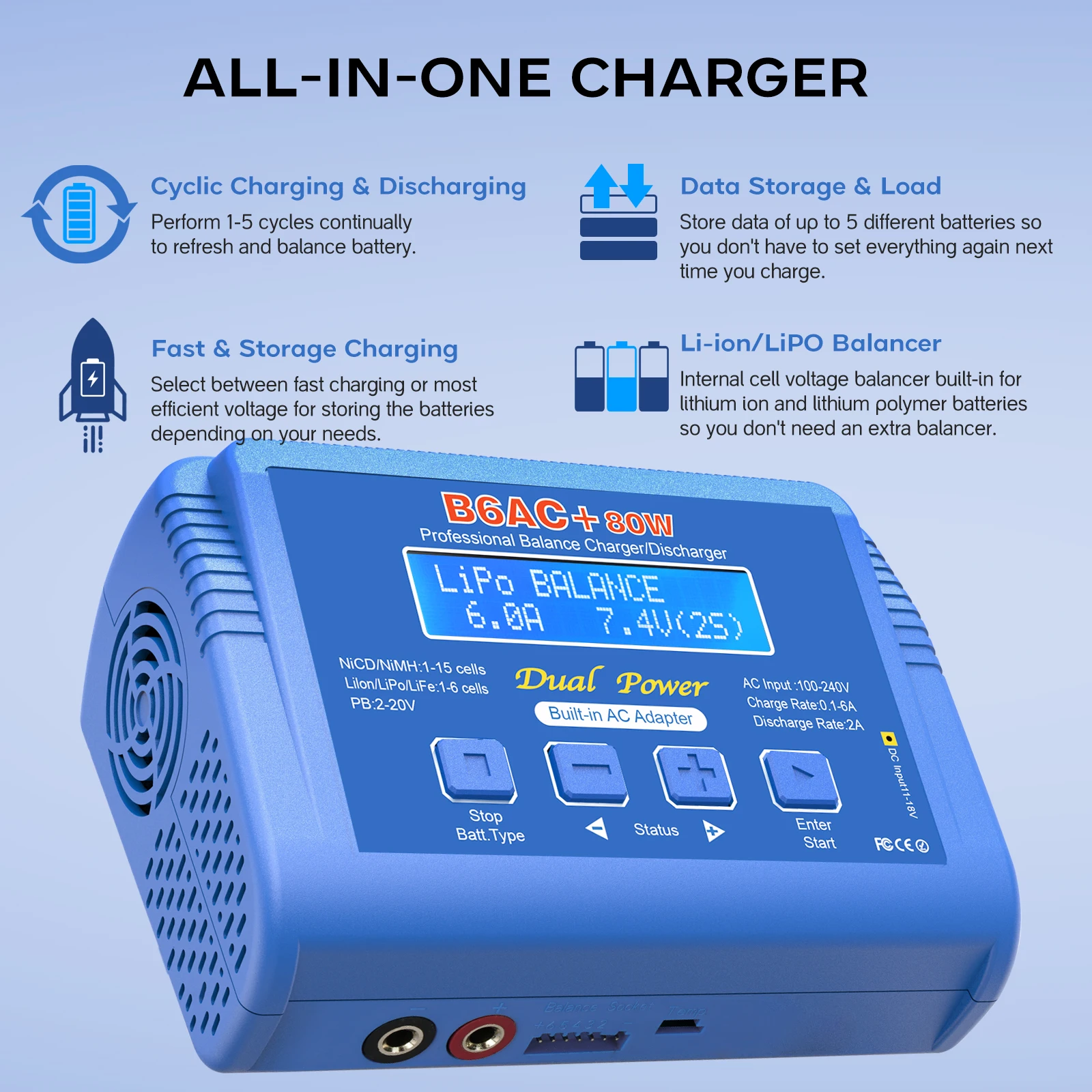

This LiPo Charger is packed with functions and features to make charging your battery packs easy and simple, without needing too many extra accessories.
Cyclic Charging & Discharging: Perform 1-5 cycles continually to refresh and balance battery.
Data Storage & Load: Store data of up to 5 different batteries so you don't have to set everything again next time you charge.
Fast & Storage Charging: Select between fast charging or most efficient voltage for storing the batteries depending on your needs.
LiPO/Li-ion Balancer: Internal cell voltage balancer built-in for lithium ion and lithium polymer batteries so you don't need an extra balance charger.
