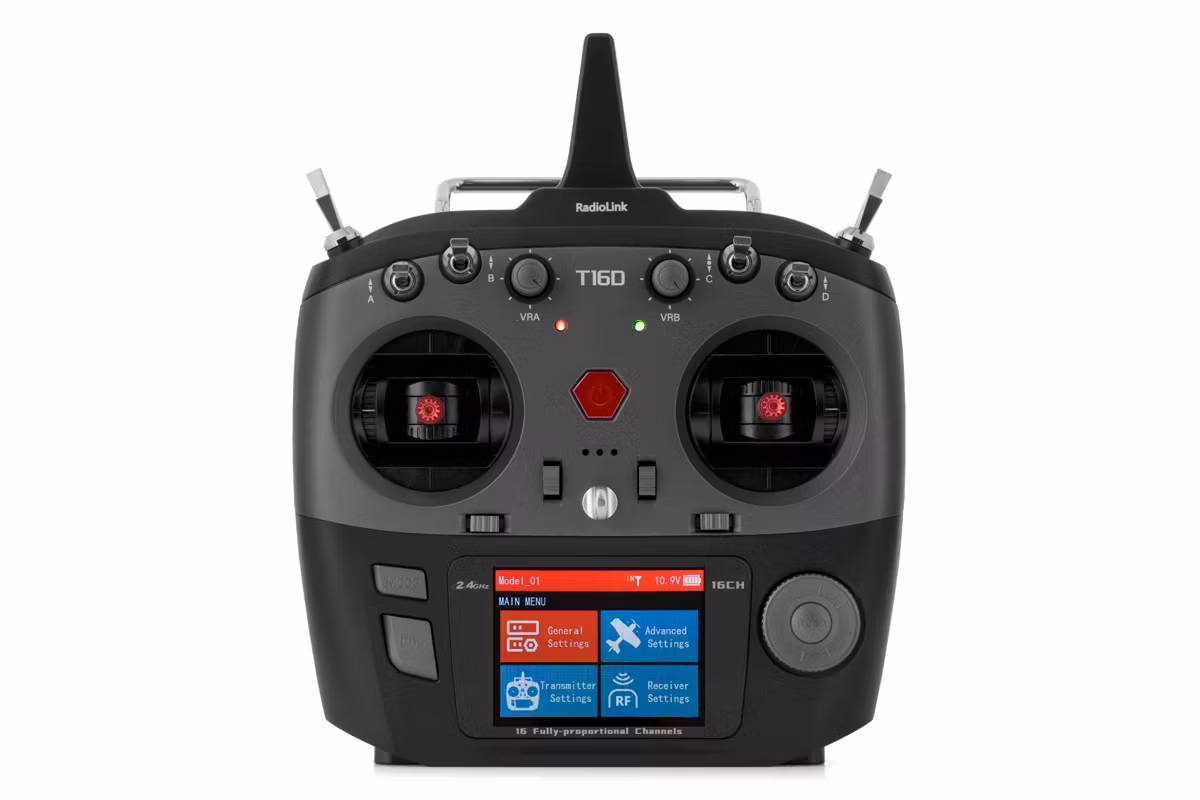

Radiolink T16D med R16F Gyro Receiver 2.4Ghz radio system

Helt ny topp moderne 16 kanals radio fra Radiolink med ekstrem lang rekkevidde
og alle mulige tenkelige funksjoner og programmeringsmuligheter.

Channel:                                      16 fully proportional channels, all 16 channels can be programmed
Signal Output:                           PWM&SBUS&PPM&CRSF
Operating Systems:                 Free RTOS+LVGL GUI
Output Frequency:                  2.4GHz ISM band (2400MHz~2483.5MHz)
Spread Spectrum:                    FHSS 67 channels pseudo-random frequency hopping
Modulation Mode:                    GFSK
Channel Band Width.              400 kHz
Channel Pacing:                        1200 kHz
Transmitter Power:                  <100 mW (20dBm)
Adjacent Ch Rejection:           >36 dBm
Transmission Rate:                  38 kbps
Reception Sensitivity:           -104 dBm
PWM Output Range:                875-2125
Cycle:                                             15ms/per frame
Long-range Module Script:  LUA script

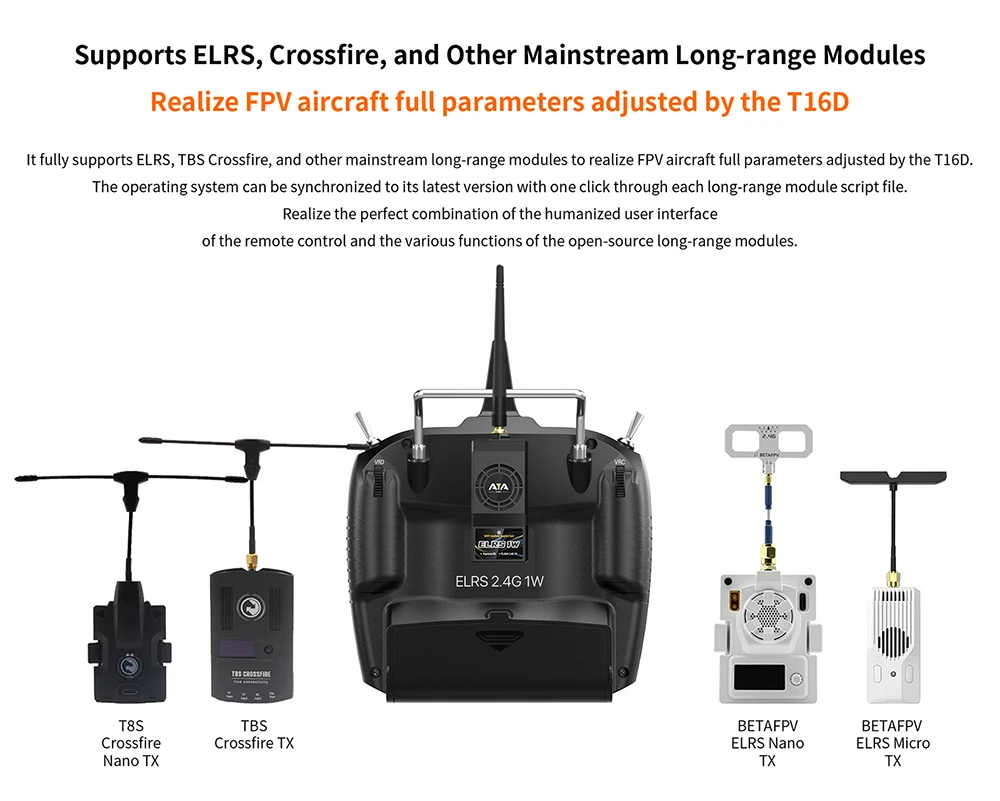

Long-range Module:                Fully supports ELRS, TBS Crossfire etc and other mainstream long-range modules
Voice Broadcast:                       Unique personalized and humanized voice broadcast customization
Response Latency:                   3ms, 4ms, 14ms can be selected
Channel Resolution:               4096 with regular jitter of 0.25us
Storage Model Quantity:       100
Storage Sub ID Models:          16
Screen:                                          2.8 inches 16 colorful screens, 320*240 pixels
Operating Voltage:                   7.4-15.0V(8pcs AA battery, a 2$-4s LiPo or 18650 Lithium battery)
Type-C Port Input Voltage:    5V(T16D also can powered by computer or mobile power bank via Type-C cable)
Type-C Port Input Current:    500 mA
Type-C Port Output Voltage: 4.6V-5.0V
Type-C Port Output current: Maximum 1A
Operating Current:                    100mA (±10mA)@8.4VDC
Control Distancem FHSS:       4000 meters in air
Control Distance CRSF:            Depends on the RX and TX of the long-range module
Low voltage alarm:                    Low transmitter voltage, low receiver voltage, low model battery voltage, or low RSSI alarm can be customized
Trainer Function:                        Supported
Operating Temperature:        -30 - +85 grader celcius
Adaptable Models:                     Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot
Dimension:                                    174.3 x 206.9 x 106.9 mm (6.86"*8.15"*4.21")
Weight:                                            558 gram (19.68oz)

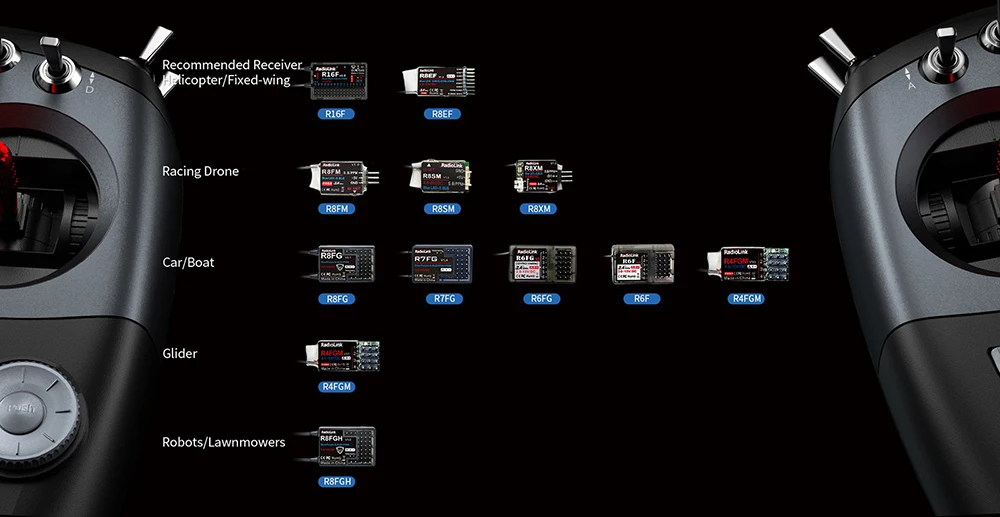

Compatible Receivers:             R16F(Standard), R16SM, R12F, R8EF, R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM
Compatible Control Board Hardware Models: Ardupilot, pix4, beta, Arduino, and Raspberry Pi, can be connected with SBUS signal

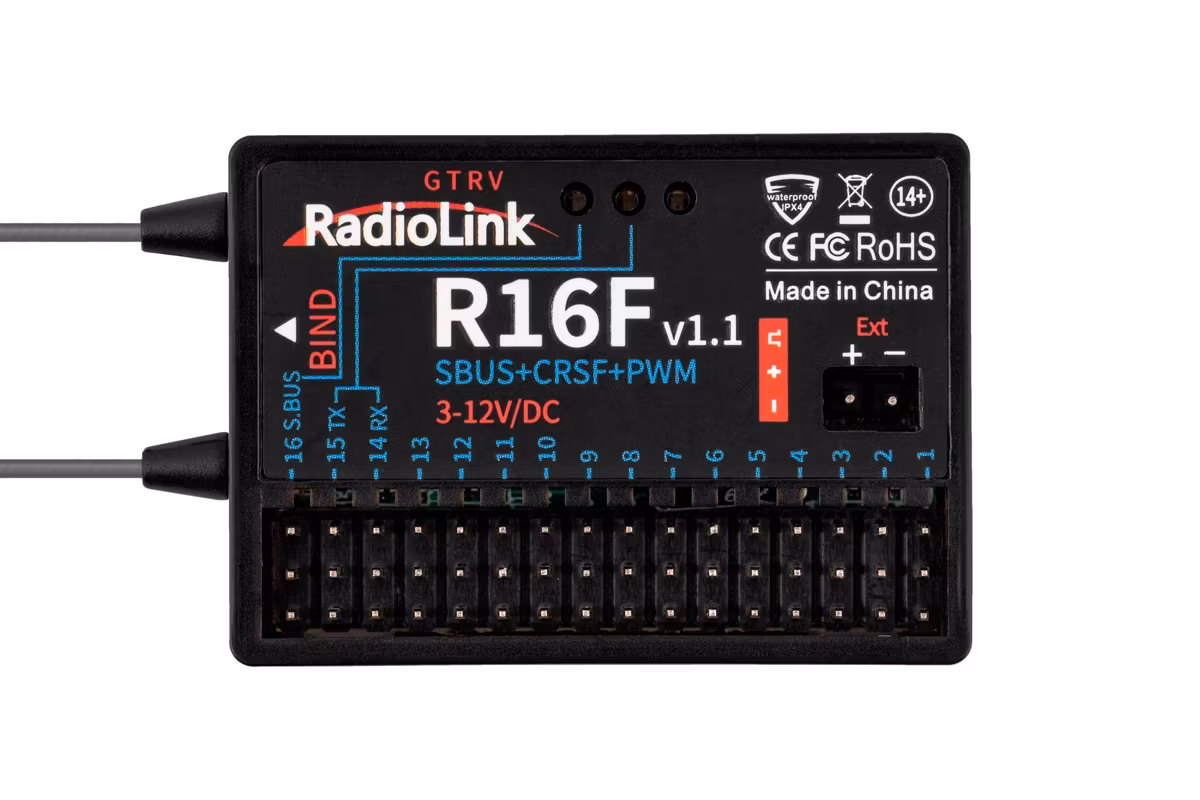

R16F Receiver spec:

Antenna Length:               205mm (8.07”)
Dimension:                          35.6*25*13.6(1.4"*0.98"*0.54")
Weight:                                  17 gram (0.6oz)
Channels:                             16
Operating Voltage:           3-12 volt DC
Operating Current:           50±10mA@5V
Output Frequency:           2.4GHz ISM band(2400MHz~2483.5MH)
Spread Spectrum:             FHSS 67 channels pseudo-random frequency hopping
Signal Output:                    SBUS+CRSF+PWM
Control Distance:              4000 meters in air
Section Precision:             4096, 0.25us per section
EXT Battery Input:             1S-14S (3 - 60 volt)
Response Latency:            3ms, 4ms, 14ms can be selected
Water Splash Proof:          Waterproof grade is IPX4
Operating Temperature: -30 - +85 grader celcius
Compatible transmitter: T16D/T12D/T8FB/T8S/RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/RC4GS

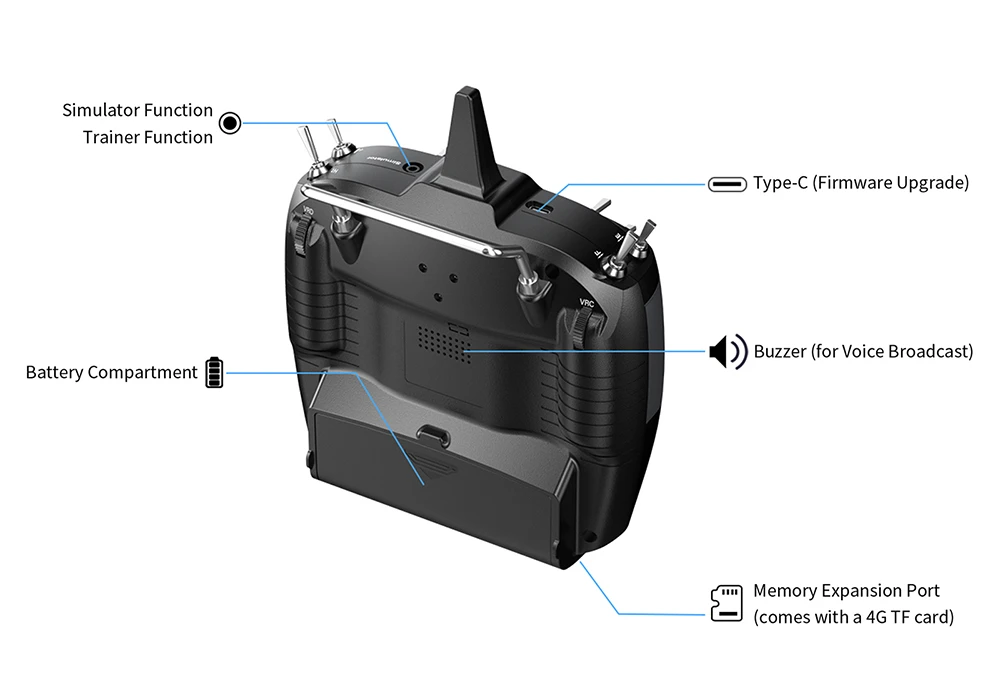

Upgrade Online:  With a Type-C cable (for data transmission) connecting the R16F to the computer, the latest cutting-edge functions can be easily added without any extra device
Simulator Function:          R16F comes with a built-in PC Game Joystick communication program(requires a firmware upgrade to V1.7), so it supports the latest simulator by connecting to the computer directly via Type-C port, such as TRYP FPV, AeroFly, Uncrashed, liftoff, FPV LOGIC, Velocidrone (Black Sheep Simulator), and other open-source simulators. No need to supply additional power to the receiver. It can be used on both Apple and Windows computers
Multi-language instruction manual

Praktisk vanntett polstret transportbag KLIKK HER
Link til produsent KLIKK HER
Brukermanual KLIKK HER

Radiolink T16D er en helt ny ekstremt funksjonsrik 16-kanals radio som har fått veldig mye ros for sin ergonomiske konstruksjon, innebygde ELRS/Crossfire-støtte, tilpassbare stemmevarsler og simulatorkompatibilitet, noe som gjør den til et førstevalg for piloter med ulike modelltyper. Rekkevidden er uovertruffen med hele 4 km og enda lengre med ELRS modul. Både sender og mottaker er på 16 kanaler og støtter vanlige langtrekkende moduler som ELRS og Crossfire via den eksterne modulbrønnen. Den har en solid, ergonomisk design med Hall-sensor-gimbals, en stor LCD-skjerm og programmerbare brytere for enkel tilpasning på tvers av ulike flytyper. Brukere vil dra nytte av personlige stemmesendinger, brukerdefinerte telemetridata, et bredt utvalg av modelllagring (100 grupper) og et gratis RTOS-basert system for oppgraderinger. T16D er kompatibel med en lang rekke Radiolink-mottakere og passer for et bredt utvalg av fjernstyrte modeller, inkludert fly med fast vinge, droner, helikoptre, biler og båter. T16D simulatorer støtter simulatorer med åpen kildekode, slik at brukere kan koble til og fly uten å trenge en separat USB-dongle.

The RadioLink T16D is a high-performance 16-channel 2.4GHz RC transmitter engineered for precision control across a variety of RC models, including airplanes, helicopters, drones, cars, and boats. Designed for both enthusiasts and professionals, it features ultra-low latency, high-resolution inputs, and an extended control range to deliver a seamless and responsive experience. With FHSS frequency-hopping technology, multi-model memory, and an ergonomic design, the T16D ensures reliable performance in any environment.

Key Features:

16-Channel Control & Wide Compatibility
Supports a broad range of RC models, from aircraft to ground vehicles, with smooth and responsive handling.

Ultra-Long Control Range
FHSS frequency-hopping technology provides a stable, interference-resistant signal with a range of up to 4000 meters.

High-Resolution Input & Precision Response
4096-level resolution with a minimal 0.25µs jitter ensures ultra-smooth, lag-free operation for high-precision control.

Multi-Model Memory & Quick Switching
Store and switch between multiple models easily, reducing setup time and optimizing performance for different vehicles.

The T16D is a sixteen-channel computer transmitter for recreational modelers that allows you to set basic functions such as the size and direction of deflections, and also has a variety of mixes for controlling a wide range of models - motorized aerobatic models, gliders, multicopters, cars and other ground equipment, as well as ships. It can work with an internal RF part with an FHSS transmission system (the same as the T8FB/T8S or the RadioLink R4GS/R6GS/R8X pistol transmitters), but also allows the connection of external long-range ELRS or TBS Crossfire RF modules. It is characterized by a practical case that fits perfectly in the hand with a classic, time-tested ergonomic layout of the controls.

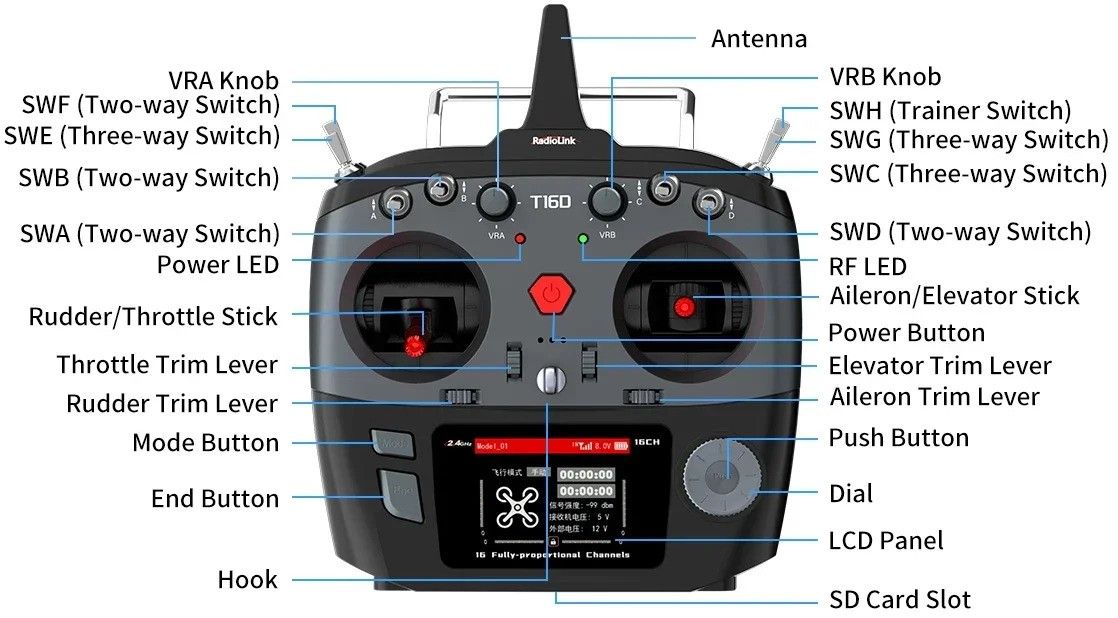

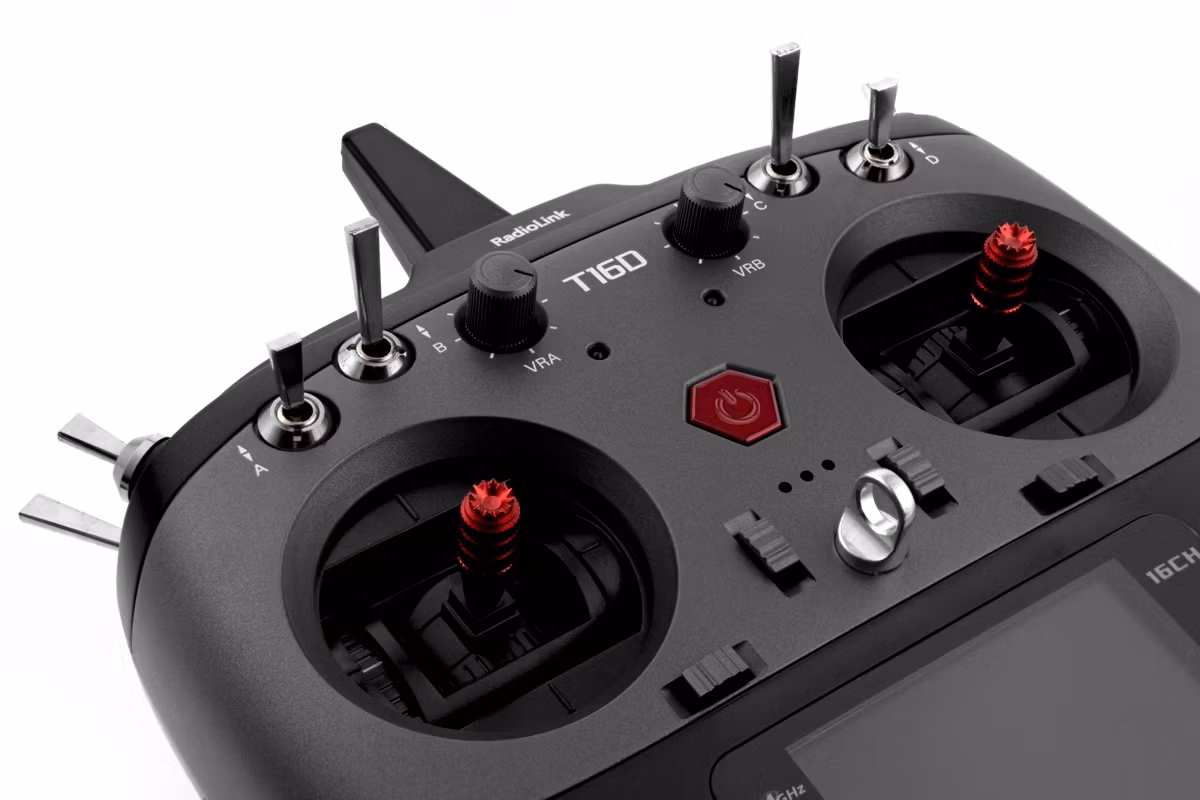

Controls: The main functions are controlled by precise cross controllers with adjustable neutralization spring force and the ability to move the locked throttle axis to the left or right. Thanks to this, you can freely select the operating modes of the cross controllers 1-4. The digital trims have an audible step and center position. They are located slightly eccentrically and are easy to reach. Additional channels can be controlled by two rotary knobs on the front panel and two rotary knobs with neutralization on the back of the transmitter; eight switches (three three-position and five two-position) can serve as channel switches or for turning program functions on/off. For easy programming, a pair of buttons and a programming wheel/button and a color LCD display with a diagonal of 2.8 inches and a resolution of 320×240 pixels are used. The transmitter uses the FreeRTOS operating system.

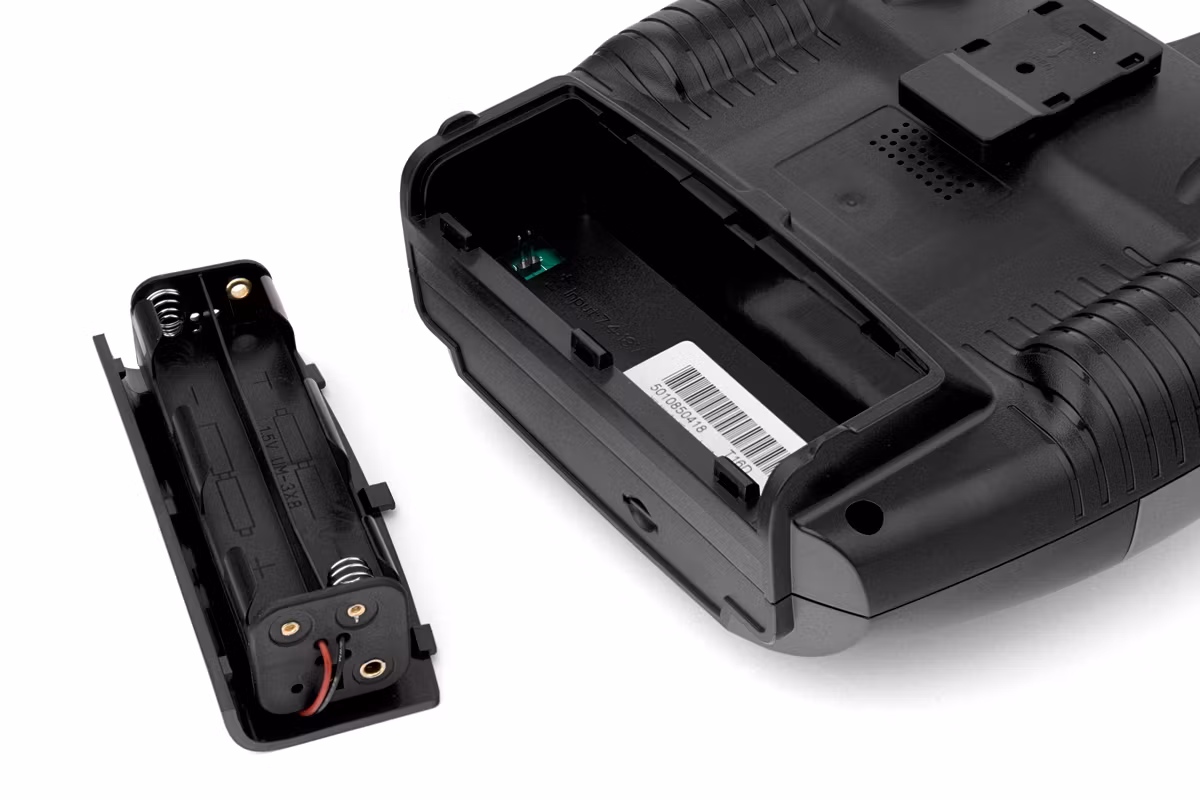

Transmitter power supply: The T16D allows you to use a variety of different sources for power supply: 8 alkaline batteries or NIMH batteries inserted into the holder supplied with the transmitter, NiMH battery packs with 8 cells (size AA, AA) or two to four cell LiPo, Li-ion sets. Power supply from a power bank via the USB-C port is also possible.

Transmission system: The T16D uses FHSS frequency hopping transmission ensuring long range, reliability and immunity to interference. For the internal RF part, it is possible to select three FHSS transmission protocols with different transmission speeds (14 ms for analog servos, 4 or 3 ms for digital servos) depending on the type of RadioLink receiver and servos used. When using a telemetry receiver, it allows the transmission of telemetry from the receiver and also telemetry from the connected RadioLink flight controller, if you use one. For work with external modules, bidirectional ELRS and CRSF V2 protocols are available.

Software: T16D offers programs for eight types of models - classic aircraft, gliders/deltas, multicopters, helicopters, cars, boats, tracked vehicles/tanks and robots, while offering the possibility of cooperation with RadioLink control units for aircraft, drones, vehicles or, for example, a fishing boat, including the relevant telemetry.

• Memory for 100 models with the ability to copy and rename models
• System settings (display brightness, contrast and backlight, menu language, etc.)
• Selectable 1-4 D-pad mode
• Servo monitor
• Reversal of the sense of deviations
• Setting the size (endpoints) of deflections
• Servo speed
• Free assignment of functions and controls for channels 5-16

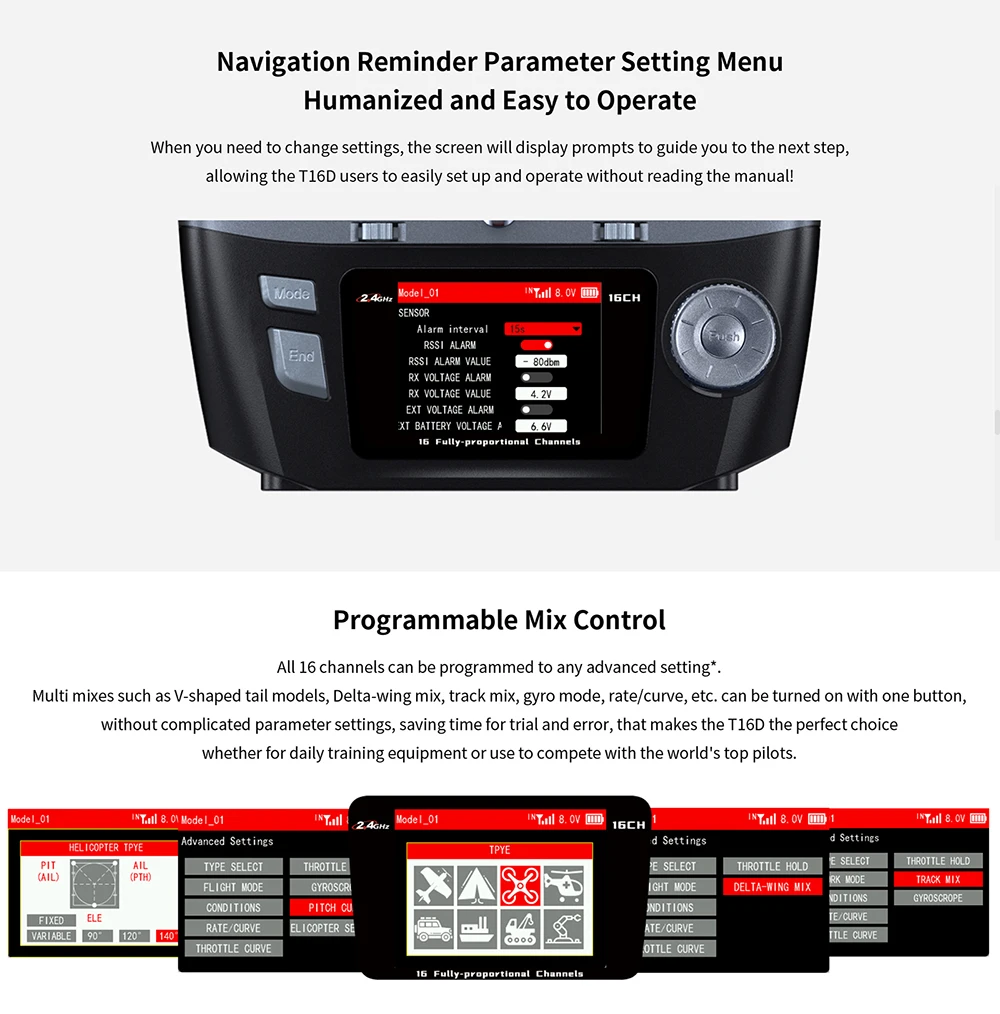

• 8 freely programmable mixes with selectable waveforms: linear, exponential, polyline, 9-point curve
• Switchable control unit mode (up to 17 modes)
• 3 flight modes
• Dual deflections and selectable deflection curve (exponential, broken curve, 9-point curve) for channels 1, 2 and 4
• Throttle curve (up to 9 points)
• Throttle preselection (engine shutdown for aircraft, autorotation for helicopters)
• Mix for butterfly tail surfaces
• Mix for gliders/deltas
• Gyro gain remote control mix (for RadioLink receivers with built-in gyro)
• Helicopter collective curve
• Helicopter mixes (swashplate)
• Mix for tracked vehicles
• Feeder control (only with R16F receiver and RadioLink control unit with GPS) allowing setting of the sailing route in up to 100 points
• Auxiliary ID: Allows you to control multiple models with receivers paired to a transmitter without switching model memories (e.g. you can drive out with a tractor-trailer with a loaded excavator; once you arrive at the job site, flip the switch to activate the auxiliary ID and the transmitter will now control the excavator)
• 2 timers
• Switch assignments
• Assigning audio messages to individual switch positions (you can record your own voice messages to the transmitter announcing, for example, flight modes or landing gear extension and assign them to individual switch positions)
• telemetry voice output
• USB-C port for updating transmitter firmware or controlling RC simulator on PC (from version V1.7.1)
• Teacher-student socket for wired connection of 2 RadioLink transmitters

Compatible receivers: RadioLink R12F, R16F, R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R6FGM, R4F.
The R16F receiver included in the kit allows you to select several channel output modes (16 PWM outputs for classic servos, 15xPWM + S.BUS, 13xPWM+S.BUS+RX/TX CRSF, 14xPWM + RX/TX CRSF) with combinations of PWM outputs for classic servos, S.BUS serial output and input/output for CRSF. You can easily connect classic servos, S.BUS servos and other devices, control units, etc. to it.

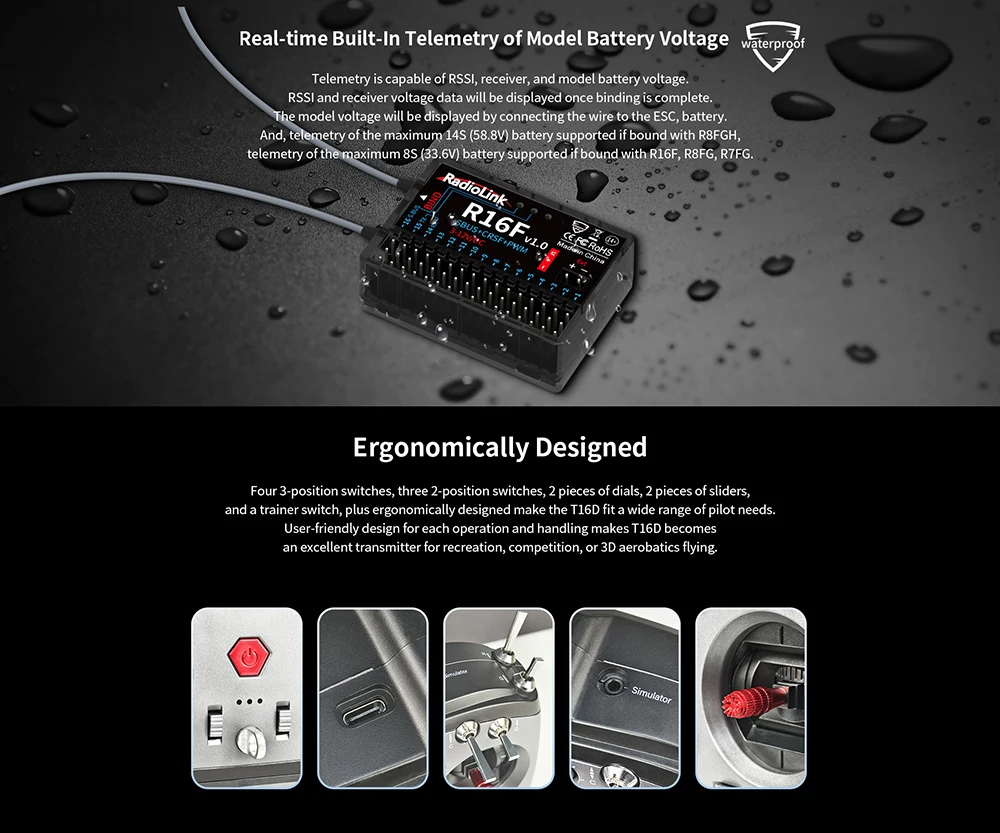

Telemetry:

• When using the internal FHSS RF part and RadioLink telemetry receivers, information about the receiver supply voltage and RSSI signal strength is available; with the R16F receiver, it is also possible to measure and display the voltage of, for example, a drive battery up to 6S LiPo on the transmitter. You can also set threshold levels for warning signals of weak signal or low voltage. When using the RadioLink control unit, telemetry data from this unit can be displayed.
• When using an external RF module with CRSF protocol and the appropriate receiver, telemetry from this receiver can be displayed.

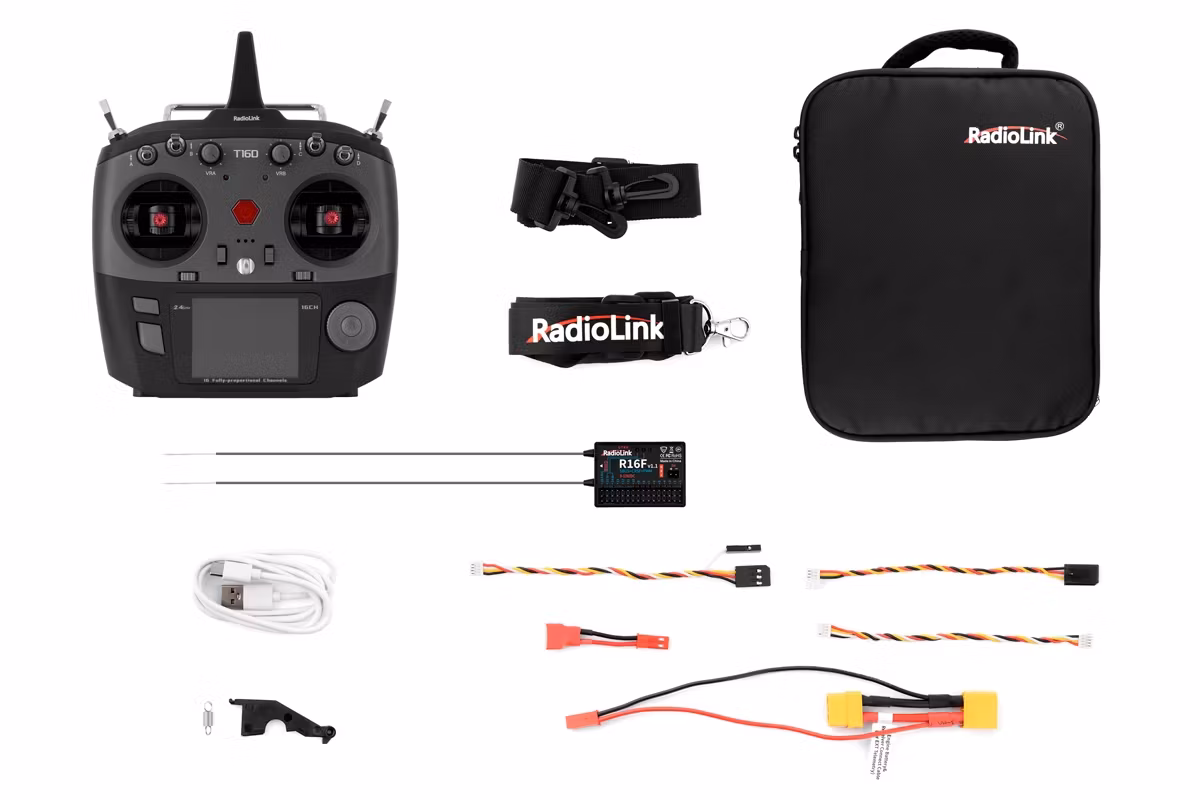

Package include:

1 x T16D (Transmitter)
1 x R16F (Receiver)
1 x Lanyard
1 x Type-C Cable (Upgrade)
1 x Hook and Spring
1 x Instruction Manual
