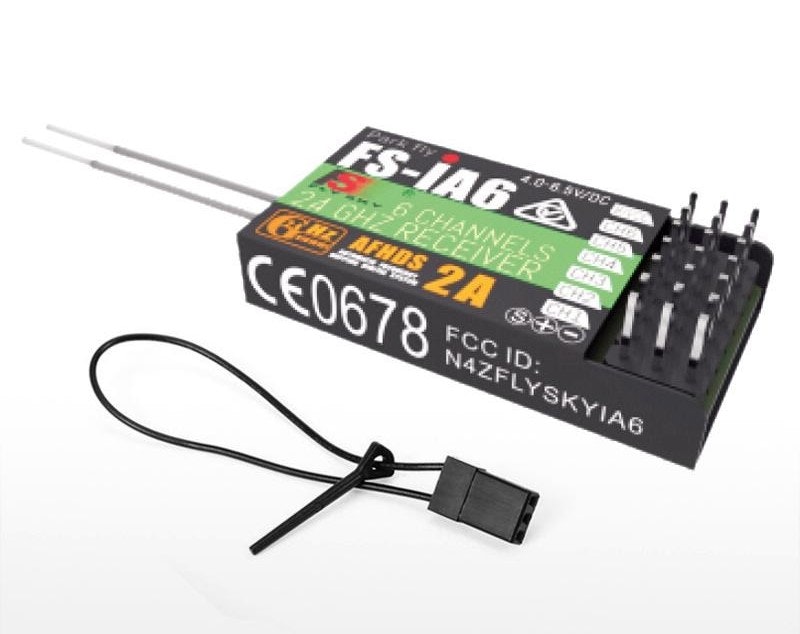

Flysky FS-IA6 6 kanal mottaker

Channels: 6
Frequency Range :2.4-2 .48 GHz
Number of Band: 140
Transmitting Power: not more than 20dBm
Receiver Sensitivity:-105dBm
2.4G modes: Automatic frequency second generation digital systems
Encoding: GFSK
Weight: 6.4g
Input Power :4.0-6 .5 V DC
Dimensions: 40.4 x 21.1 x 7.35 mm
Usage: Suitable for RC Airplane / gliders / helicopter
Compatible Transmitter: Flysky FS-i10,FS-i6,FS-i4,FS-GT2F,FS-GT2E,FS-GT2B

Features:

Reliable, interference free 2.4GHz AFHDS2A signal operation.
Ultra light weight design.
Easy to bind and very fast link-up.
6 channel receiver compatible Flysky i4 i6 i10 GT2E GT2F GT2G transmitter.
Quick and extremely stable in performance.

Matching(bind):

A. Install the battery to 2.4G transmitter and shut it down.
B. Insert the matching lines to the channel BIND/CH3 port of the receiver.
C. Connect the receiver battery to VCC port of the receiver, on the same time the two LED are flashing and this means the receiver are going to the matching status.
D. Press and hold the button on the transmitter, and then switch on the power supply.
E. Observe the LED on the receiver, if find that the LED is not flash anymore and that means successful Matched. (This process about 5s)
F. Release the match button on the transmitter, take out the match line.
G. Install the server and then test.
H. If the tests fail, please repeat the action above.
G. If the tests success, then insert the power supply port into VCC, match complete.
(The above ways of match is only suitable for FLYSKY 2.4G products)
