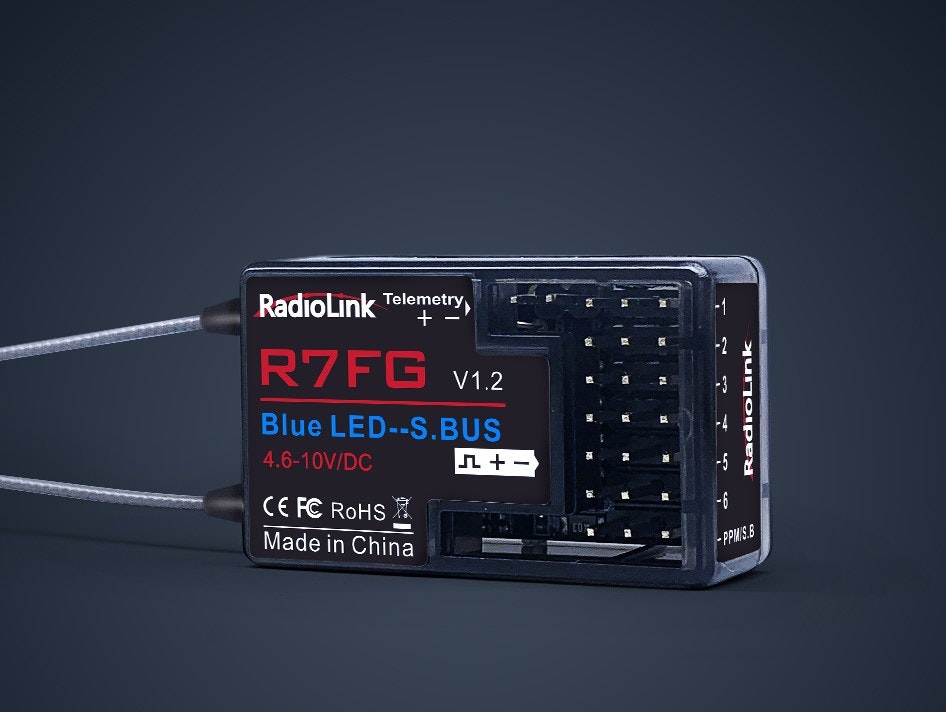

Radiolink R7FG 2,4 Ghz 7 Ch mottaker Gyro Telemetri SBUS/PWM/PPM

Channels: 7 channels
Models: Car, boat
Working voltage: 4.8-10V
Working current: 38-45mA (input voltage: 5V)
Size: 15 x 13 mm
Weight: 6g
Double antenna
4096 section precision, 0.25us per section, servo anti-shake rudder.
Control distance: about 600 - 1000 meters, actually control distance depends on the environment.
Compatible transmitters: RC6GS/RC4GS/8FB/T8S/RC4GS V2/RC6GS V2

R7FG 7CH Receiver Features:

Excellent Anti-interference: With pseudo random FHSS algorithm, which makes R7FG with excellent anti-interference ability, control distance up to 1900 feet (600 meters).
Real-time Telemetry: telemetry feature can provide real-time vital information like vehicle's battery voltage, RSSI signal and more, avoiding the battery over-discharge and damage.
Integrated Gyro: built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by transmitter, which fits for drifting and on-road cars.
Push to Bind: No need bind plug and any setting, only press bind button for 1 second after power up controller and receiver. High resolution ratio of 4096, stable signal and fast response.
Anti-polarity Protection: With reverse polarity protection, not damage the receiver even you insert wrong polarity. 4.6-10v DC support high voltage servo.Small Size with Compact Case: Only 30*18.5*11.5mm small size and 6g lightweight.

How to bind with transmitter:

1. Put the transmitter and the receiver close to each other within 50 cm.
2. Turn on the transmitter, then power on the R7FG.
3. There is a black button on the R7FG, press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.

Attention: R7FG default have not turn on the gyro function. Make sure the R7FG keep motionless when power on it, because the R7FG will do the self-test. R7FG with two indicate LED, green LED on indicate normal working mode while both green and red LED on indicate gyro function working mode.

Package Included:

• R7FG Receiver x 1

• Voltage telemetry cable x1
