Weight: 15,8 gram
Dimensions: 27 x 12 x 23 mm
Torque: 4,0 kg/cm(at 4,8V) 4,6 kg/cm(at 6,0V)
Speed: 0.10 sec/60°(at 4,8V) 0.07 sec/60°(at 6,0V)
Motor type: Iron core
Bearing: POM
Gear type: Carbonite and metall
Case: Partly metal
Working voltage: 4,2v~6,0 volt
Operating temp: -15℃- +60℃
Standard signal: 1000~2000 microseconds
Working angle: 180°
Current: <300mA
Dead zone setting: 3 usec
Cable length: 250 mm
Suitable for airplane, helicopter, robot, båt, bil osv
CE &RoHS approved
Servo Plug: JR (Fits JR and Futaba)
servo arms & screws included and fit with Futaba servo arm
It’s universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
CE &RoHS approved

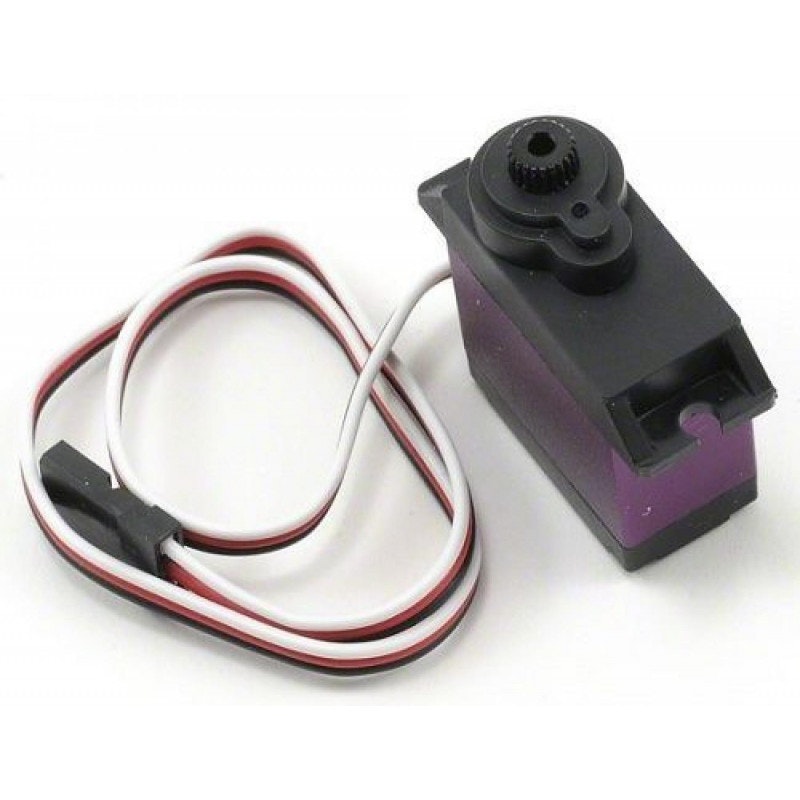

Oppgradert 12 grams digital mikroservo av god og solid kvalitet.
Tilkoblingsplugg som passer alle typer mottakere.
