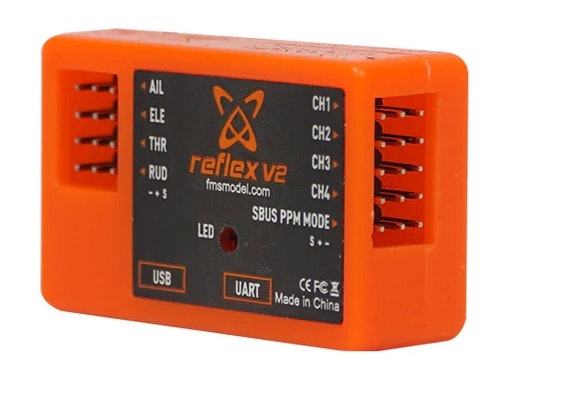

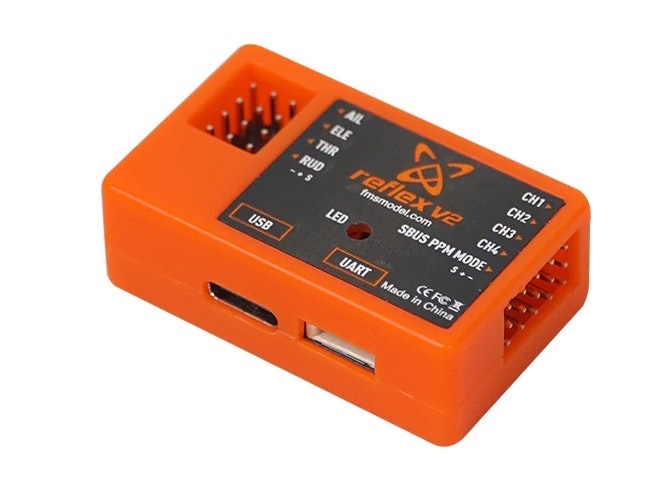

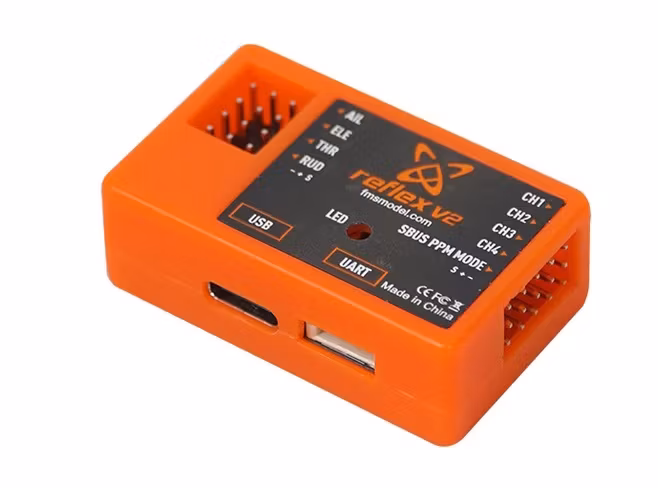

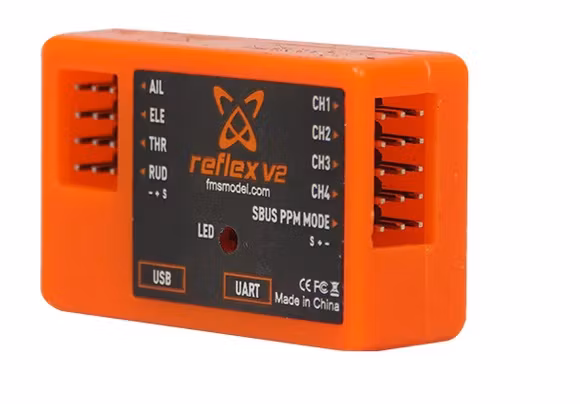

FMS Reflex V2 Flight Controller SBUS\PPM\PWM

Item name:               FMS Reflex V2 Flight Controller
Weight:                     14.5 gram (with wires)
Dimension:               34.5x26,0x14.5 mm
Channel Qty:            4 channels
Integrated sensor:  3-axis gyroscope/acceleration sensor
Signal supported:   SBUS/PPM/PWM
Input voltage:          6-12 volt
Operating current:  25±2mA

FMSREF001 Reflex V2 Flight Controller m/Gyro leveres med nødvendige servoledninger.

Brukermanual KLIKK HER

Passer til alle typer (fabrikat) mottakere som har enten PPM,PWM eller SBUS tilkobling. For å utnytte alle muligheter, dvs både slå den helt av eller sette den i stabiliserings- eller optimize mode, så må senderen ha en tretrinns bryter. Kun totrinns bryter så kan den ikke slås av.

REFLEX FUNCTIONS:

3 flight modes are available: Stabilized, Optimized or off. This is controlled with a 2 or 3 position switch on the transmitter. When assigned to a 2 position switch, the Reflex system switches between stabilized and optimized modes.

Stabilized Mode- Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released- giving pilots absolute peace of mind.

Optimized Mode- Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets- from gusts to crosswinds.

 OFF - Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.

Description:

We are proud to introduce the new and improved FMS Reflex V2!
A user-upgradable flight controller.
Reflex V2 can be reprogrammed easily with different model files via a simple software-allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own "co-pilot"- the Reflex V2!

REFLEX FUNCTIONS:

3 flight modes are available: Stabilized, Optimized or off. This is controlled with a 2 or 3 position switch on the transmitter. When assigned to a 2 position switch, the Reflex system switches between stabilized and optimized modes.
Stabilized Mode - Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released- giving pilots absolute peace of mind.
OFF - Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.
Optimized Mode - Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets- from gusts to crosswinds.


Manual:

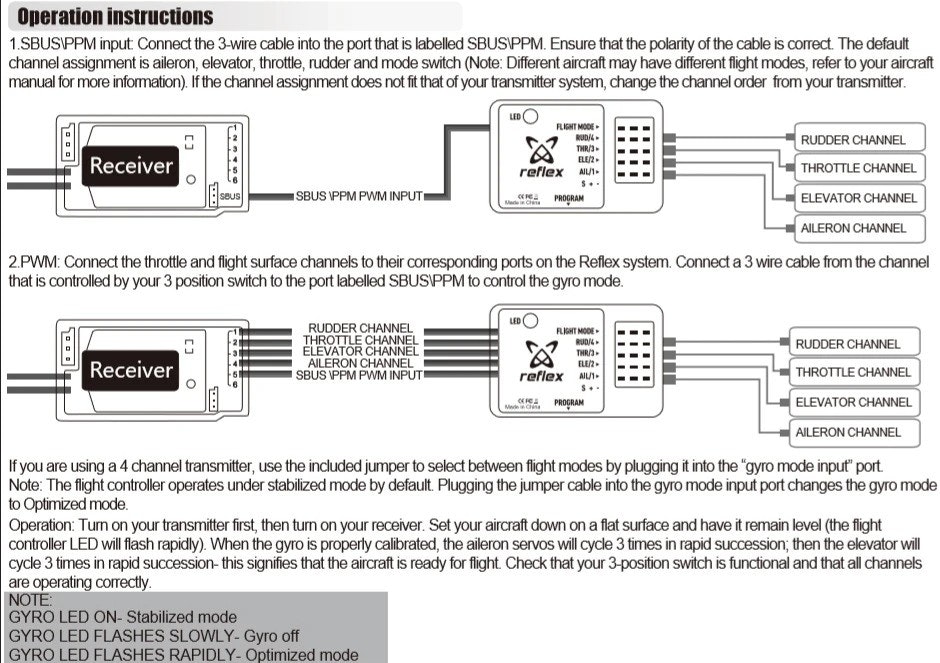

1.SBUS\PPM input: Connect the 3-wire cable into the port that is labelled SBUS\PPM. Ensure that the polarity of the cable is correct. The default
channel assignment is aileron, elevator, throttle, rudder and mode switch (Note: Different aircraft may have different flight modes, refer to your aircraft
manual for more information). If the channel assignment does not fit that of your transmitter system, change the channel order  from your transmitter.

2.PWM: Connect the throttle and flight surface channels to their corresponding ports on the Reflex system. Connect a 3 wire cable from the channel
that is controlled by your 3 position switch to the port labelled SBUS\PPM to control the gyro mode.

Operation: Turn on your transmitter first, then turn on your receiver. Set your aircraft down on a flat surface and have it remain level (the flight
controller LED will flash rapidly). When the gyro is properly calibrated, the aileron servos will cycle 3 times in rapid succession; then the elevator will
cycle 3 times in rapid succession- this signifies that the aircraft is ready for flight. Check that your 3-position switch is functional and that all channels
are operating correctly.
