Servotester

Color:             Sort
Voltage:         DC 4.8-6V

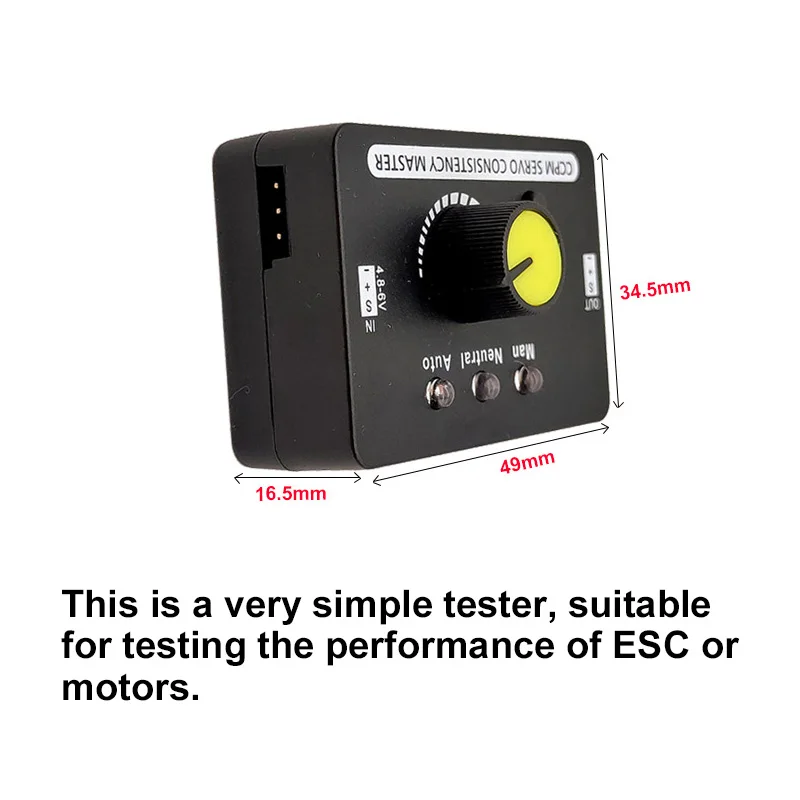

Size:                49 x 34,5 x 16,5 mm
Net weight:  15 gram

Features:

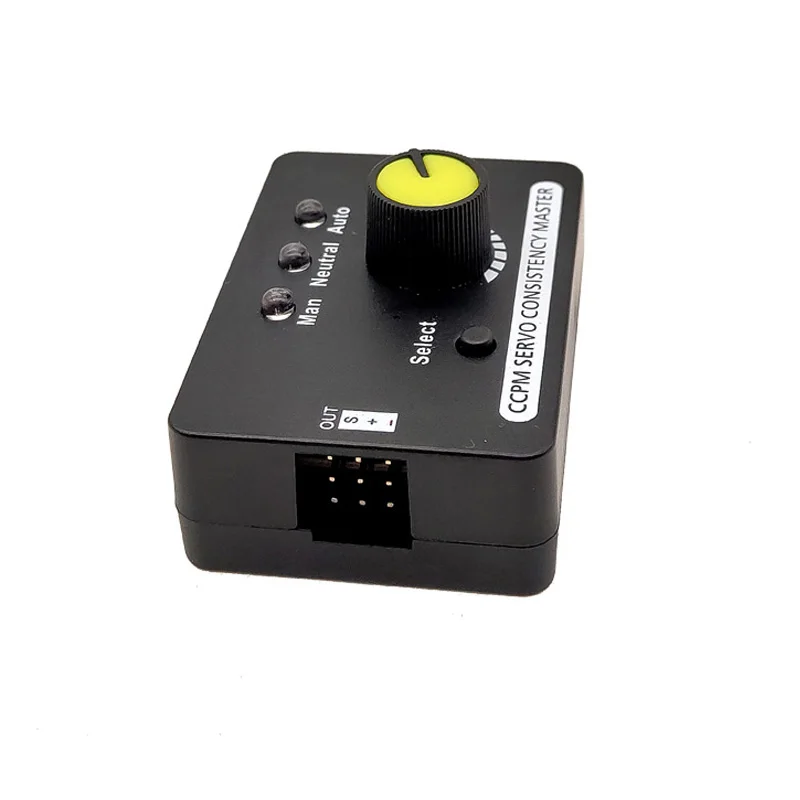

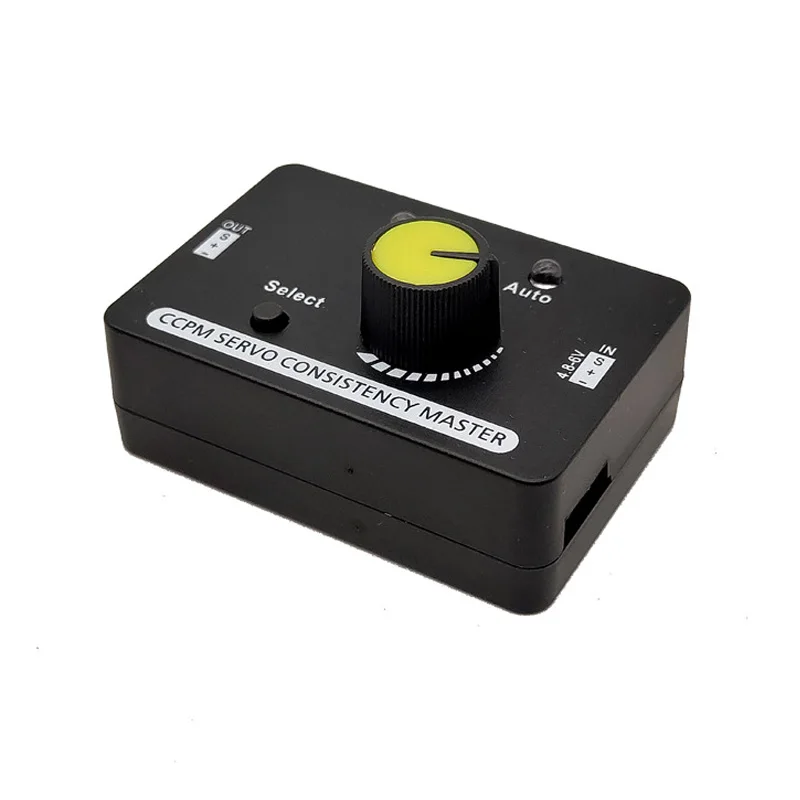

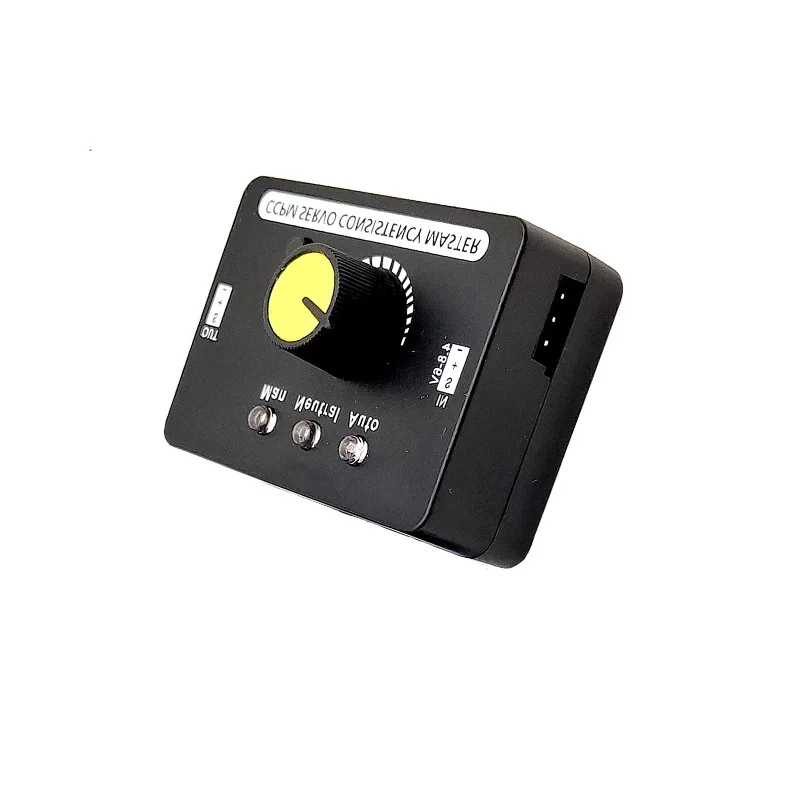

CCPM Servo Consistency Master / Servo tester

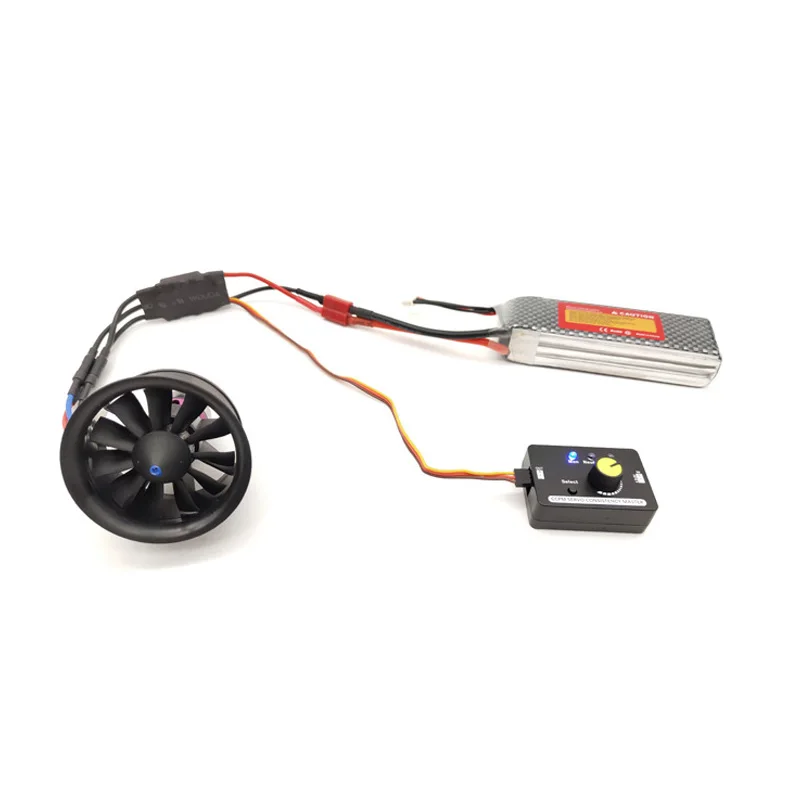

The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.

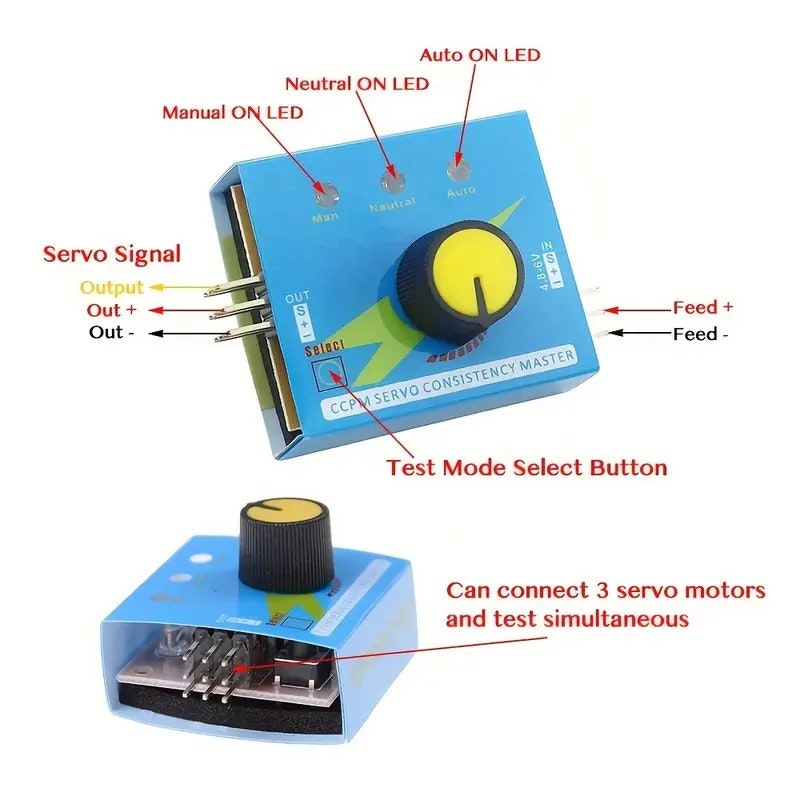

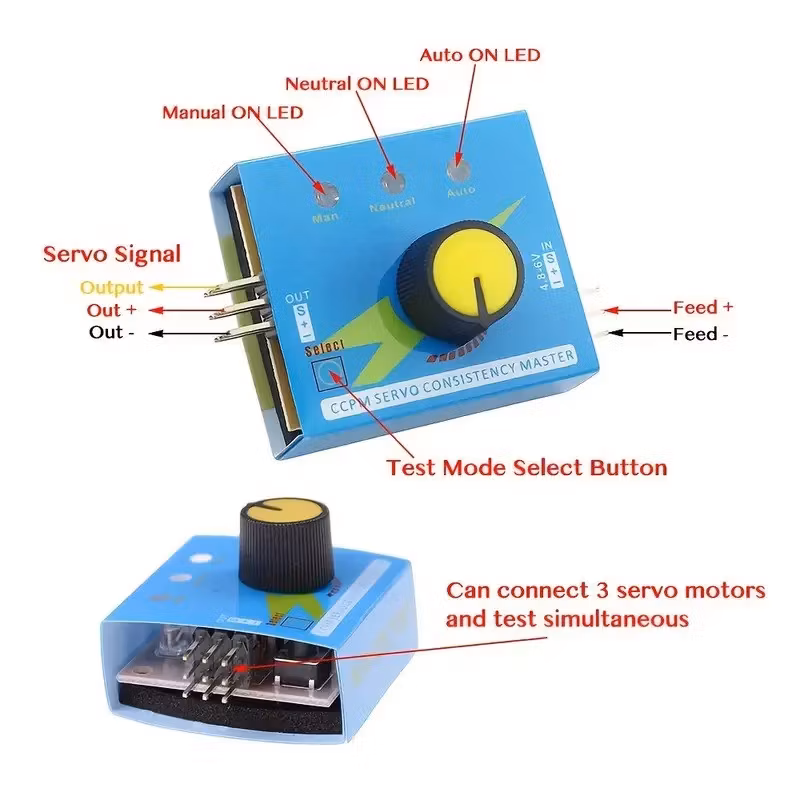

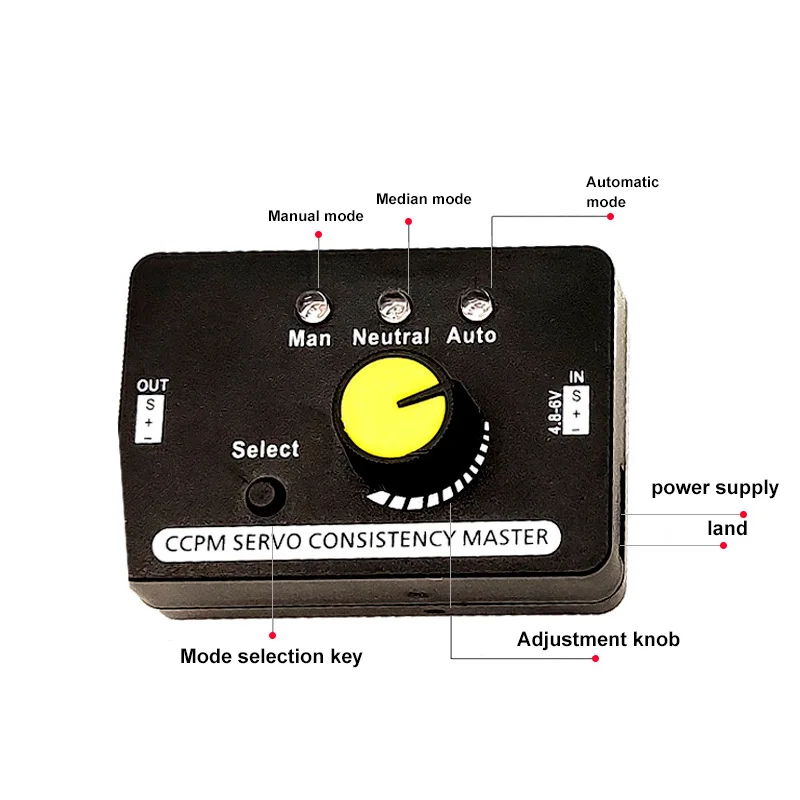

There are 3 modes to check servos or ESC:

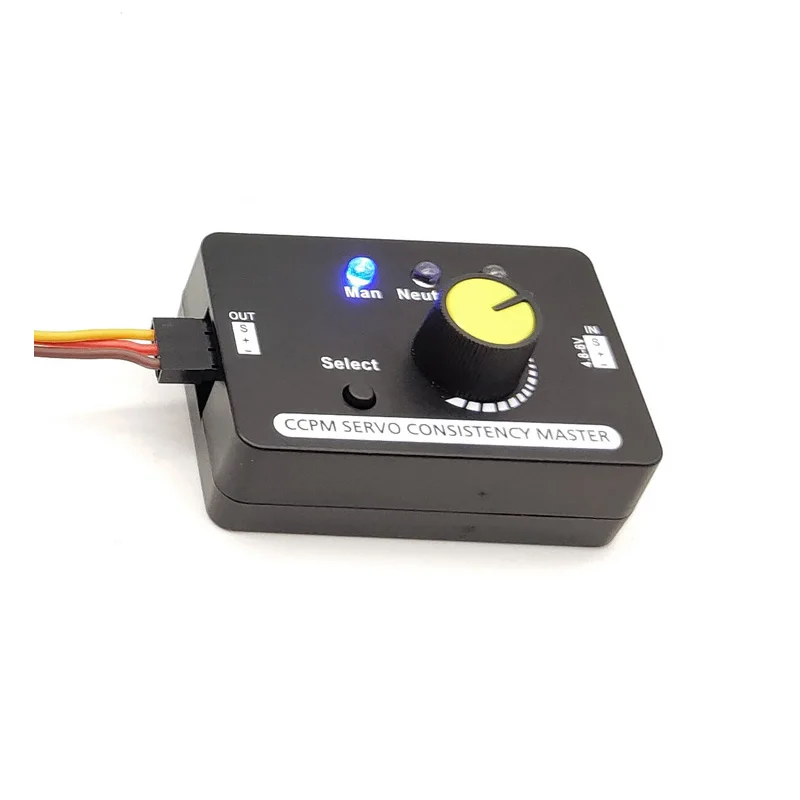

Manual mode: turn the knob with different speed, check the reaction time.

Neutral mode: make the servo go back to the neutral point.

Automatic \\"window wiper\\" mode:make the servo swing like a window wipers in the biggest angle.

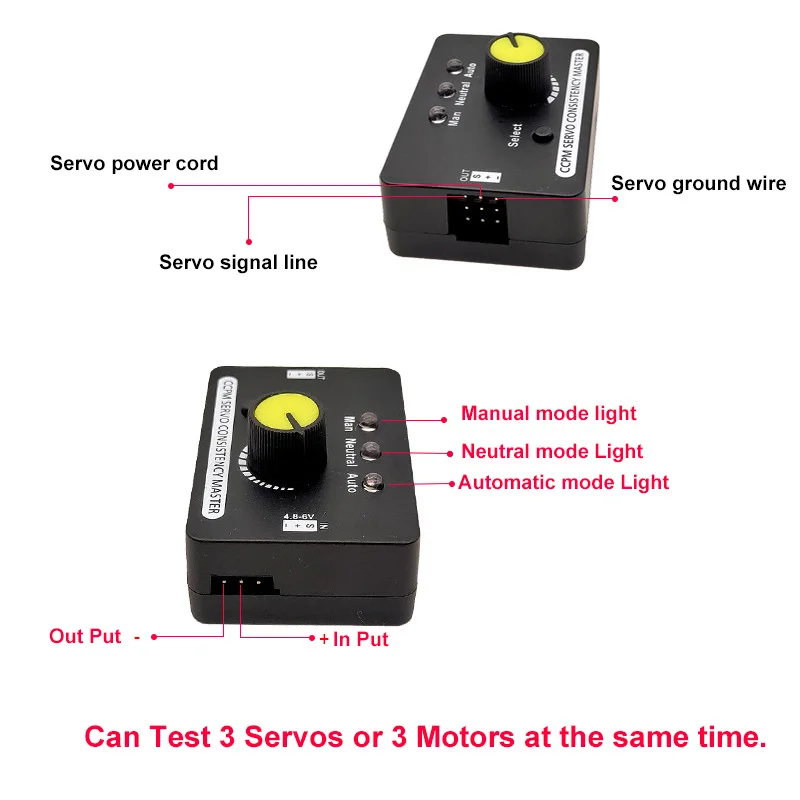

It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
You can also connect 1-3 ESC to test and compare their reaction time respectively.
It can connect 3 servos of the CCPM helicopters and select servos.
It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

Packet content:

1PCS x Multi Servo Tester
