Flycolor 90 Amp vannkjølt fartsregulator

Type:                         Vannkjølt fartsregulator
Item:                          Brushless ESC
Continue Current : 90 amp
Burst Current :        100amp
BEC Type :               Switching regulator
BEC Output :           5V 5A
Power Input :          2-6S LiPo
Weight :                   105g

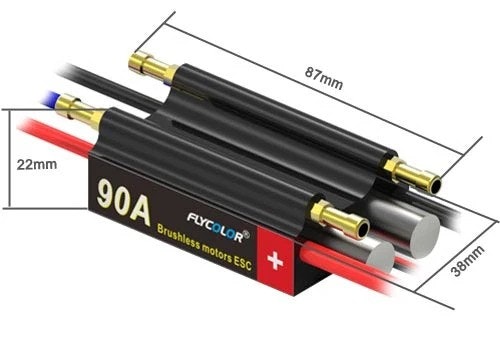

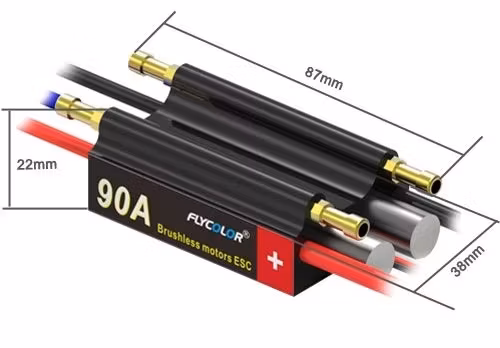

Size :                         80x38x20mm

Kvalitets vannkjølt fartsregulator (ESC) båt. Regulatoren tåler et kontinuerlig strømtrekk på 90 ampere.
Regulatoren leveres med fortinnede kabler for pålodding av valgfri batterikontakt og motorkontakter.
Passer til Vector SR80 Pro ved bruk av opp til 5S kjørebatteri og andre tilsvarende eller større båter med samme strømtrekk.
Utmerket for speedbåter helt opp til 1,5 meter.

Obs! En vannkjølt fartsregulator MÅ ha tilstrekkelig vannkjøling. Sjekk ALLTID kjøleslangene for knekker, og at det faktisk strømmer vann gjennom systemet. Gjør det ikke det, så kan regulatoren brenne opp på få sekunder. Dette er brukers ansvar.
Description:

Flycolor 90A Brushless ESC Speed Control Stand 2-6S Lipo BEC 5.5V/4A for RC Boat
Great application for the RC boat, design of the special structure with a condenser function to prevent damage components and protection against corrosion.
Professional waterproof technology, excellent performance after a long time in the water.
Driving Efficiency Optimization technology with BEC built in 4A, better performance, then BEC Asynchronous rectifier.
Powerful powerful, 5 main functional options for selection, meeting level difference requirement.
Easy to operate, same throttle adjustment method for both one-way and bidirectional.

Main features:

Use powerful and high performance MCU. Users can configure the functions as their demand, fully embody Intelligent features. Unique circuit design, strong anti-interference.
water resistant design (Note: if there is water at CES, please dry the water in the connectors).
Start mode can be configured. the quick accelerator response, and has very good linear speed control. Compatible with boat scale and racing boat.
Low voltage protection threshold value can be adjusted.
Built-in BEC switch, large power load with servo, low power dissipation.
multiple protection functions: abnormal voltage protection / low voltage cutout protection, excess thermal protection and protection against accelerator signal loss, making the CES more reliable.
High-performance safety performance: As long as the throttle lever is at low position, the engine does not start immediately.
On thermal protection: when ESC temperature is above 100 degrees Fahrenheit, output power is automatically reduced. When it is less than 80 degrees Fahrenheit output power will return to normal.menu adjustment cycle, simple operation. support adjustment with program box and transmitter.

Wiring Diagram:

Note: We strongly advise the use of battery connections that do not allow reverse polarity, or ESC
will be damaged. Pls disconnect the battery and ESC, if not use for a long time.

Operation instruction:
