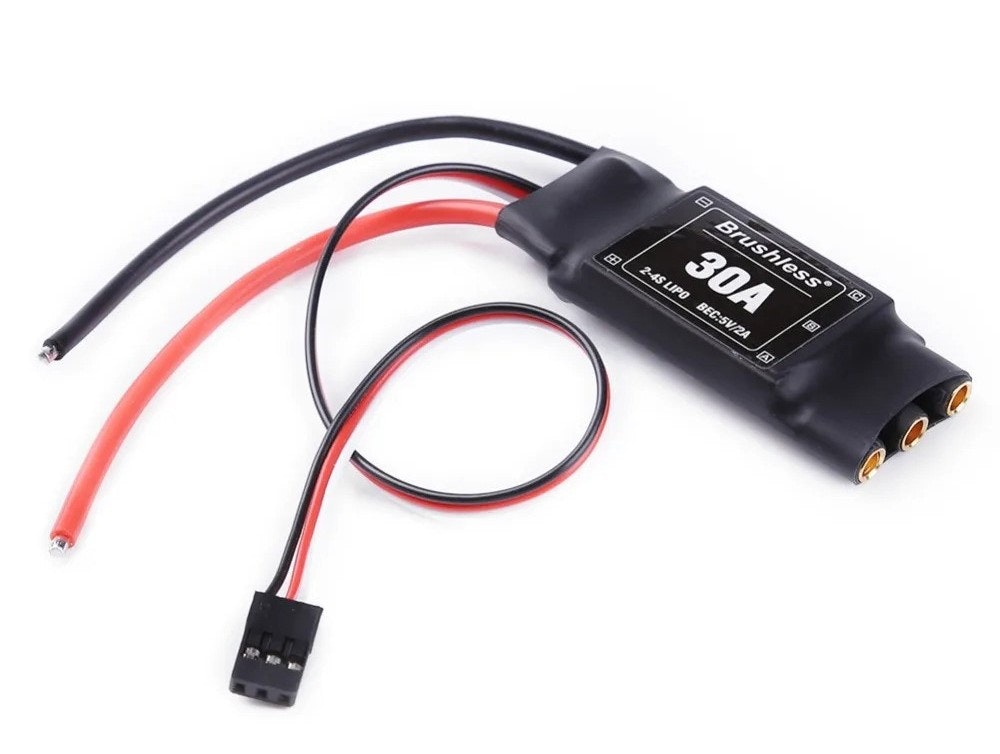

XXD 30 amp BL ESC







Continuous current: 30 amp
Instant current:         40 amp for 10 seconds.
 Motorkontakter:      3,5 mm
Dimensions:              45 x 24 x 11 (mm)
Vekt:                           25 grams
Voltage range:          4V-16V
Number of cells:       2 - 4S
BEC output:               2A continuous

Protective function:

2-3LIPO, the protection voltage is 6V/9V respectively;
Automatically select NIMH, the protection voltage of each section is 0.8V;
Safe start, throttle position is not allowed to start;
Temperature protection, 110 degree surface temperature shutdown;
Out of control protection, no signal stops after 1 second.
Performance description:
The upper limit of the speed is 210,000 rpm in 2 poles, 35,000 rpm in 12 poles, and 42,000 rpm in 14 poles.
8KHz PWM control with speed control curve.
Automatic throttle adaptation for more remote control devices.
With BEC, the MCU separates the power supply and works more stably.
