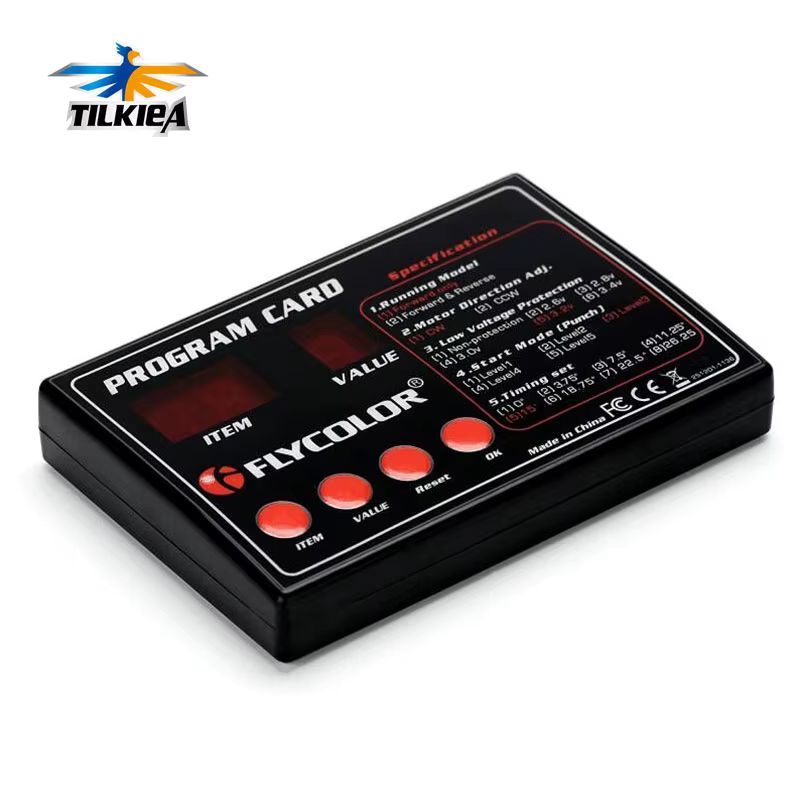

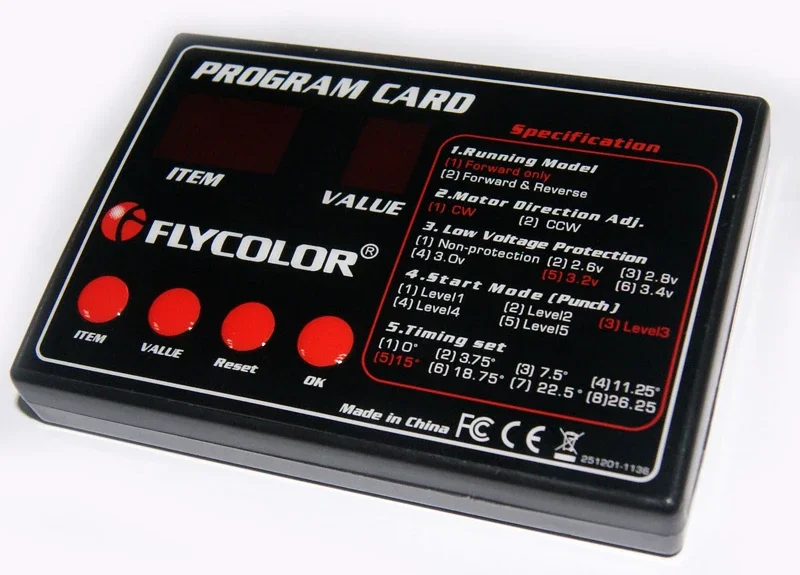

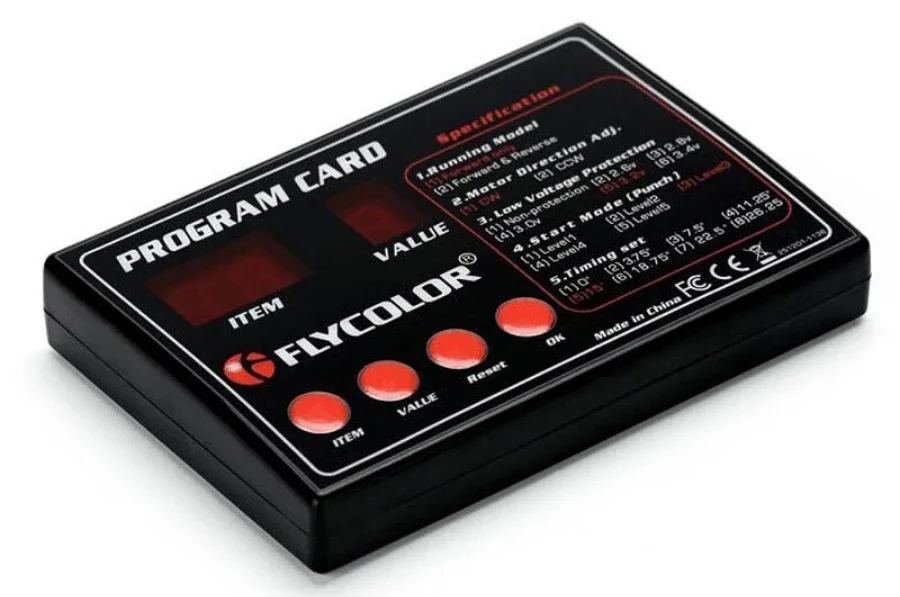

Flycolor båt ESC programmeringskort

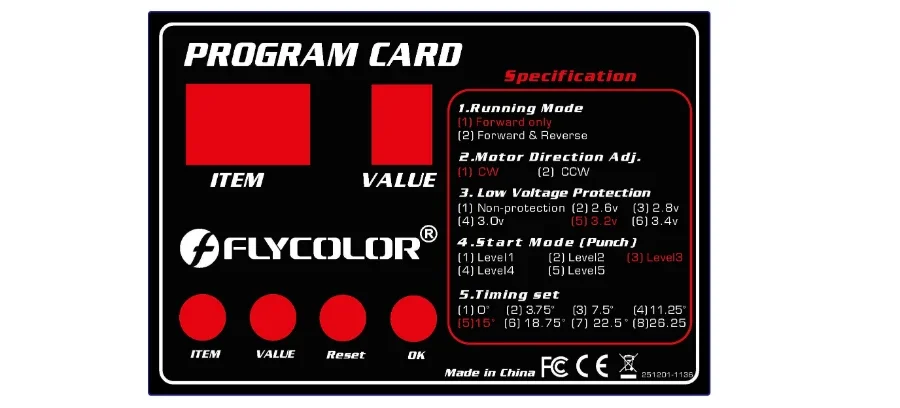

Running mode: FWD og FWD + REV
Motor direction: CW og CCW (FWD og REV)
Low voltage protection: Non / 2.6V / 2.8V / 3.0V / 3.2V / 3.4V
Start mode (punch): Level 1 / Level 2 / Level 3 / Level 4 / Level 5
Timing set: 0° / 3.75° / 7.5° / 11.25° / 15° / 18.75° / 22.5° / 26.25°

Programmeringskort for RC-båt Flycolor ESC fartsregulatorer.

Program Card For Boat ESC 50 - 150 amp 2 - 6S.

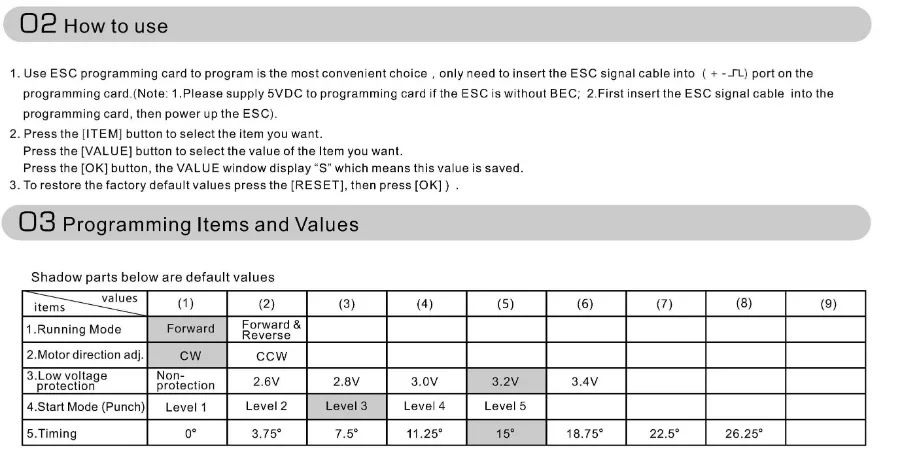

Instruksjoner:

1) Insert ESC signal line into corresponding (+ -) interface(Notes: For ESC without BEC output, please add 5VDC via " +–")
2) Use [ITEM] to select the item to modify
3) Press [VALUE] to select parameter for the item
4) Press [OK] VALUE window to display "S", indicating the parameter setting is complete
5) Press [RESET] and then press [OK] to restore factory default items

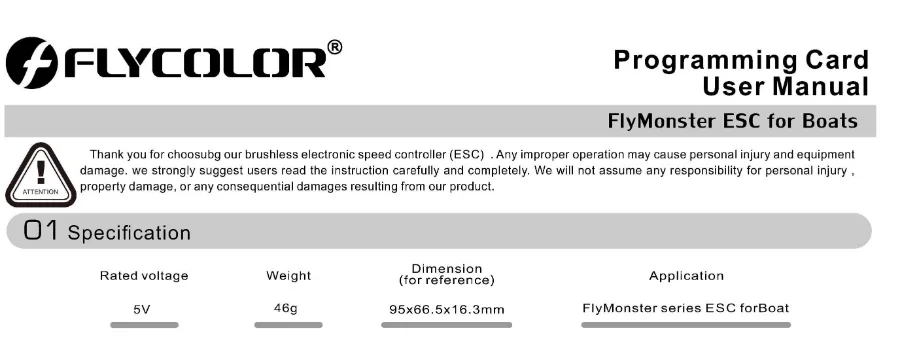

User Manual
