NiMh NiCad 2-10 cells lader 1 Amp

For Battery packs 2.4V - 12V (2-10 Cells Pack).
Input: AC 100-240V .EU type (norsk type)
Output: 2.8V-14V(0.5-1A).
Output pin: DC 5.5x2.1mm (Standard)/ Customized
Adapterkabler: 9 typer batteriplugger - se bilder for type plugger
Color: black
Size (LxWxH mm): 26x68.5(adaptor), 72.2x54x28(Package)
Weight:95g(sets)
Led indicate:
Red ----------------------------Charging
Blue ----------------------------Full
Red blue flashes once -------Stand by
Violet--------------------------Power on
Alternating red and blue flashing -----Polarity reversed
Red flash-------bad battery /short circuit

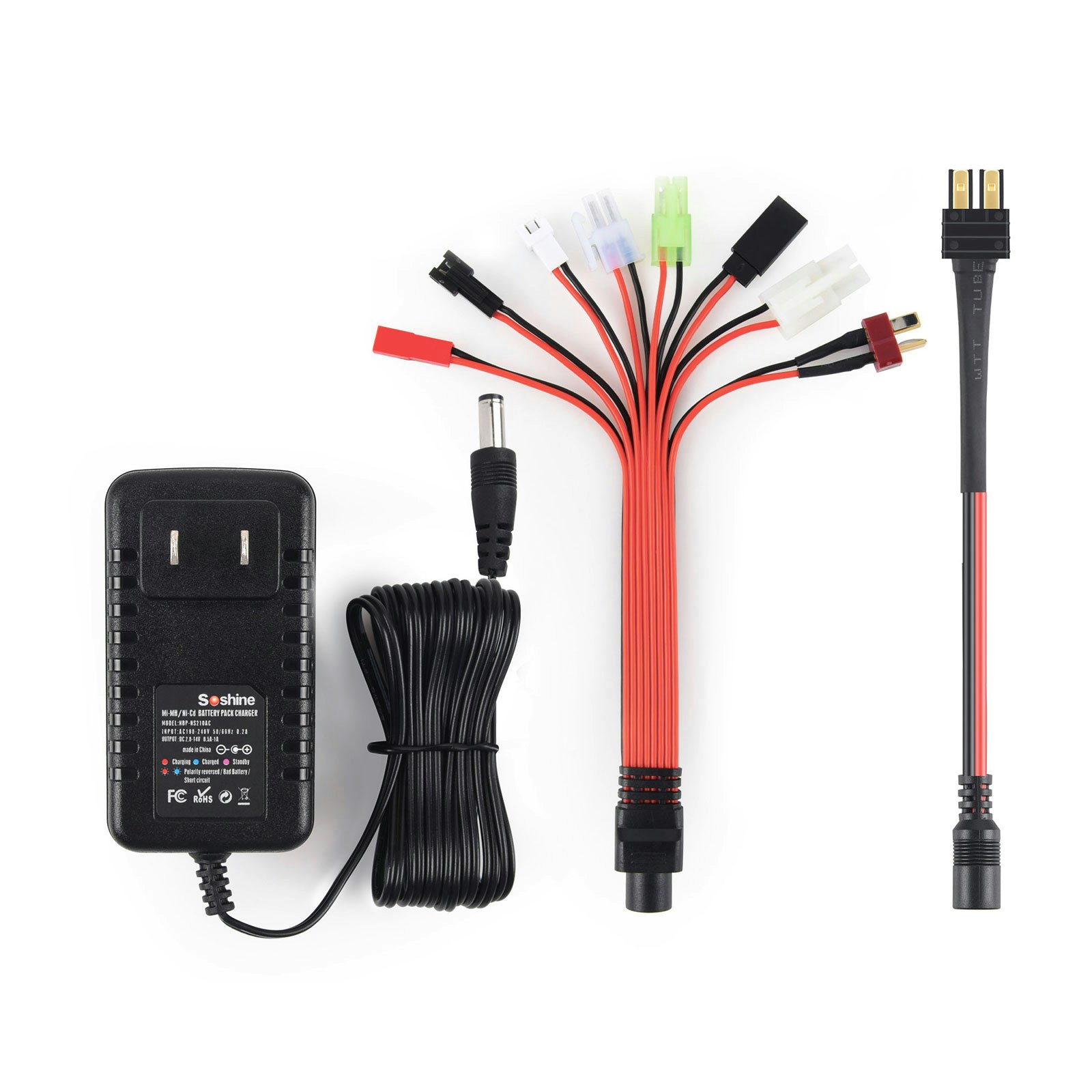

Lader for 2-10 cells (2,4 - 12 volt) NiMh og NiCAD samt blybatterier, komplett med en rekke overganger som passer flere typer batteriplugger. Se bildene. Bildene viser flatstikkere på 220 volt tilkoblingen, men laderen kommer med runde EU stikkere som passer i en vanlig norsk 220 volt strømkontakt. Laderen kutter automatisk når batteriet er fulladet.

Dette følger med:
1x NiMH / NiCd lader 220 volt EU (norsk) tilkobling
1x adapterkabler for 9 typer batterikontakter
1x bruksanvisning

Operation Instruction:

Connect battery pack to output connector and plug AC power source.

Make sure battery polarity is connected correctly (Red wire is positive).

Charger will detect battery voltage automatically, Red LED will be on during charging.

When battery is fully charged, current will reduce to trickle charging at 50mA, Blue LED will be on.

Battery will be charged at 0.5A-1A constant current (Auto selectable).

Approximate Charging time is about 3hrs for 3000.mAh battery,2hr for 1800.mAh battery.

The charger is designed for faster charging NiCd and NiMH battery packs from 2.4v to 12V.

Do not charge battery packs with voltage less than 2.4V or greater than 12V.
