| Type | Plug and play FPV receiver |
| Model | RC905 |
| Color | Black |
| Følsomhet | -36 dbi |
| Video format | NTSC - PAL auto |
| Size | 62 x 42 x 20 mm |
| Frekvenser | 32 kanaler |
| Antenne gain | 2 - 3 db |
| Antenne | RP-SMA female 50 ohm connector |
| Input voltage | 7 - 24 volt DC |
| Vekt | 52 gram |
| Bruksområde | Passer til alt av 5,8 Ghz FPV utstyr |
| Utstyrspakke | Følger med |
| manual | Følger med |

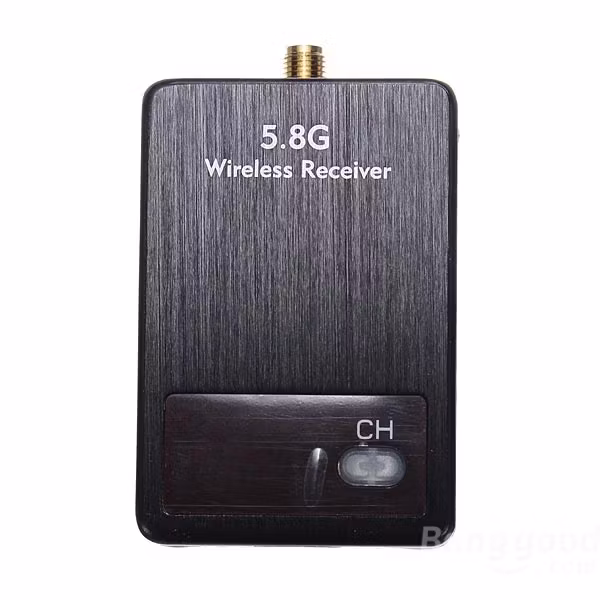

The RC905 Receiver is an upgrade of RC832, Small in size for easy integration into your ground station,
but big in quality and features. Extruded aluminum casing, Band and Channel LED indicators so it is easy to
know which frequency you are working on. New feature for connecting to RC Transmitter allows for remote channel setting.
Frequency Table 32 Channels:
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| A | 5865M | 5845M | 5825M | 5805M | 5785M | 5765M | 5745M | 5725M |
| B | 5733M | 5752M | 5771M | 5790M | 5809M | 5828M | 5847M | 5866M |
| C | 5705M | 5685M | 5665M | 5645M | 5885M | 5905M | 5925M | 5945M |
| D | 5740M | 5760M | 5780M | 5800M | 5820M | 5840M | 5860M | 5880M |
Package contains:
1x RC905 Receiver
1x Antenna

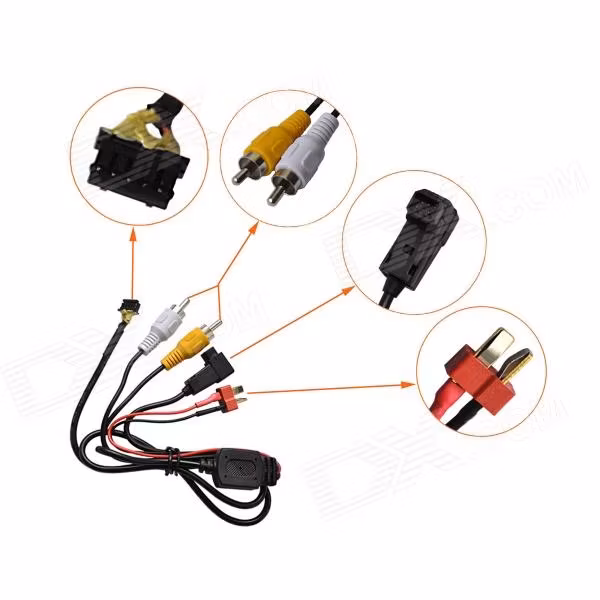

1x Cable
1x User Manual
