| Type | FPV video sender |
| Model | Mi600 |
| Color | Black - White |
| TX power | 600 mW |
| Video format | NTSC - PAL auto |
| Picture mode | Single/serial |
| Frekvenser | 32 kanaler |
| Antenne gain | 2 - 3 db |
| Antenne | RHCP |
| Input voltage | 7,4 - 28 volt DC |
| Micro SD | 8GB or above |
| Video bandvidde | 8M |
| Strømforbruk | 220 mA ved 12 volt DC |
| Dimension | 31 x 23 x 9 mm |
| Weight | 25 gram |
Kraftig liten lettvekts FPV sender komplett med antenne. En trenger bare å koble til kamera og strøm. Lang rekkevidde. Brukt sammen med våre FPV briller og spiral retningsantenne så blir rekkevidden flere kilometer.

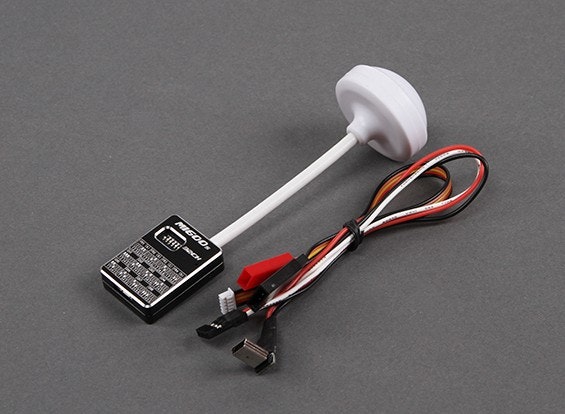

The Mi600s is the second generation of these fantastic mini 5.8GHz video transmitters. The range of frequencies has been increased to 32ch's which should be compatible with all the 5.8GHz receivers on the market. The body is machined from solid aluminum which solves the problem a lot of transmitters have of overheating, it also acts as an RF shield, it not only keeps it cool acting as a heatsink but looks cool as well. Another characteristic of these excellent transmitters is that they have a high class clover leaf antenna built in so there is no extra weight from an SMA connector or dbi loss.
Compared with earlier models and other video transmitters the Mi600s uses a 5 pin socket and a 5 pin power data flat cable which looks a lot neater and is more convenient to use. In addition it improves the stability of the 5V out that makes sure no interference is produced when supplying power to the camera.
The transmitter can accept a wide range of voltages from 7.4~28V directly and has a built in 5V BEC for the camera. The Mi600s is supplied with a GoPro video cable which is compatible with all GoPro cameras and others that use the same style of connector.
Features:
• Small, compact and lightweight
• Built in camera 5V BEC
• Wide voltage input (7.4~28V)
• 600mW of power
• Integrated circular polarized antenna
• CNC aluminum body
• Choice of 32 channels in 5.8GHz range
• Excellent ground range of 2~3km (even greater when used ground to air)
Frekvenser:
CH1: (FR1)5865 (FR2)5733 (FR3)5705 (FR4)5740
CH2: (FR1)5845 (FR2)5752 (FR3)5685 (FR4)5760
CH3: (FR1)5825 (FR2)5771 (FR3)5665 (FR4)5780
CH4: (FR1)5805 (FR2)5790 (FR3)5645 (FR4)5800
CH5: (FR1)5785 (FR2)5809 (FR3)5885 (FR4)5820
CH6: (FR1)5765 (FR2)5828 (FR3)5905 (FR4)5840
CH7: (FR1)5745 (FR2)5847 (FR3)5925 (FR4)5860
CH8: (FR1)5725 (FR2)5866 (FR3)5945 (FR4)5880
