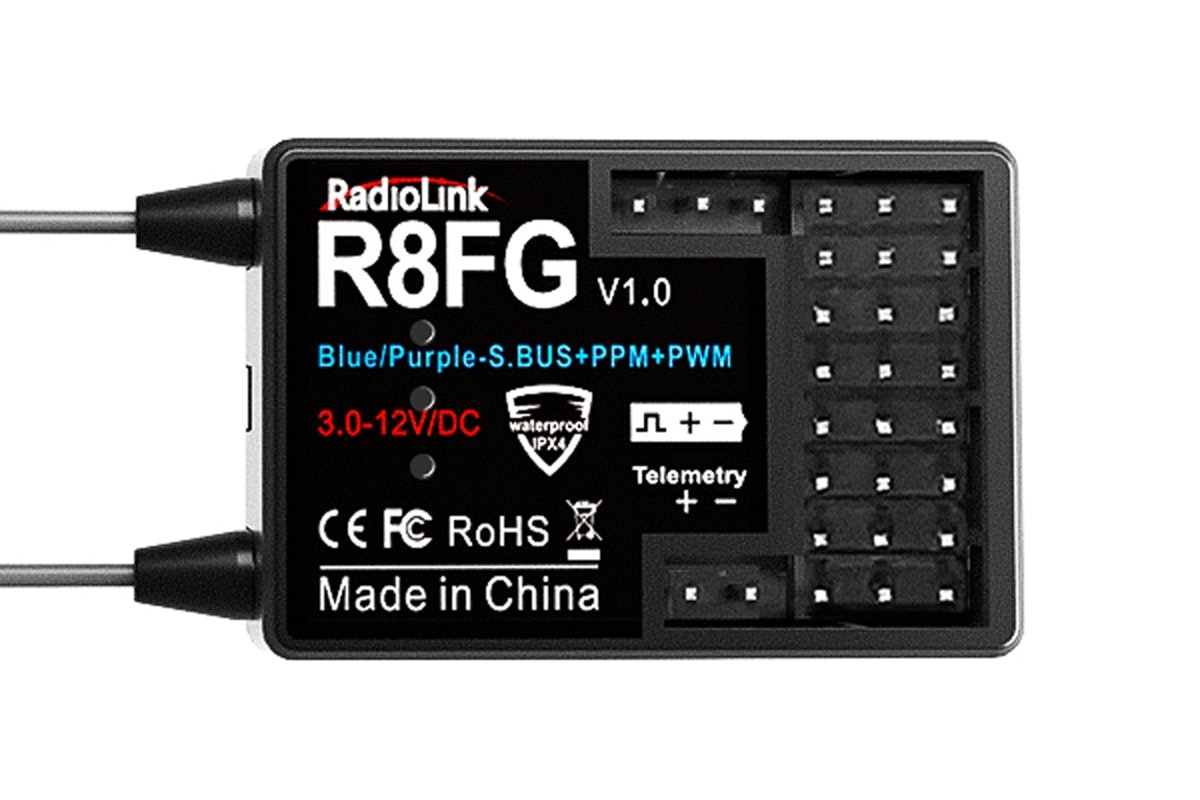

Radiolink R8FG 2,4 Ghz 8 Ch mottaker Gyro Telemetri SBUS/PWM/PPM

• Channels: 8
  Signals: SBUS&PPM&PWM
  Telemetri: Real-time built-in telemetry of model battery voltage, RSSI, and receiver voltage
  Gyro: Receiver with gyro integrated, customizable gyro sensitivity

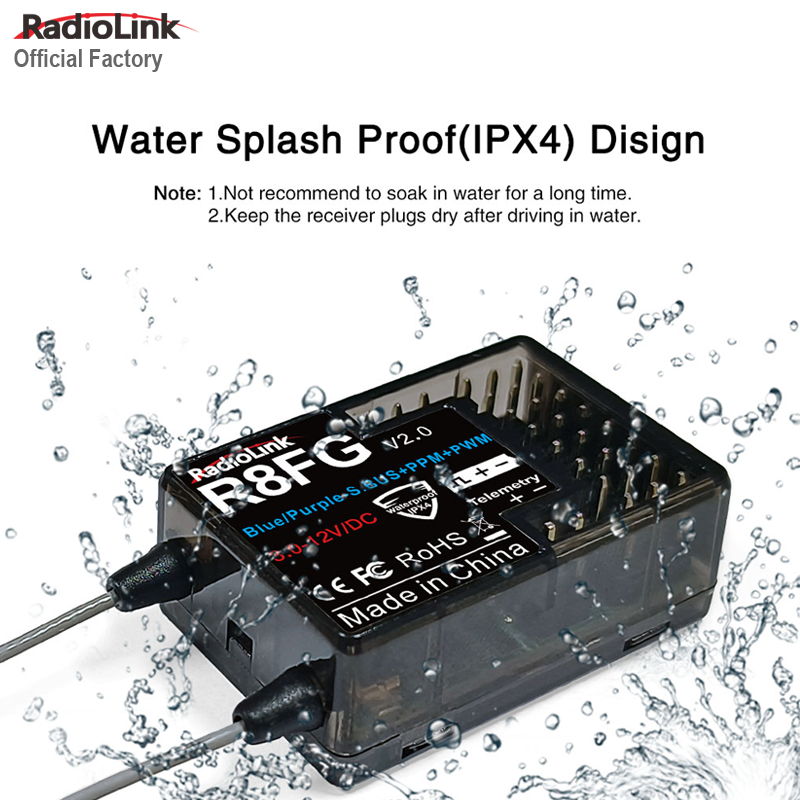

  Water splash proof: The waterproof grade is IPX4
  Control Distance: 600 meters. Over 1000 meter used with 8FB/T8S/RC4GS V2/RC6GS V2
  Spread Spectrum: FHSS, 67 channels pseudo random frequency hopping
  Antenna Length: 205 mm
  Work Current: 35 mA
  Power Supply: 4.6~12.0 volt DC
  RF Power: <10dbm
  Channel Resolution: 4096
  Frekvens band: 2.4GHz ISM band (2400MHz~2483.5MHz)
  Size: 35 x 24 x 13.5 mm
  Weight: 10,5 gram
  Model Application: Car (Including Crawlers/Tanks/Caterpillars)/Boat/Robot
  Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) /T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)

R8FG 8CH Receiver Features:

Excellent Anti-interference: With pseudo random FHSS algorithm, which makes R8FG with excellent anti-interference ability, control distance up to 1900 feet (600 meters). 1000 meter on water.
Real-time Telemetry: telemetry feature can provide real-time vital information like vehicle's battery voltage, RSSI signal and more, avoiding the battery over-discharge and damage.
Integrated Gyro: built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by transmitter, which fits for drifting and on-road cars.
Push to Bind: No need bind plug and any setting, only press bind button for 1 second after power up controller and receiver. High resolution ratio of 4096, stable signal and fast response.
Anti-polarity Protection: With reverse polarity protection, not damage the receiver even you insert wrong polarity. 4.6-10v DC support high voltage servo.
Small Size with Compact Case: Only 30*18.5*11.5mm small size and 6g lightweight.

How to bind with transmitter:

1. Put the transmitter and the receiver close to each other within 50 cm.
2. Turn on the transmitter, then power on the R8FG.
3. There is a black button on the R8FG, press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.
Attention: R8FG default have not turn on the gyro function. Make sure the R8FG keep motionless when power on it, because the R8FG will do the self-test. R8FG with two indicate LED, green LED on indicate normal working mode while both green and red LED on indicate gyro function working mode.

Package Included:

R7FG Receiver x 1
Voltage telemetry cable x1
