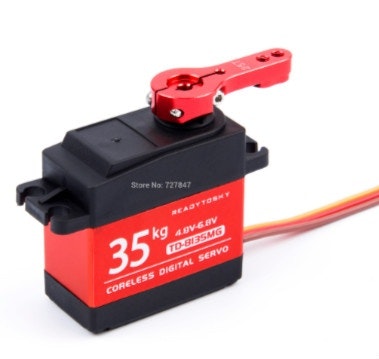

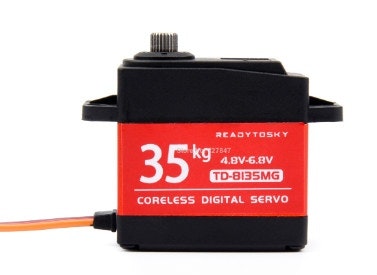

35kg TD8135MG High Torque Coreless Motor Waterproof Digital Servo







Weight:                    56 gram
Dimensions:            40 x 20 x 45 mm
Monteringshull:      40 x 20 mm
Torque:                     33,5 kg/cm(at 4,8V) 35 kg/cm(at 6,0V)
Speed:                      0.18 sec/60°(at 4,8V) 0.14 sec/60°(at 6,0V)
Motor type:             Carbon brush
Bearing:                   Ball bearing 2 pcs
Gear type:                5 pcs all metal
Working voltage:    4,0v~7,2 volt
Operating temp:    -15℃- +60℃
Standard signal:      500~2000 microseconds
Working angle:       180°
Current:                   140 - 300mA/stall 3000 mA
Dead zone setting: 5 usec
Cable length:          320 mm

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Connector Wire Length 320mm
CE &RoHS approved

Meget god kvalitets 35 kg vanntett metallgear heldigital coreless servo med strambar aluminiumsarm.

Control Specification:

1.Command signal: Pulse width modification
2.Amplifier type: Digital controller
3.Pulse width range: 500~2500usec
4.Neutral position: 1500usec
5.Running degree: 180°±3°(when 500~2500usec)
6.Dead band width: 5 usec
7.Rotating direction Counterclockwise: (when 1000~2000usec)
