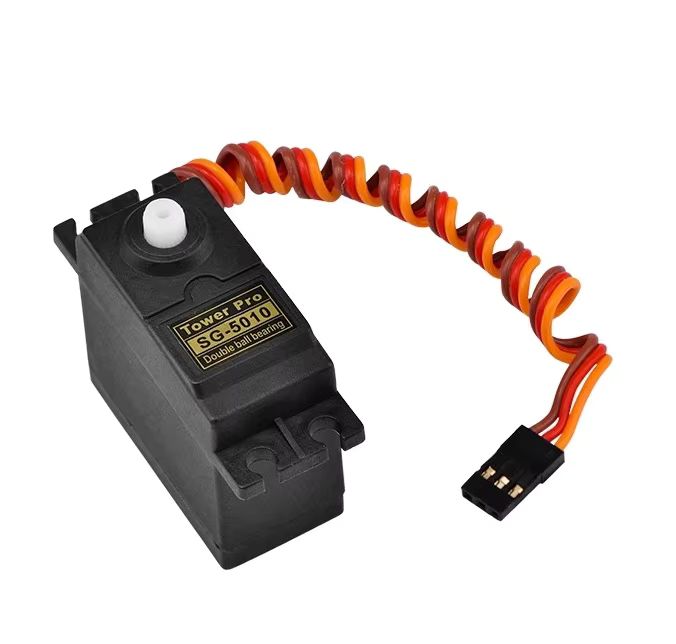

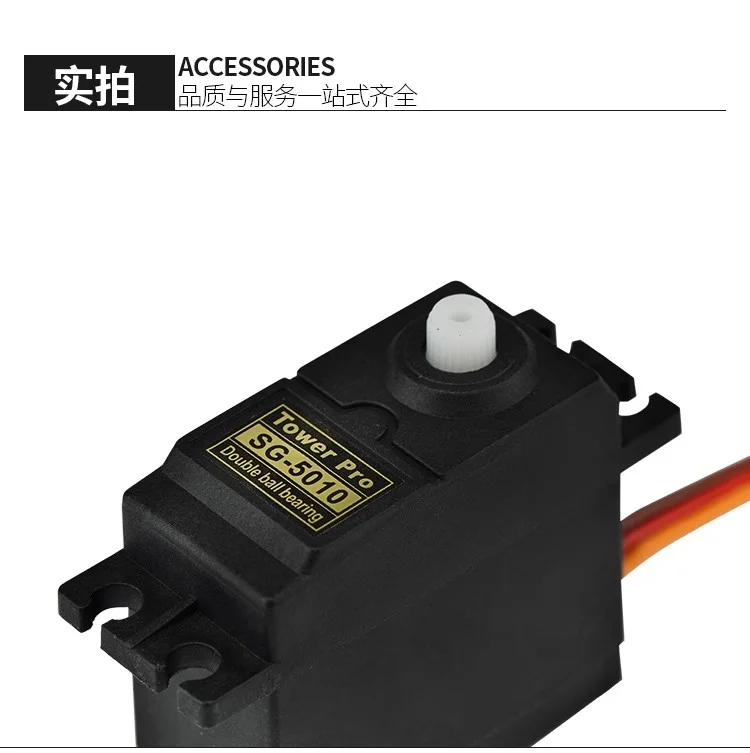

Tower Pro SG-5010 analog servo

Weight:                    39 gram
Dimensions:            40,4 x 19,9 x 37 mm
Monteringshull:      40,4 x 20 mm
Torque:                     8 kg/cm(at 4,8V) 11 kg/cm(at 6,0V)
Speed:                      0.14 sec/60°(at 4,8V) 0.11 sec/60°(at 6,0V)
Motor type:             DC coreless
Bearing:                  Ball bearing
Gear type:                POM
Working voltage:    4,0v～8,4 volt
Operating temp:    -15℃- +60℃
Standard signa       1000～2000 microseconds
Working angle:       180°
Current:                   <300mA
Dead zone setting: 5 usec
Cable length:          300 mm
Servo Plug: JR (Fits JR and Futaba)


Prisbillig, robust 39 grams analog servo med coreless DC motor, kulelager og lavt strømforbruk passende til middels og store modeller.
