20kg TD8120MG High Torque Coreless Motor Waterproof Digital Servo

Weight:                    62 gram

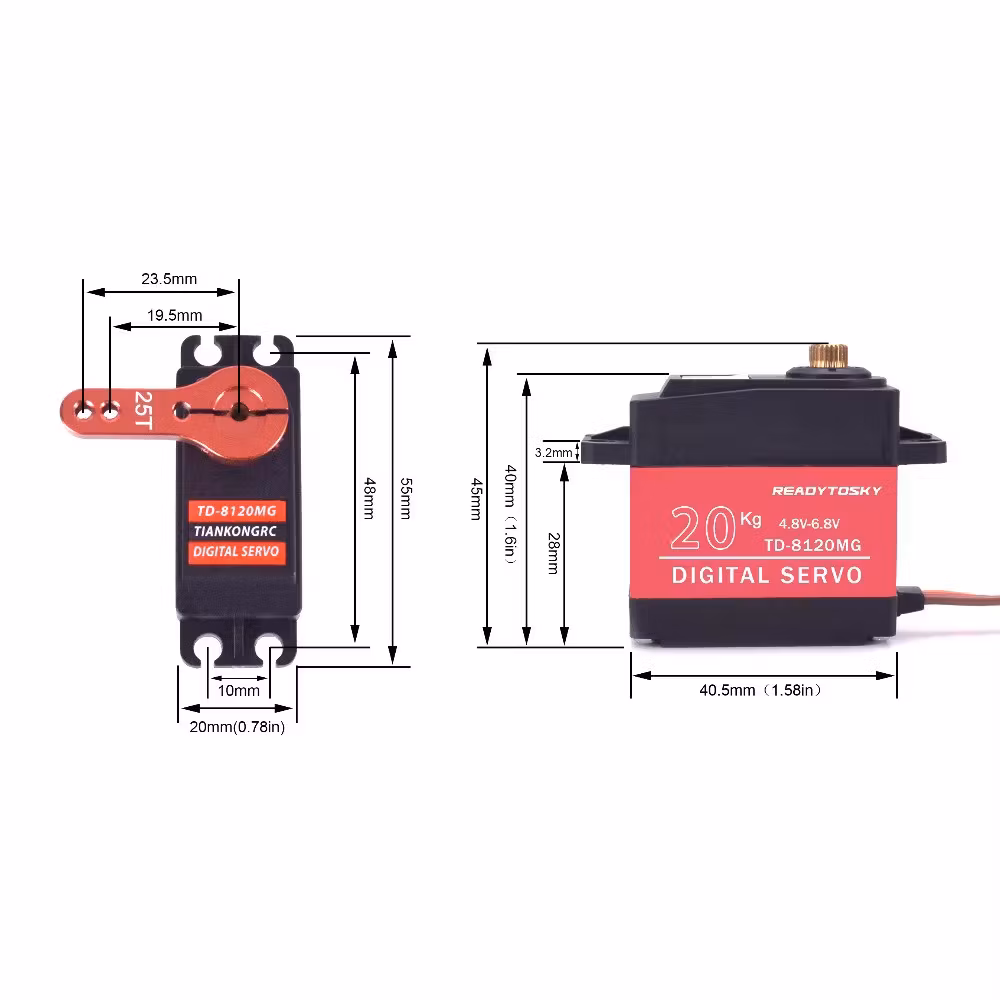

Dimensions:            40,5 x 20 x 45 mm
Monteringshull:      40,4 x 21 mm
Torque:                     17,2 kg/cm(at 4,8V) 20,3 kg/cm(at 6,0V)
Speed:                      0.15 sec/60°(at 4,8V) 0.13 sec/60°(at 6,0V)
Motor type:             Cored
Bearing:                   Ball bearing 2 pcs

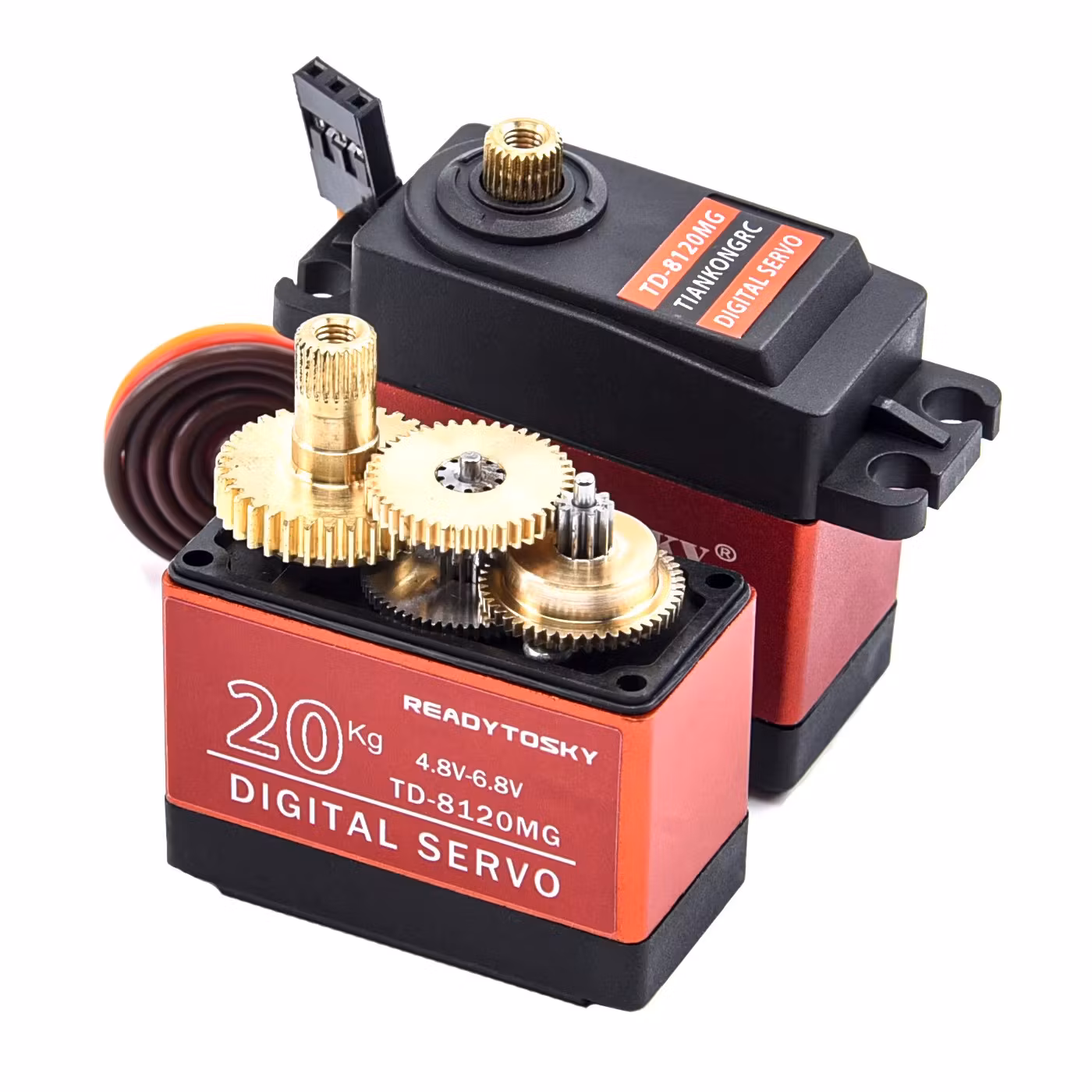

Gear type:                5 pcs all metal
Working voltage:    4,8v～6,8 volt
Operating temp:    -15℃- +60℃
Standard signal:      500～2000 microseconds
Working angle:       180°
Current:                   140 - 300mA/stall 3000 mA
Dead zone setting: 5 usec
Cable length:          320 mm

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Connector Wire Length 300mm
CE &RoHS approved

Meget god kvalitets 20 kg vanntett metallgear heldigital coreless servo med strambar aluminiumsarm.

Apply Environmental Conditon:

1.Storage Temperature Range: -30°C～80°
2.Operating Temperature Range: -25°C～70°C

Standard Test Environment:

1.Temperature Range: -25°C～70°C
2.Humidity Range: 65%±10%
