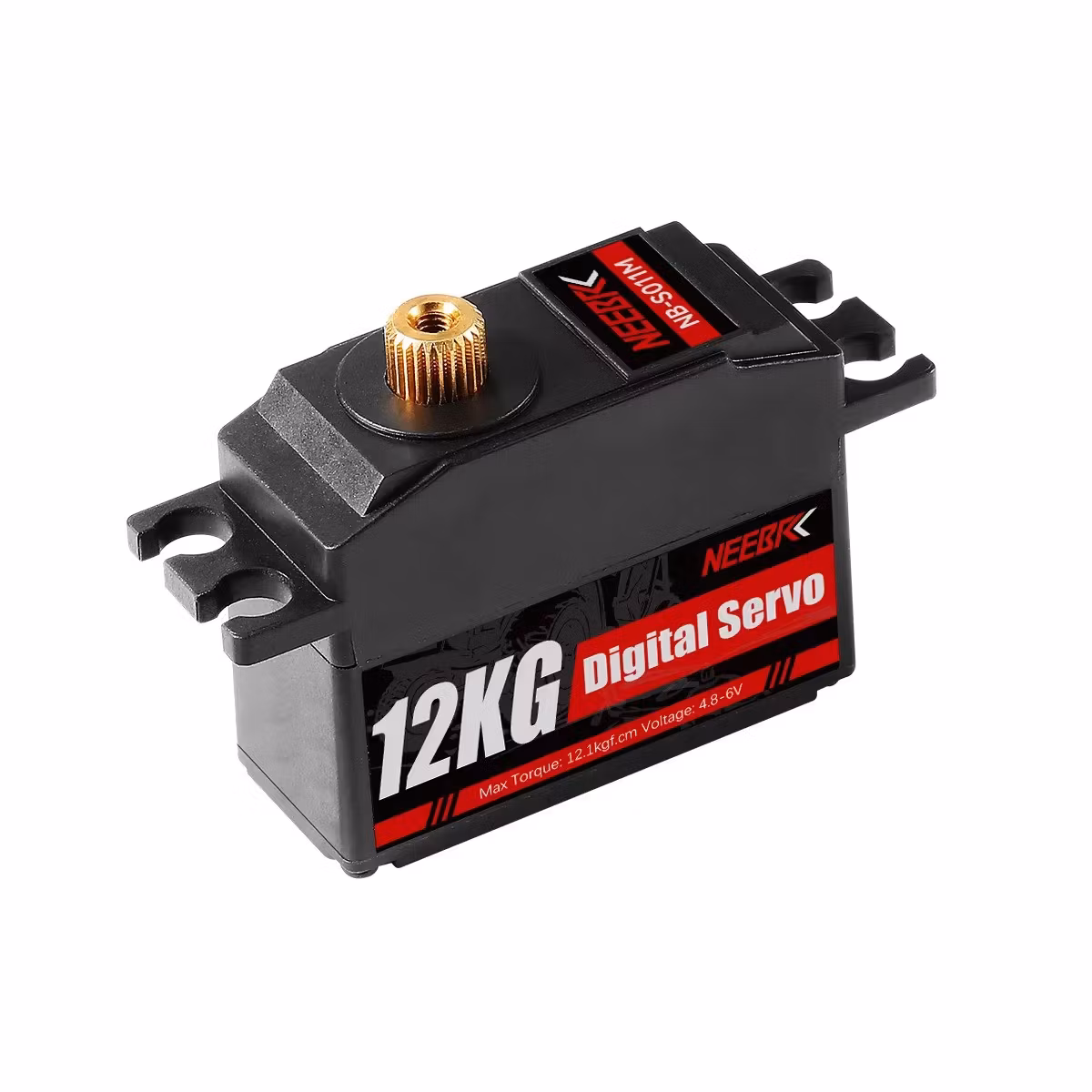

12 kg Lavprofil High Torque Waterproof Digital Servo

Operating Voltage :   4.8~6.0V DC
Max. Torque :              12.1kgf·cm
No Load Speed :        4.8V≤0.16sec/60°; 6.0V≤0.14sec/60°
Stall Current:              4.8V ≦1900mA;6.0V≦2500mA
Current* (No Load): 4.8V ≦120mA;6.0V≦130mA
Travel Angle:              180° ±10° (500~2500 us)
Dead Band Width:    ≤ 1us
Safety Limit Angle:  360°
Interface:                     PWM
Motor Type:                Core motor
Case Material:           ABS
Gear Set Material :   Metal gear
Weight:                        21g
Size:                              42.3 × 15.4 × 32.1mm (lengde - bredde - høyde)
Length of cable:     JR 250MM±5mm (exposed without plug)

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Connector Wire Length 250mm
CE &RoHS approved

Meget god lavprofil kvalitets 12 kg vanntett metallgear heldigital servo.

Apply Environmental Conditon:

1.Storage Temperature Range: -30°C～80°
2.Operating Temperature Range: -25°C～70°C

Standard Test Environment:

1.Temperature Range: -25°C～70°C
2.Humidity Range: 65%±10%

Features:

High performance digital standard
Low noise and long service life
Small volume and large torque
