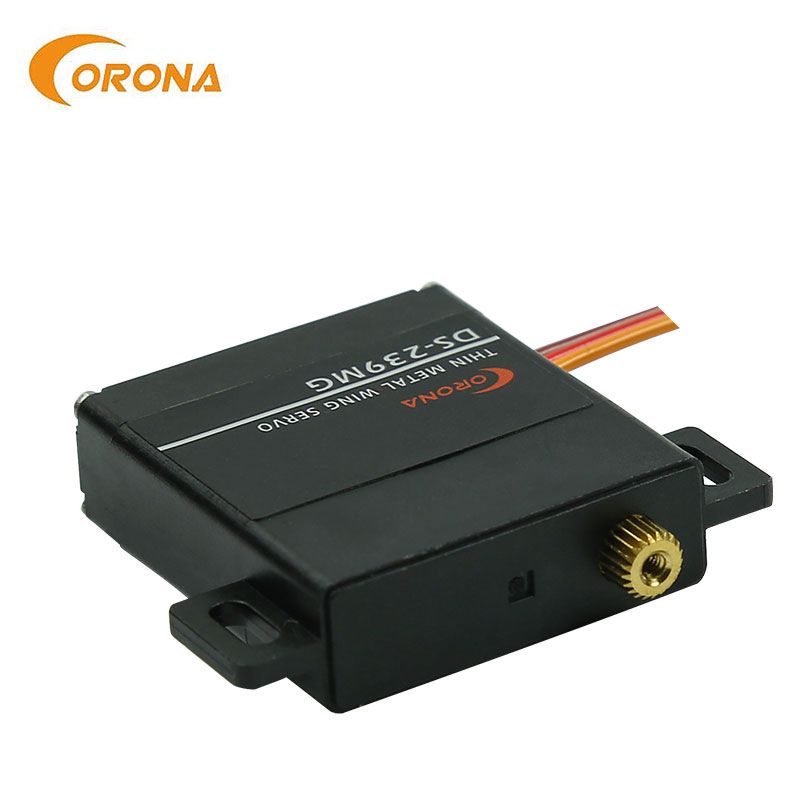

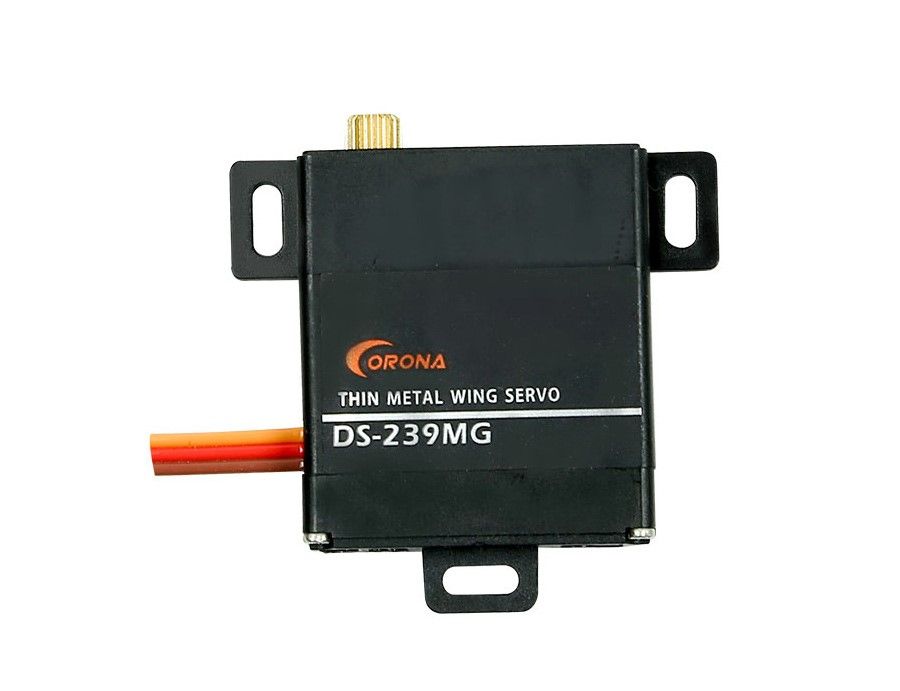

Corona DS239MG Digital Metal Gear Slim vingeservo 4.6kg







Model:                       DS-239MG
Operating Voltage: 4.8V / 6.0V
Operating Current: 300mA / 400mA
Operating Speed:    0.15sec.60°/ 0.14sec.60°
Stall Torque:             4.0kg.cm / 4.6kg.cm
Size:                           30X10X34.5mm
Weight:                      22 gram
Dead Band:               ≤3uSec
Operating Travel:    40°/one side pulse traveling 400us
Potentiometer:         3 slider/Direct Drive
Ball bearing:             MR85x2
Gear:                           Metal
Gear Type:                 Digital
Motor:                         Brushed
Connector wire:        215mm
Temp Range:             20°C+60°C
Spline count:             21

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Connector Wire Length 210mm
CE &RoHS approved

Rimelig god digital metal gear vingeservo. Tykkelse kun 10 mm. Trepunkts innfesting for god stabilitet.

Apply Environmental Conditon:

1.Storage Temperature Range: -30°C~80°C
2.Operating Temperature Range: -25°C~70°C

Standard Test Environment:

1.Temperature Range: -25°C~70°C
2.Humidity Range: 65%±10%
