55kg High Torque Coreless Motor Waterproof Digital Servo
-
798,- - 555,-

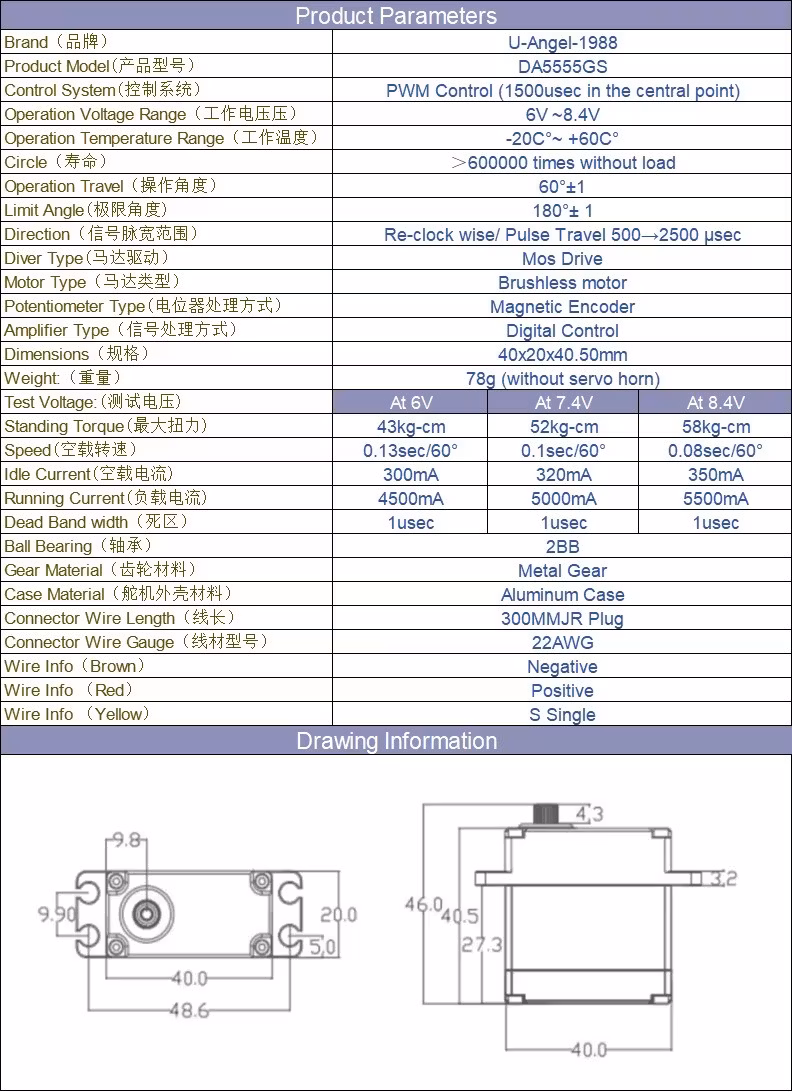

Control System: PWM Control (1500usec in the central point)
Operation Voltage Range: 6V ~8.4V
Operation Temperature Range: -20C°~ +60C°
Circle: >600000 times without load
Operation Travel: 60°±1
Limit Angle: 180°± 1
Direction: Re-clock wise/ Pulse Travel 500→2500 μsec
Diver Type: Mos Drive
Motor Type: Brushless motor
Potentiometer Type: Magnetic Encoder
Amplifier Type: Digital Control
Dimensions: 40x20x40.50mm
Weight: 78g (without servo horn)
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Connector Wire Length: 320mm
CE &RoHS approved
Meget god kvalitets helmetall 55 kg IP67 100% vanntett metallgear heldigital coreless servo med strambar aluminiumsarm.
Control Specification:
1.Command signal: Pulse width modification
2.Amplifier type: Digital controller
3.Pulse width range: 500~2500usec
4.Neutral position: 1500usec
5.Running degree: 180°±3°(when 500~2500usec)
6.Dead band width: 5 usec
7.Rotating direction Counterclockwise: (when 1000~2000usec)
