Futaba S3003 analog servo

Weight:                    38 gram

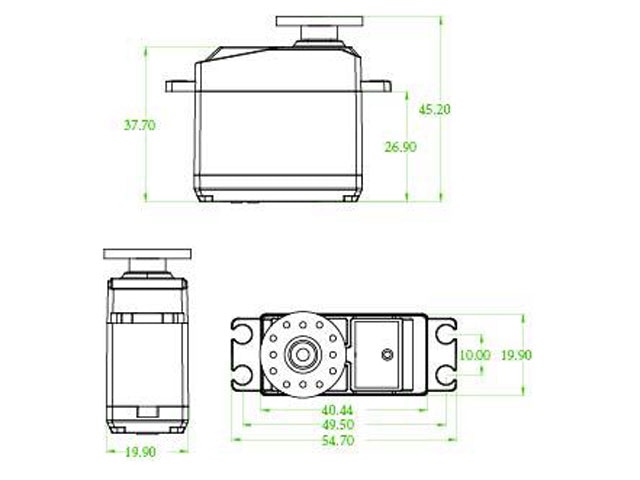

Dimensions:            40,4 x 19,9 x 37 mm
Monteringshull:      40,4 x 20 mm
Torque:                     3,5 kg/cm(at 4,8V) 3,9 kg/cm(at 6,0V)
Speed:                      0.12 sec/60°(at 4,8V) 0.11 sec/60°(at 6,0V)
Motor type:             DC coreless
Bearing:                   POM
Gear type:                POM
Working voltage:    4,0v～6,0 volt
Operating temp:    -15℃- +60℃
Standard signa       1000～2000 microseconds
Working angle:       180°
Current:                   <300mA
Dead zone setting: 5 usec
Cable length:          270 mm
Servo Plug: JR (Fits JR and Futaba)


Prisbillig, robust 38 grams analog servo med coreless DC motor og lavt strømforbruk passende til middels og store modeller.
