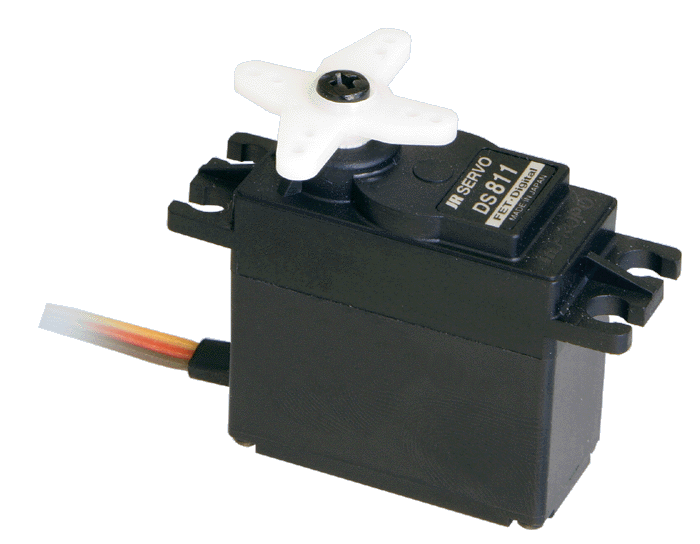

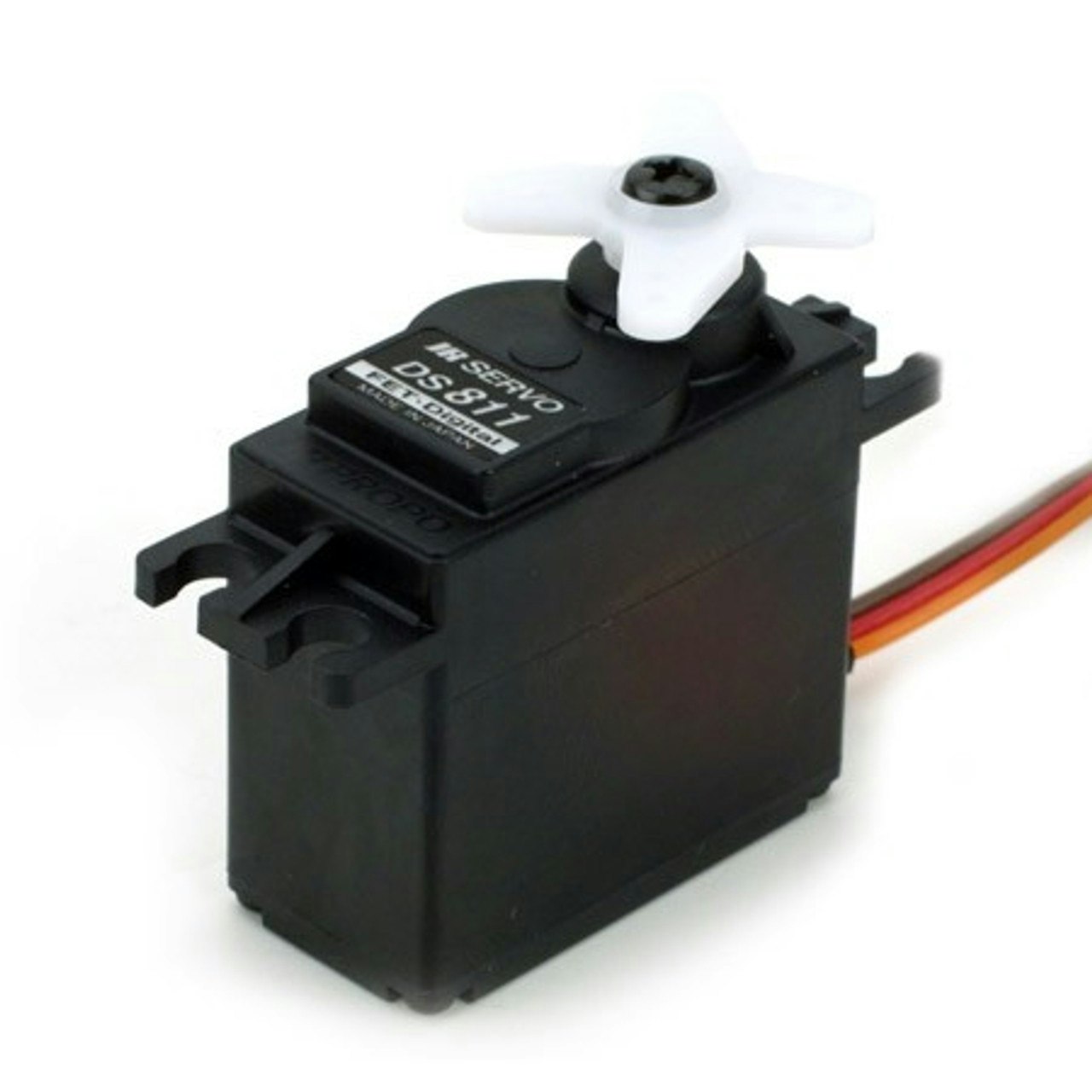

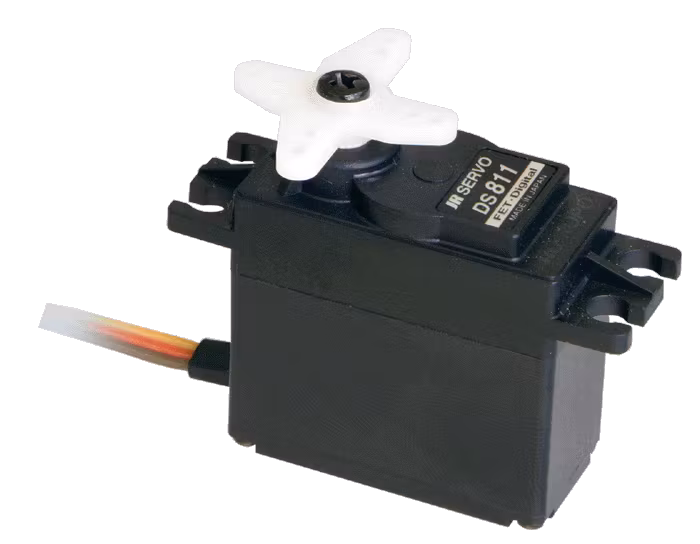

JR Propo DS811 Digital Servo 1BB

Weight:                    40 gram

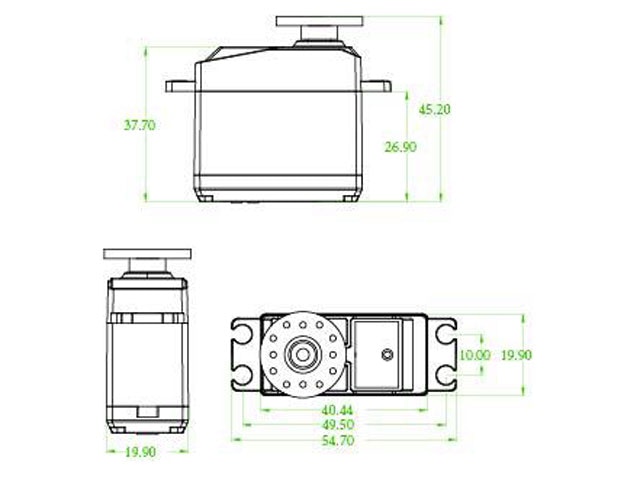

Dimensions:            37,8 x 19,1 x 38,6 mm
Monteringshull:      40,4 x 20 mm
Torque:                     3,9 kg/cm(at 4,8V) 4,75 kg/cm(at 6,0V)
Speed:                      0.18 sec/60°(at 4,8V) 0.15 sec/60°(at 6,0V)
Motor type:             DC brush
Bearing:                  1 stk ball bearing
Gear type:                POM
Working voltage:    4,0v～6,0 volt
Operating temp:    -15℃- +60℃
Standard signal:       1000～2000 microseconds
Working angle:       180°
Current:                   <300mA
Dead zone setting: 5 usec
Cable length:          250 mm

Servo Plug: JR (Fits JR and Futaba)

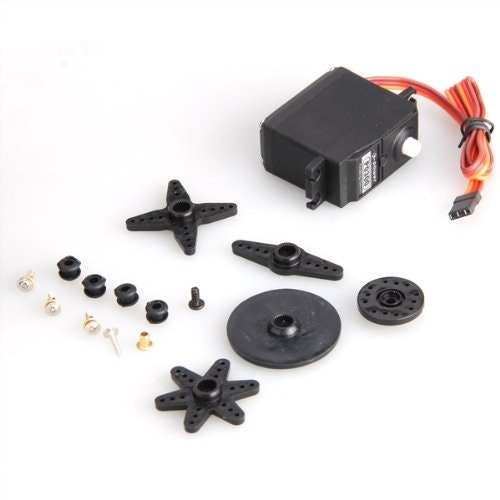

servo arms &screws included and fit with Futaba servo arm
It’s universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
CE &RoHS approved

Original JR Propo servo Made in Japan. Ikke kinamade.

Robust 40 grams digital servo fra JR med brush DC motor og lavt strømforbruk passende til middels og store modeller.
