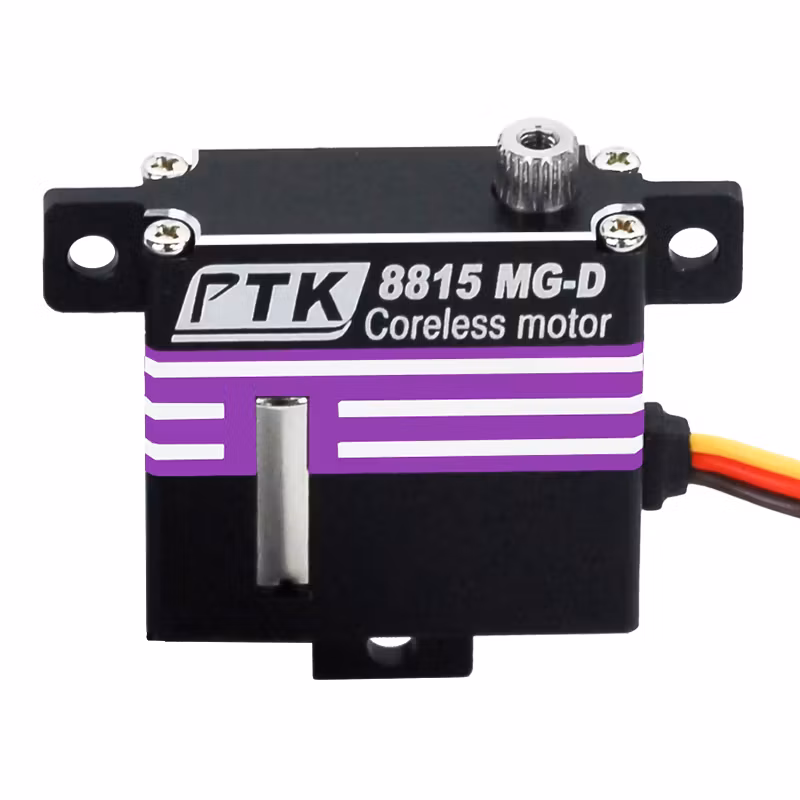

PTK 8815 MG-D Digital Metal Gear Slim vingeservo 15 kg

Model:                           PTK 8815 MG-D
Operating Voltage:   4.8 - 8,4 volt
Operating Current:  180 - 400 mA
Operating Speed:     0.091 sec. 4,8 volt/ 0.058 sec. 8,4 volt
Stall Torque:               6,8 kg 6 volt/ 7,9 kg 7,4 volt

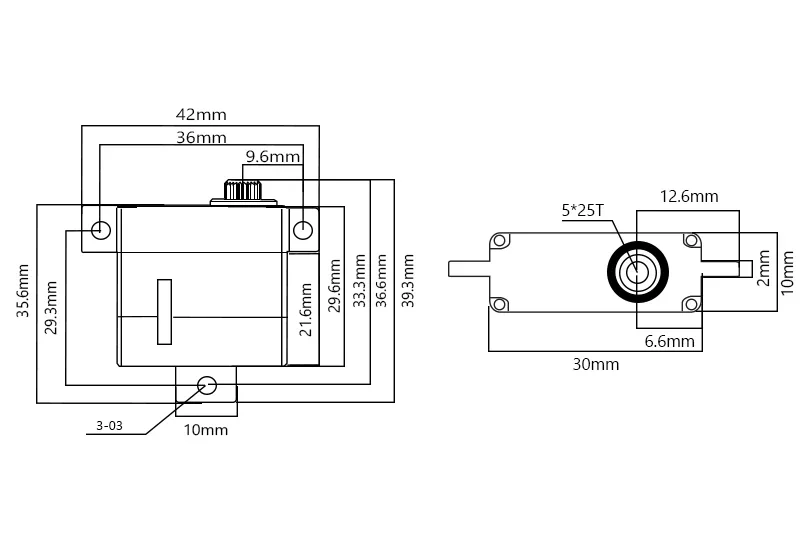

Size:                               30X10X29,6 mm
Weight:                         23,5 gram
Dead Band:                ≤2uSec adjustable
Operating Travel:    40°/one side pulse traveling 400us
Potentiometer:         3 slider/Direct Drive
Ball bearing:              MR85x2

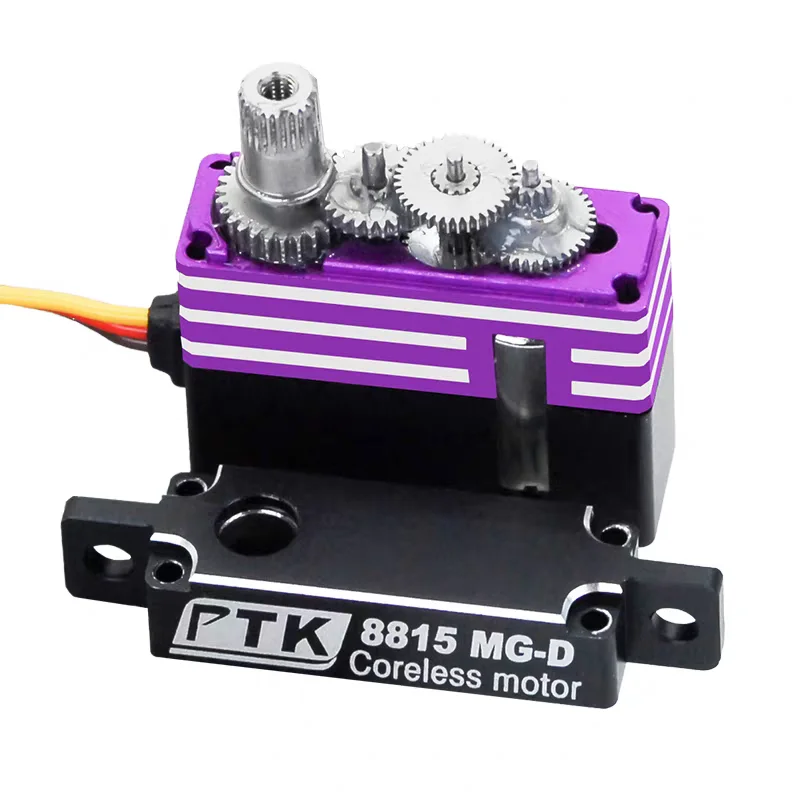

Gear:                             Metal
Gear Type:                  Digital
Motor:                          Coreless
Connector wire:       220 mm
Temp Range:             20°C+60°C
Control system:       +Pulse with control
Working frekvens:   1520 μs / 333 hz
Spline count:            21

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Connector Wire Length 215mm
CE &RoHS approved

Meget kraftig god digital metal gear vingeservo for 4,8 - 8,4 volt (BEC, batteri etc). Tykkelse kun 10 mm. Trepunkts innfesting for god stabilitet.

Apply Environmental Conditon:

1.Storage Temperature Range: -30°C～80°C
2.Operating Temperature Range: -25°C～70°C

Standard Test Environment:

1.Temperature Range: -25°C～70°C
2.Humidity Range: 65%±10%

Features:
1.Digital servo provides higher precision and better fixed force.
2.High torque up to 15 kg.cm at 8.4V.
3.Comes with coreless motor and metal gear.
4.Fine workmanship ensures the longevity of the product.
5.Light weight and mini size. Suitable for RC Fixed Wing.

Descriptions:
1.This Digital servo is suitable for most RC Fixed Wing.
2.With high quality ball bearing, large torque, it is a good choice.

Package included:
1 * PTK 8815 MG-D Digital Metal Gear Slim vingeservo
1 * Accessories bag
